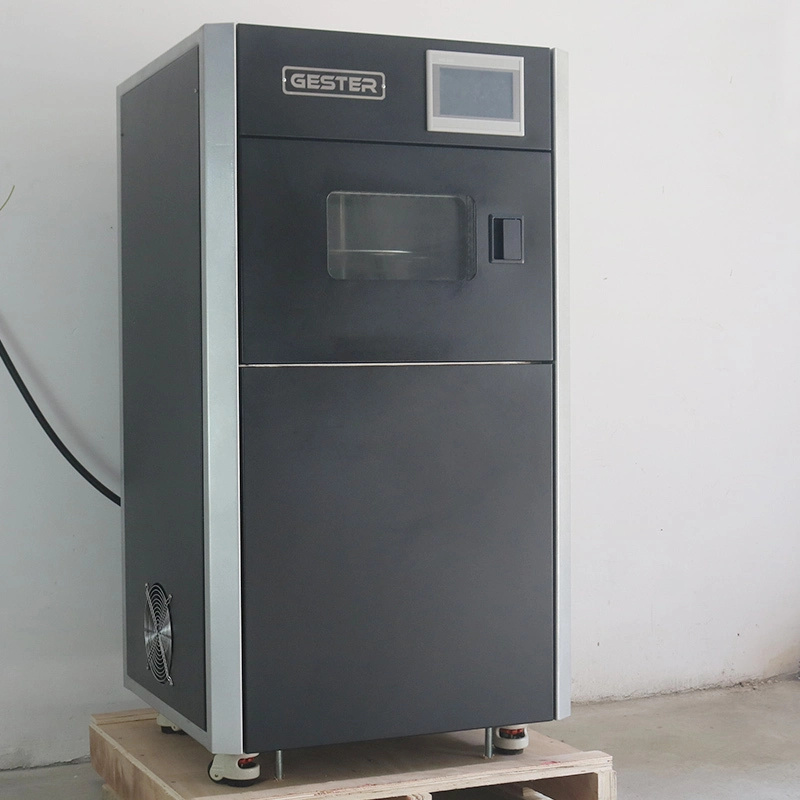

ASTM E96 Fabric Water-vapour Transmission Tester GT-C28
Application
To test the water vapour transmision of various fabric (moisture permeable fabric included) and non-woven fabric such as bat wool, space cotton, sportswear fabric etc.
Feature
- 1.Apply to various standards and testing methods.
- 2.Rotary specimen holder, the speed can be adjusted. The test is much evenly than fixed specimen holder.
- 3.The wind speed can be adjusted. Adopt import air velocity transducer to demarcate which can ensure the speed.
- 4.The temperature and humidity control use RID algorithm, which fluctuation is small and can prevent the overshoot. The temperature and humidity calibration function can avoid the sensor bias caused by long time using.
- 5.High accuracy temperature and humidity sensor makes the test result reliable and precise.
- 6.chip control, color touchscreen operation,modular design, temperature and humidity digital setting, intelligent control and real-time display the temperature, humidity and time.
- 7.Water vapor transmission rate testing equipment can input parameter on the touch screen and calculate the WVT, WVP, PV value.
8.The water vapour transmission rate tester equipped with upper computer software, can record the temperature and humidity curve, be easy to calculate and print mass data report.
Product Parameters
Key Specification
Model | GT-C28-1 | GT-C28-2 |
Water vapour permeability cups | 1 layer, 8pcs | 2 layers, 8pcs/layer |
Test chamber temperature | RT~50℃ | |
Resolution | 0.1℃ | |
Accuracy of temperature | ±0.5℃ | |
Weighing function | No | |
Testing method | Upright cup method | |
Humidity of testing chamber | 40%RH~95%RH | |
Resolution | 0.1%RH | |
Accuracy of humidity | ±1%RH | |
Testing time | 0.1～999.9h (can be changed into “min”) | |
Speed of circulating air | 0.1～0.8m/s | |
Breathable area | 2826mm² (∮60mm GB12704) or 4534mm² (∮76mm ASTM E96) Or 5408mm² (∮83mm BS 7209) or 2826mm² (∮60mm JIS L1099) | |
Dimension | 740×670×1185mm | 1050×635×1170mm |
Weight | 200kg | 250kg |
Power supply | AC 220V 50/60HZ 4KW | AC 220V 50/60HZ 4KW |
Standards | GB/T12704, GB/T21655, ASTM E96 (Procedure A, B, C, D, E), JIS L1099, BS 7209, ISO 8096 | |
Accessories
Standard accessories | 1set | Soak Cup(GB Standard, and can be changed into other standards according to customer’s requirements) |
1pc | Power Line | |
Optional accessories | 1set | Soak Cup (ASTM standard) |
1set | Soak Cup (BS standard) | |
| 1set | Soak Cup (JIS standard) |
