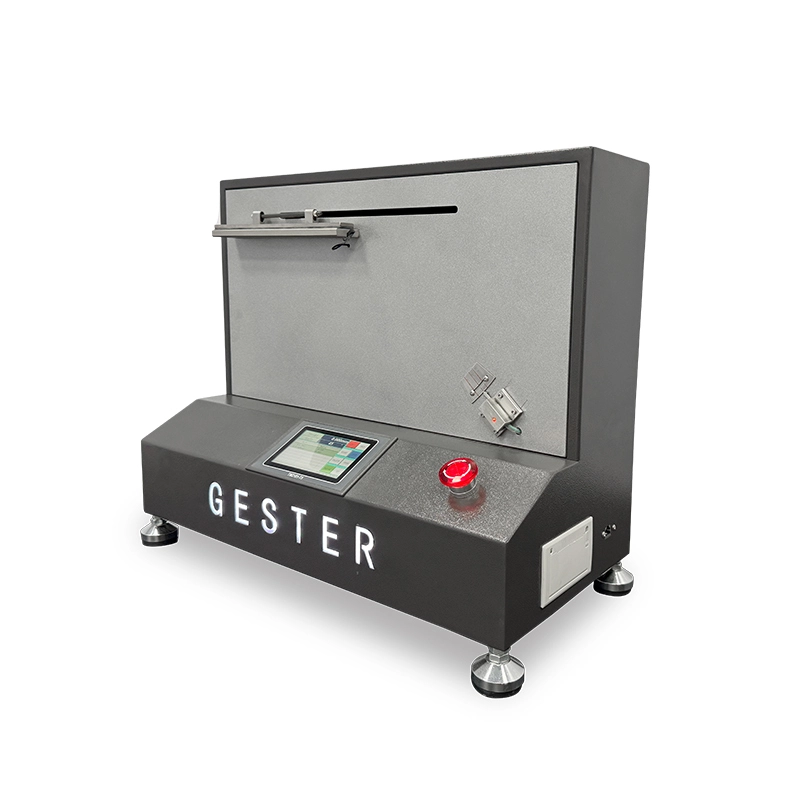

Automatic Fabric Stiffness Tester GT-C70A
About Us
Automatic Fabric Stiffness Tester GT-C70A to measure the fabric stiffness, in addition to determine the bending height, flexural rigidity and bending modulus of fabrics by simple procedures and calculations.
This fabric stiffness testers is mainly used in: cotton, wool, silk, hemp, chemical fiber and other types of woven fabric, knitted fabric and the generality of the non woven fabric, coated fabrics and other textiles, but also suitable for paper, leather, thin film flexible material.
Standards
ZB WO4003, GB/T18318, ASTM D 1388, ISO 9073-7, BS EN22313
Key Specification
Model | GT-C70A |
Extending The Length Of The Range | 5-205mm |
Measurement Accuracy | 0.1mm |
The Angle Of Bevel | 41.5 Degree (Adjustable) |
The Sample Size | 25 x 250mm |
The Sample Press Plate | 25 x 250mm |
The Sample Press Plate Speed | 0.3cm/s, 0.4cm/s, 0.5cm/s |
Power Supply | 1∮ AC 220V 50/60Hz |
Dimensions ( L x W x H ) | 470 x 290 x 405mm |
Weight | 18kg |
Standards | ZB WO4003, GB/T18318, ASTM D 1388, ISO 9073-7, BS EN22313 |
Accessories
Standards accessories | 1pc | Computer Controlled Software |
| 1pc | PC Cable |
| 1pc | Power Line |
