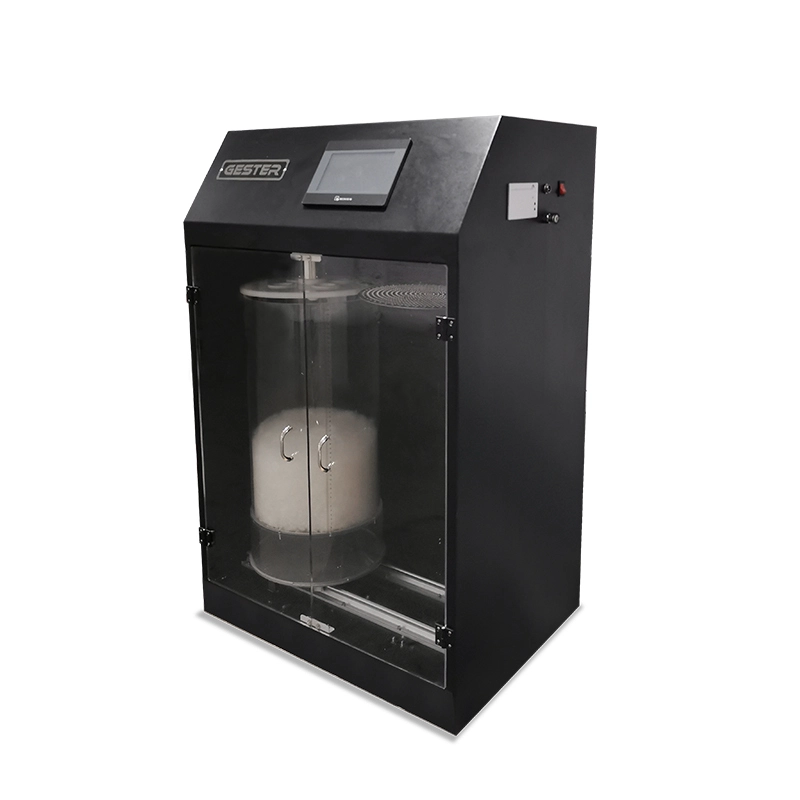

Automatic Feather & Down Filling Power Testing Equipment GT-C43B
Application
It is applied to determine the filling power of feather and down, and product filling materials.
Feature
- 1.Feather & Down Filling Power Tester adopts color touch screen display, man-machine dialogue and convenient operation.
- 2.Automatic Feather & Down Filling Power Testing Equipment: Unique filter ventilation design, automatic switch between blowing and sucking positions, to ensure that feathers do not fly around, prevent the health of operators.
- 3.The test speed can be set, suitable for different standards, and the transmission structure adopts servo motor system, which makes the height precision of the bulkiness more precise.
- 4.The original zero position system ensures the accuracy of the data.
- 5.Adopt high-precision sensor, ARM 32-bit microprocessor, AD company 16-bit A/D acquisition level, accurately sense the position of the pressure plate, accurately calculate the test results, can be applied to multiple standards.
- 6.The automatic wind speed design system ensures that the feather is in the natural fluffy state, which makes the data of each measurement have better authenticity and reproducibility.
- 7.The test process is completed with one click, without manual replacement of the test bucket and timing measurement.
8.Fully automated testing, no need to manually replace the test bucket.
Product Parameters
Key Specification
Model | GT-C43B | |
Measurement Accuracy | 0.1mm | |
Height | 750 mm, Conforms to New National Standard. | |
Test Speed | 0~1000 mm/min, Can Be Set | |
Cylinder inner diameter | Standard Accessories | Ф288 mm(BSEN12130,IDFB) |
Option Accessories | Ф290 mm (JISL 1903),Ф240 mm (FZ/T80001) | |
Test Platen | Standard Accessories | 94.25g: Ф284 mm(BSEN12130, IDFB), material: aluminium sheet |
Option Accessories | 120 g: Ф285 mm (JISL 1903), 68.4g :Ф 240mm (FZ/T80001) material: aluminium sheet | |
Air Supply Velocity | 2～40L/S , Can Be Adjusted. | |
Compressing Plate Up and Down Speed | 1~1000mm/min, Can Be Set. | |
Descent Speed of Compressing Down | 1-1000mm/min, Can Be Set. | |
Time of Blowing | 0-999s, Can Be Set. | |
Time of Compressing | 0-999s, Can Be Set. | |
Power Supply | AC220V±10% 50/60Hz 100W | |
Mainframe Dimensions （L×W×H） | 50×55×120 cm | |
Weight | 50kg | |
Standards | IDFB Part 10-B（IDFB）, FZ/T 80001 JISL1903, BSEN12130 | |
Accessories
Calibration Weight: 100g | 1pc | |
Test Cylinder: Ф288 mm (BSEN12130) | 1pc | |
Test Platen: 94.25g, Ф284 mm | 1pc | |
Test Cylinder: Ф290 mm (JISL 1903) | 1pc | optional |
Test Platen: 120 g, Ф285 mm (JISL 1903) | 1pc | optional |
Test Cylinder: Ф240 mm (FZ/T80001) | 1pc | optional |
Test Platen: 68.4g, Ф 240 mm (FZ/T80001) | 1pc | optional |
