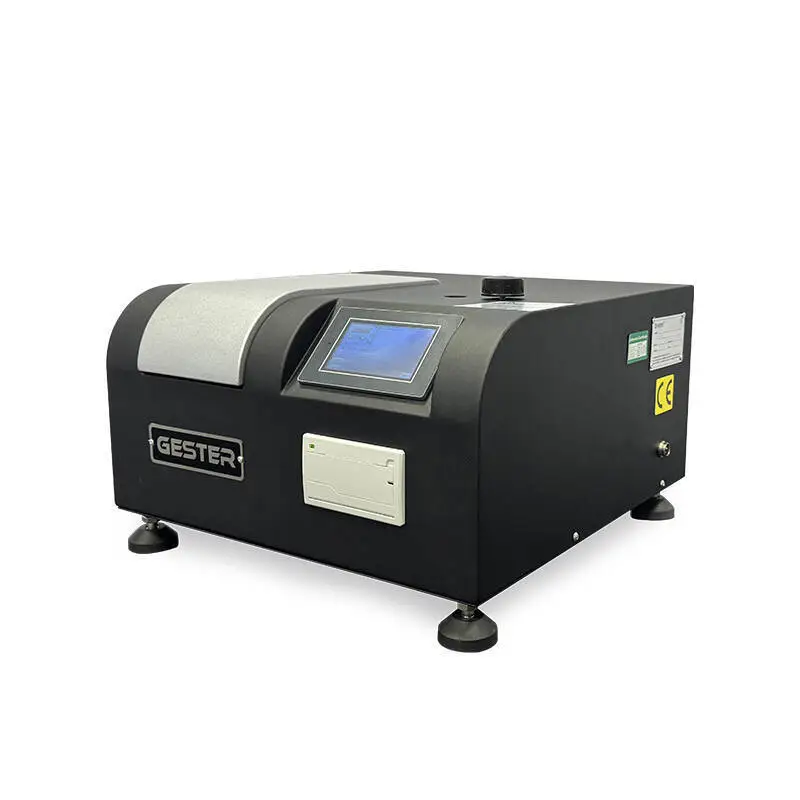

Automatic Textile Formaldehyde Content Testing Equipment GT-C76
Automatic Textile Formaldehyde Content Testing Equipment GT-C76
Application
This method is utilized for the rapid detection of formaldehyde content in various textiles, leather, and fur products.
Features
1. Employs an extraction method compliant with national standards, capable of simultaneously measuring formaldehyde levels, absorbance values, and transmittance values.
2. Equipped with a single-chip controller and a color touchscreen displaying in English.
3. Utilizes electrochemical sensor technology combined with a single-chip controller to collect absorbance values at multiple concentration points, automatically calculating the corresponding curve formula for different concentrations.
4. Allows independent selection of different standards for formaldehyde content in leather and textiles.
5. Performs automatic calculations, supporting up to 8 standard curves. Calculations use a discrete method, directly displaying the a/b values and the curve formula (y = a + bx).
6. Connects to a computer for data transfer, with PC software for plotting standard curves and assessing curve accuracy.
7. Includes a built-in micro-printer for generating test reports.
Automatic Textile Formaldehyde Content Testing Equipment GT-C76 Key Specification
Model | GT-C76 |
Operating Mode | Microprocessor control |
On-line Operation | Can do standard curve and data storage, data statistic analysis\ calculate\ tabulation\ print and other data processing |
Measurement Range | Light Transmittance: 0%—100%; absorbancy: 0—2.0; Formaldehyde content: 5.00-500.00mg/kg (sample attenuation can reach 5000mg/kg) |
Wavelength Range | 300~1000nm, adjustable; wavelength precision:±3nm; wavelength repeatability: ±1nm |
Light Source | Imported tungsten halogen lamp(6V/10W, 2000h) |
Concentration Precision | <=1% @412nm |
Power Supply | AC220V 50Hz 20W |
Dimension | 450×460×270 mm |
Weight | 20kg |
