Automatic Wascator Fabric Shrinkage Machine with Feeding Device GT-D34B
Application
Accelerated washing apparatus for knitted and woven fabrics to assess shrinkage in accordance with international test methods. Also used for assessing fabric stability, color fastness, finish durability, spirality and pilling to washing.
Related Standards
GB/T8629, GB/T8630, ISO6330/5077, FZ/T70009, BS4923, EN25077/26330, JIS L1909, IWSTM31,ISO19954,
SATRA TM158
Features
❶ Fully Automated Testing

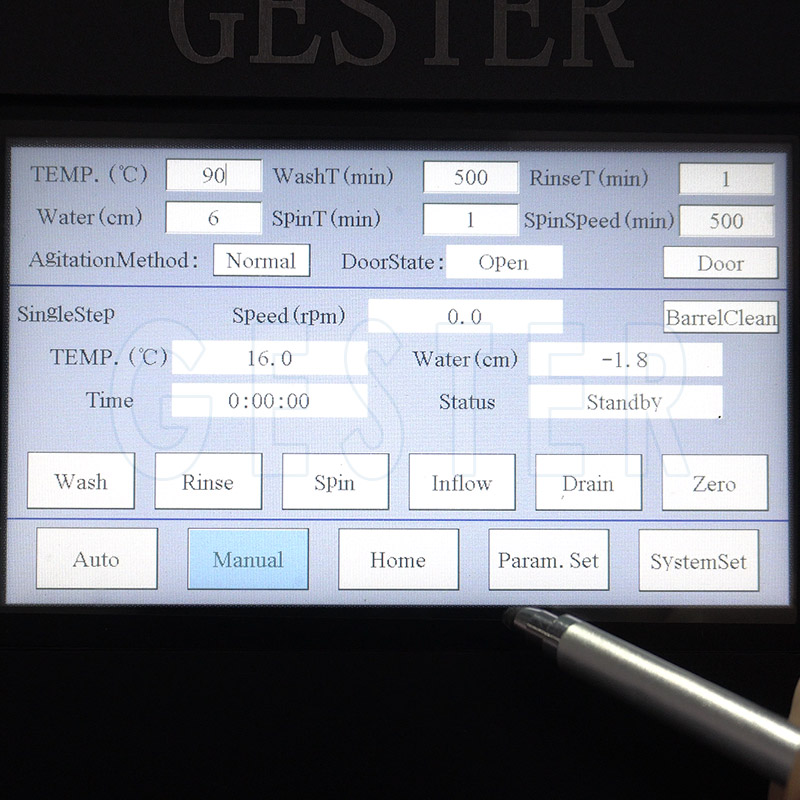

Automatic duty function: after each washing program is completed, the machine automatically adds powder and enters the next round of the washing program.
There is no need to stop the machine or require manual intervention in the middle.
❷ High Precision Manufacturing Process

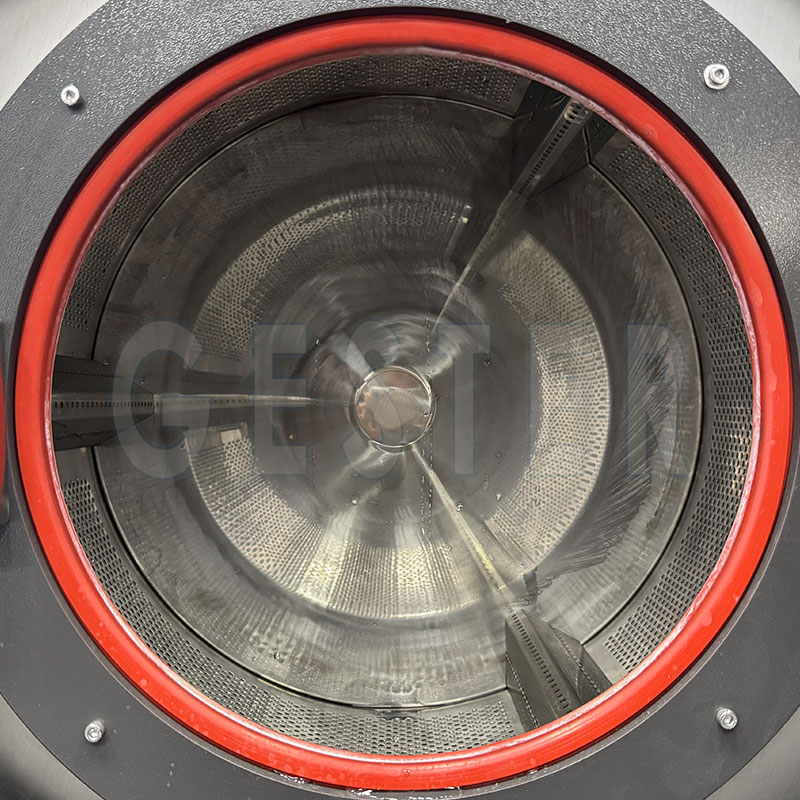

The inner drum is integrally stamped from high-quality 316 stainless steel, anti-corrosion, beautiful and durable.
The punching die is discarded after being used 200 times, effectively avoiding the phenomenon of snagging caused by the repeated use of the old die.
❸ Intelligent Stabilization System
The unique automatic error correction design function of the balance sensor effectively balances the problem of high centrifugal force of the drum during high-speed spin-drying.
It adopts the fully independent suspended drum technology, has high shock resistance performance, operates ultra-quietly, and there is no need to fix the feet.
❹ Enhanced Sealing Design

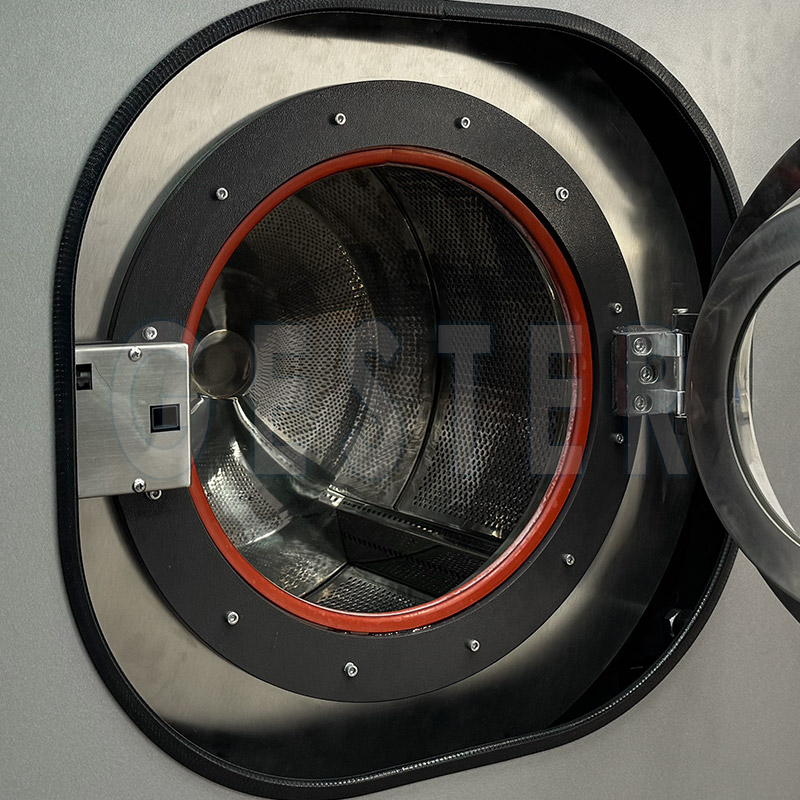

Sealing parts such as the cabin door, sealing ring, and connecting water pipe are all made by separately opening molds, which brings better water tightness.
The design of the latest improved large-discharge water outlet can effectively prevent the blockage caused by lint and thread balls.
Key Specification
Model |
GT-D34B |
|
Washing model |
Front-loading, horizontal tumbling-box type |
|
Diameter of tumbling-box |
52±0.1cm |
|
Depth of tumbling-box |
31.5±0.1cm |
|
Distance between inside and outside tumbling-box |
1.7±0.1cm |
|
Number of Lifter |
3 |
|
Height of Lifter |
5.3±0.1cm |
|
Rotating method
|
Normal |
Clockwise Rotating: 12±0.1s, pause 3±0.1s Anticlockwise: 12±0.1s, pause 3±0.1s |
|
Moderate |
Clockwise Rotating: 8±0.1s, pause 7±0.1s Anticlockwise: 8±0.1s, pause 7±0.1s |
|
Soft |
Clockwise Rotating: 3±0.1s, pause 12±0.1s Anticlockwise: 3±0.1s , pause 12±0.1s |
Rotation speed |
Washing 52r/min Low Spin (500±20)r/min or High Spin (800±20)r/min |
|
Drainage duration |
< 1min (water in high level 13cm) |
|
Heating power |
5.4±2%KW |
|
Load weight |
5kg |
|
Water level control |
10cm, 13cm |
|
Power supply |
AC380V±10% 50/60Hz 7KW |
|
Instrument size |
990×980×1450mm(L×W×H) |
|
Weight |
280kg |
