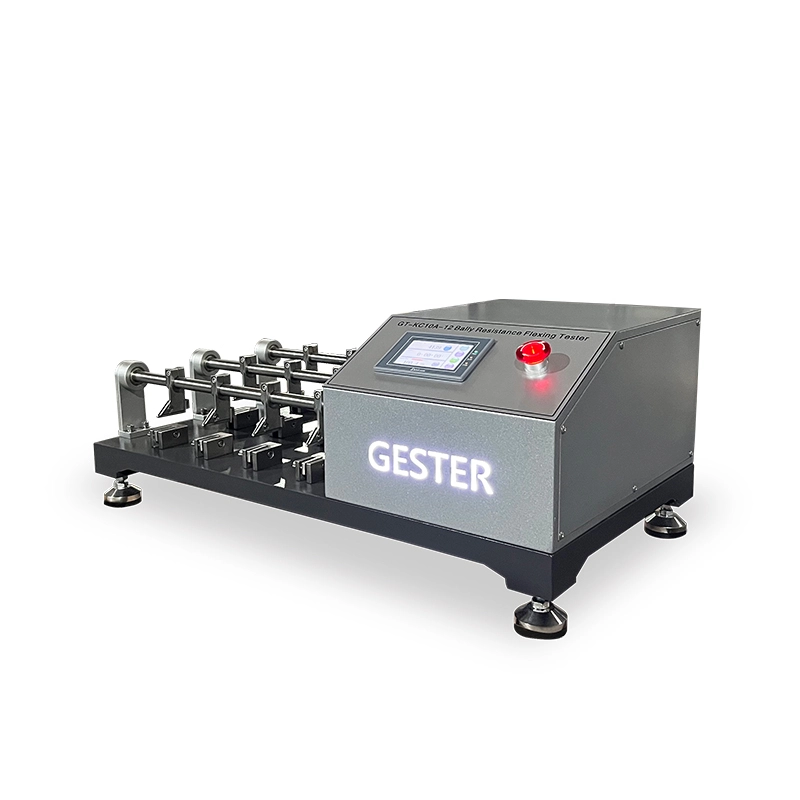

Bally Resistance Flexing Tester For Leather GT-KC10A
Application
Bally Leather Flexing Tester To determine the resistance of a material to cracking or other types of failure at flexing creases. The method is applicable to all flexible materials and in particular leathers, coated fabrics and textiles used in footwear uppers.
By using the Bally Resistance Flexing Tester for Leather GT-KC10A, leather manufacturers can ensure that their products meet the necessary quality and durability standards, and that they will perform well under normal use conditions.
Bally Resistance Flexing Tester Feature
The test specimen is folded in half then one end is secured in a clamp. The test specimen is then turned inside out and the free end secured in a second clamp at 90 degrees to the first. The first clamp is repeatedly oscillated through a fixed angle at a defined rate causing the test specimen to flex. At set intervals the number of flexing cycles is recorded and the damage to the test specimen is visually assessed. The test can be carried out with wet or dry test specimens at ambient.
Product Parameters
| Key Specification | |||
| Model | GT-KC10A-6 | GT-KC10A-12 | GT-KC10A-24 |
| Test position | 6Sets | 12 Sets | 24 Sets |
| Type of upper grips | Please choose the suitable type as below chart of ‘Standard’. | ||
| Flexingangle | 22.5°±0.5° | ||
| Flexing speed | 100±5 cycles / flexes per minute | ||
| Counter | LCD 0 - 999,999.(adjustable) | ||
| Sample size | 70 ± 5 x 45 ± 5 mm | ||
| Power supply | 1∮AC 220V 50/60HZ | ||
| Dimensions ( L x W x H ) | 700x300x340mm | 780x450x360mm | 1100x510x220mm |
| Weight | About 45kg | 60kg | 70kg |
| Standards | |||
| SATRA TM 55; IULTCS/IUP 20-1; ISO 17694 ; EN 13512 ; EN344-1 section 5.13.1.3 and annex C; EN ISO 20344 section 6.6.2.8; GB/T20991 section 6.6.2.8;AS/NZS 2210.2 section 6.6.2.8; JIS-K6545;BS 3144 Clause 13 | Equipped with A typeof upper grips. | ||
ISO 32100 ; DIN53351; ISO5402-1; GE-24; ASTM D 6182 EN ISO 20344-2021 section 6.6.3 | Equipped with B typeof upper grips. | ||
| Accessories | |||
| Standards Accessories | Power line | 1pc | |
| Optional Accessories | GT-KD20 Hydraulic Rocker Pressure Tester | (Cutter: 70 ± 5 x 45 ± 5 mm) | |
Product Details
