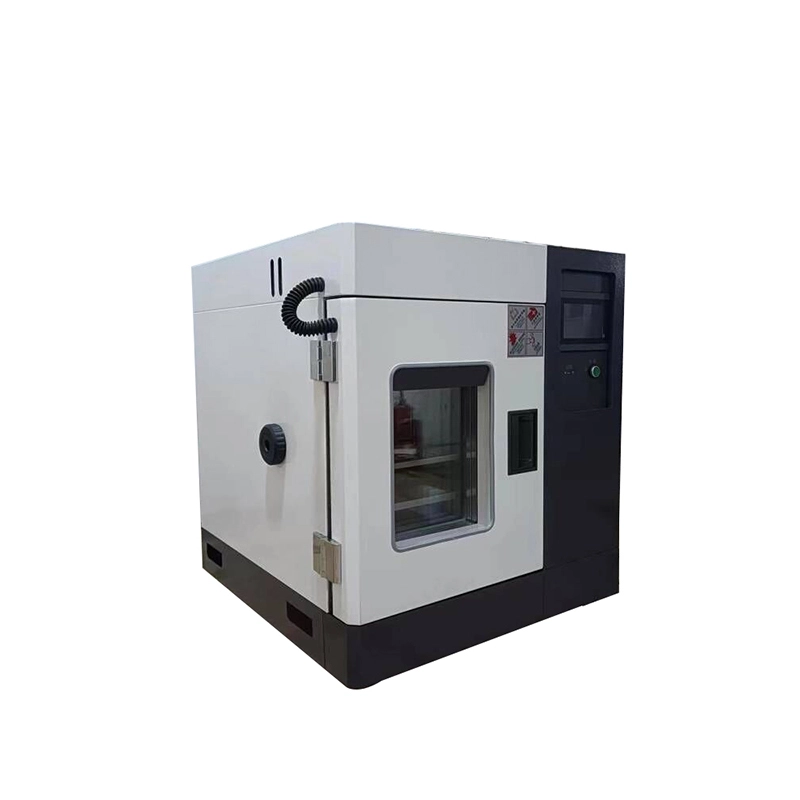

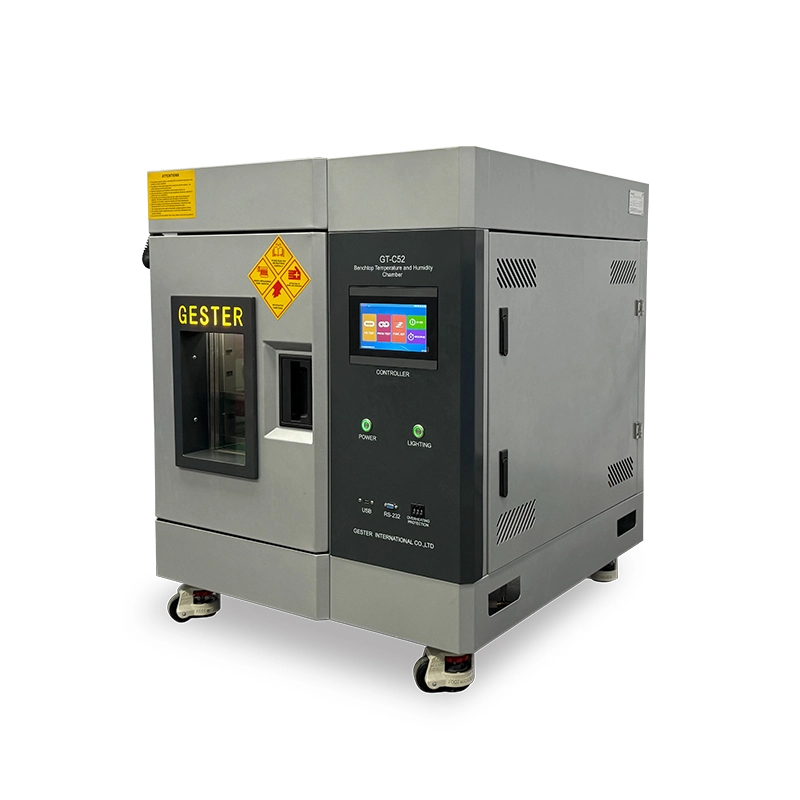

Benchtop Temperature Humidity Chamber GT-C52
Benchtop Temperature Humidity Chamber GT-C52
Application
This benchtop environmental chamber is designed for sample conditioning before testing, as well as for performing alternating high-low temperature tests on various materials. Users can program the desired temperature, humidity, and duration settings.
It is ideal for high-temperature and humidity testing of electrical, electronic, mechanical, and other products, components, and materials. By simulating specific temperature and humidity conditions, it evaluates the quality and reliability of these items.
Standards
GB-2423.1-2008(IEC68-2-1), GB-2423.2-2008(IEC68-2-2), GJB360.8-2009(MIL-STD.202F)
GJBl50.3-2009(MIL-STD-810D), GJBl50.4-2009(MIL-STD-810D), GB2423.3-2008(IEC68-2-3) est Ca
GB2423.4-2008(IEC68-2—30) Test Db, GJBl50.9-2009(MIL-STD-810D), GB/T31467.3-2015, GB/T31485-2015
Benchtop Temperature Humidity Chamber GT-C52
Test Space Options
|
Capacity |
50L |
80L |
|
Inner chamber dimension |
350×300×480mm (W×D×H) |
400×400×500mm (W×D×H) |
|
Machine dimension |
820×800×895mm (W×D×H) |
870×890×915mm (W×D×H) |
Key Specification
|
Control mode |
Touch scree control |
|
|
Temperature range |
-20~150℃ |
|
|
Temperature Uniformity |
±2.0℃ |
|
|
Temperature Fluctuation |
±0.5℃ |
|
|
Humidity range |
20%~98%, can be set. |
|
|
Humidity Deviation |
±2.0%RH(>75%RH) ±3.0%RH(≤75%RH) |
|
|
Humidity Fluctuation |
±2.0%RH |
|
|
|
||
|
Rate of temperature increasing |
25℃~150℃ |
About 45 minutes non-linear, no-load. |
|
|
25℃~-20℃ |
About 45 minutes non-linear, no-load |
|
Sensor |
High-precision DIN A class, dry bulb φ4.8mm SUS #304 PT 100Ω. |
|
|
Power supply |
AC 1ψ3W 220V 50Hz, protect ground wire, ground resistance≤4Ω. |
|
|
Weight |
About 170kgs |
|
