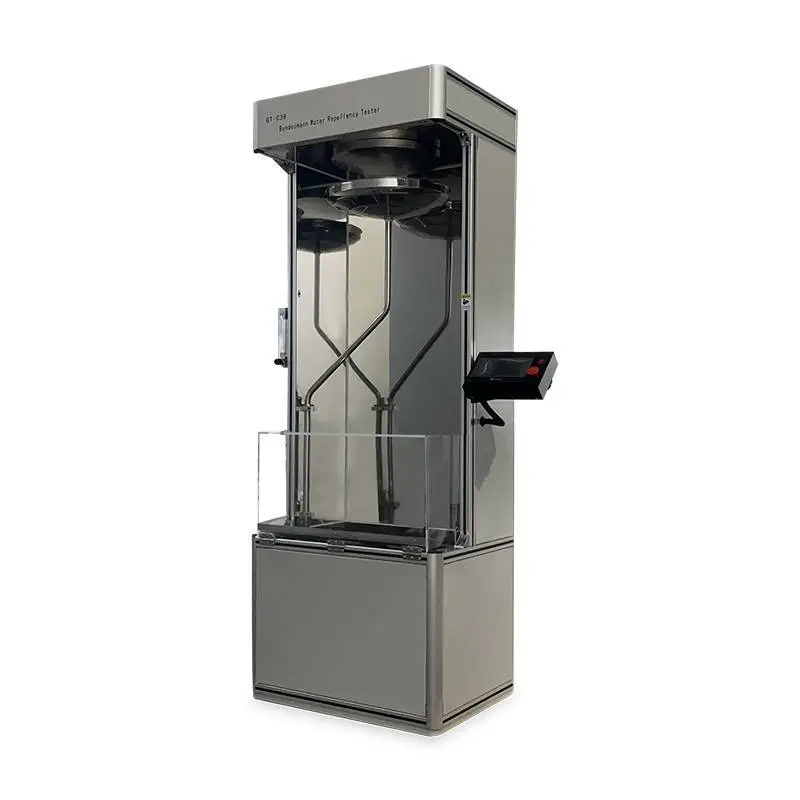

Bundesmann Water Repellency Tester GT-C38
Application
This machine use the Bundesmann method to test the water repellency of fabrics.
Standards
GB/T14577, ISO 9865, BS EN 29865, DIN 53888, JIS L1092
Product Parameters
Key Specifications
Model | GT-C38 |
Rainfall Area | About 32500px² |
Water-Dropper | 300 pcs |
Rainfall Capacity (each 2500px²) | 100～300ml/min(adjustable) |
Test Pieces Size | Φ140mm |
Testing Area | About 2000px² |
Diameter of Sample Cup | 100mm |
The Angle of the Sample Cup | 15° |
Rotational Speed of the Sample Cup | 6r/min |
The Size of the Cross-Shaped Wiper | 48×5mm |
Rotational Speed of the Wiper | About 20r/min |
The Frictional Pressure of the Wiper | 2.5N |
Testing Time | Monitor Display |
Power Supply | AC 220V 50Hz 200W |
External Dimensions | 80×80×5500px |
Weight | About 200kg |
