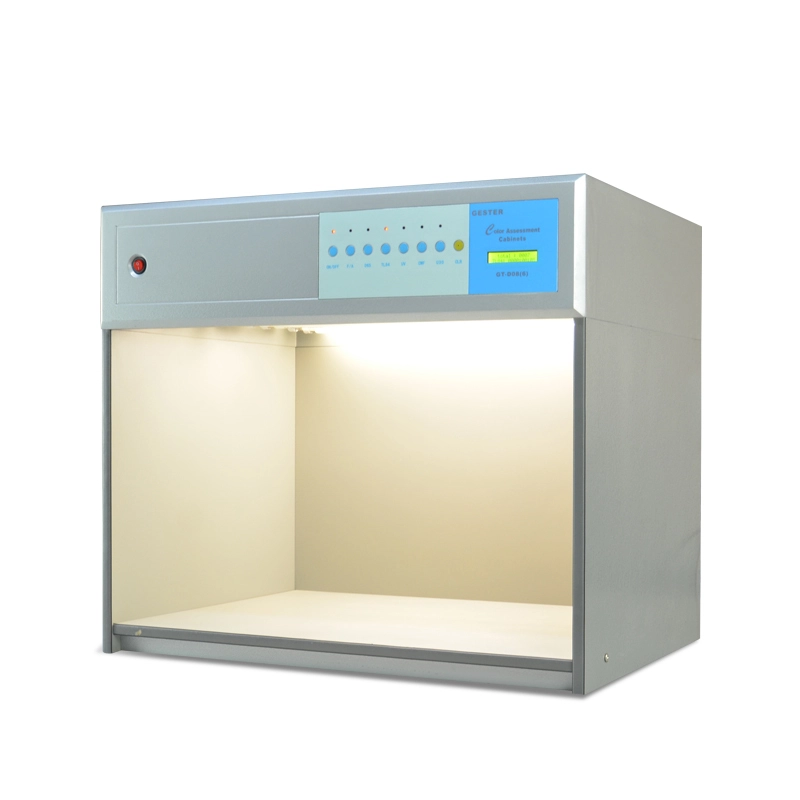

Colour Matching Cabinet | Color Assessment Cabinet GT-D08
Application
Colour Matching Cabinet | Color Assessment Cabinet: Colors appear differently under different lighting sources. To avoid/reduce the assessment error when performing color contrast, we can use of a Light Booth / Viewing Booth / Color Light Box to simulate different light sources to obtain an objective assessment of color and color difference, anytime, anywhere. The Color Viewing Cabinet / Color View Light Booth / Color assessment cabinet / Color Light Box can be applied to the industries that need to perform testing color difference as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
Feature
- 1.Color assessment cabinet render color more accurately. With 6 different light sources (D65, TL84, CWF, F, UV, U30), which can detect the metamerism.
- 2.Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.
- 3.Easy to operate by using individual switches for each light source.
- 4.Elapsed time meter for tracking optimal lamp replacement.
- 5.No warm-up time or flickering which insures quick and reliable color judgment.
-
6.Economic power consumption and low heat generation for high light efficiency.
Product Parameters
Key Specification
Light source | Color viewing booths Application | Color temperature(K) | Power(W) |
D65 | International Standards Artificial Daylight | 6500 | 18 |
TL84 | Applied to stores in Europe, Japan and china | 4000 | 18 |
CWF | (Coll White Fluorescent) American standard | 4150 | 18 |
F/A | “Sun-Setting Light Yellow” incandescent light source (imitation of sunset) | 2700 | 40 |
UV | Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments | Wavelength: 365nm | 20 |
U30 | Warm White fluorescent, American Standard | 3000 | 18 |
Optional Model
Models | Configured light sources | Weight | Dimensions( L x W x H) |
GT-D08(4) | D65. TL84. F . UV | 24kg | 710 x 405 x 570mm |
GT-D08(5) | D65. TL84. CWF. F. UV | 28kg | 710 x 405 x 570mm |
GT-D08(6) | D65. TL84. CWF. F. UV. U30 | 34kg | 710 x 530 x 570mm |
GT-D08(7) | D65. TL84. CWF. F. A. UV. U30 | 34kg | 710 x 530 x 570mm |
GT-D08(12) | D65. TL83. TL84. CWF. F. UV | 65kg | 1310 x 600 x 800mm |
Accessories
Standard accessories | 1set | Tube |
1pc | Power line | |
Optional accessories | Optional | 45o Standard grandstand |
Product Details
