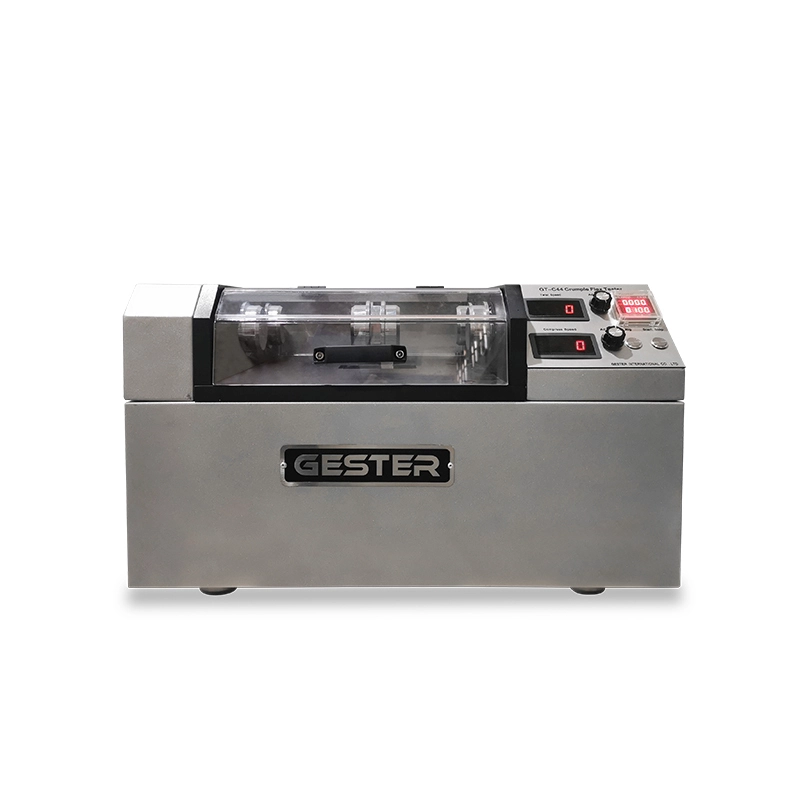

Crumple Flex Tester for plastics coated fabrics GT-C44
Application:
Crumple Flex Tester is suitable to determine resistance to damage by crumpling and flexing method for rubber or plastics coated fabrics.
Standards:
BS 3424 P9-Method C, ISO 7854-Method C, GB/T 12586
Product Parameters
Key Specification
Model | GT-C44 |
Test Positions | 4 |
Disc | Diameter: 63.5mm, Width: 15mm |
Rotational Speed | 200±10r/min(3.33Hz±0.17Hz) |
Rotational Angle | 90°±2° |
Compression Speed | 152±4r/min(2.53Hz±0.07Hz) |
Compression Stroke | 70mm |
Cylinder Flanges Inner Side Distance | Max.180±3mm |
Dimension of Test Piece | 220x190mm, Each piece in longitudinal in transverse direction |
Sewing size of Test Piece | Cylindrical Shape, length 190 mm, inner diameter 64 mm |
Counting | 0 ~ 999 999 times, settable |
Dimensions (WxDxH) | 57x39x1050px |
Weight | ≈60Kg |
Power Supply | 1∮ AC 220V 50/60Hz 3A |
Accessories
Standards accessories | 1pc | Sampling plate |
8pcs | Hose clamp |
