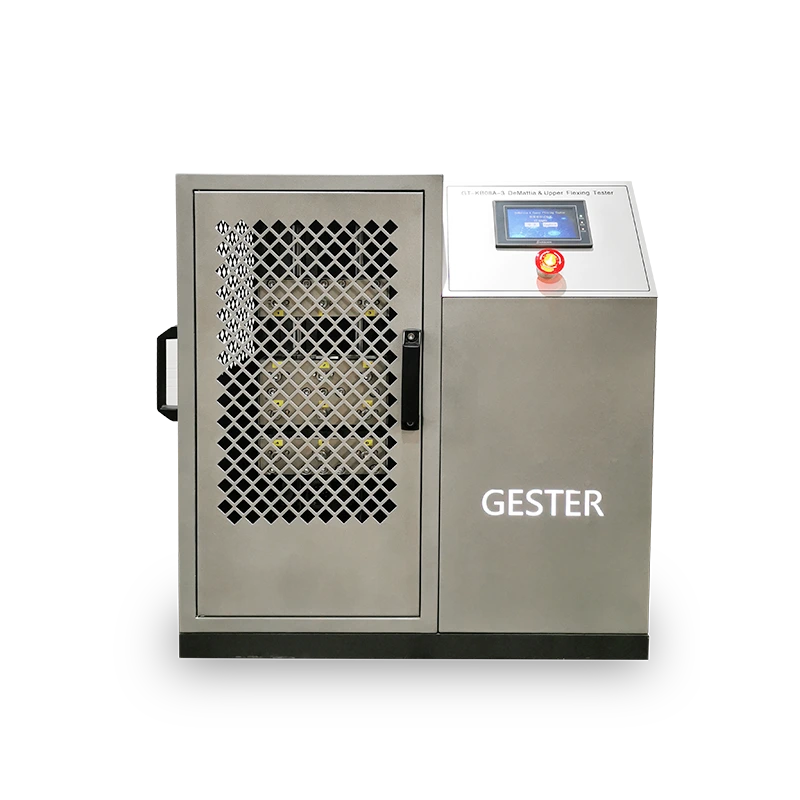

De Mattia and Upper Flexing Tester GT-KB08A
Application
De Mattia and Upper Flexing Tester to determine bending resistance of rubber, leather, synthetic leather, shoe sole and other materials. And inspect its flex cracking resistance, resistance to cracking and crack growth degree by repeatedly flexing in certain times and stroke.
Product Parameters
Key Specification
Model | GT-KB08A | ||
Clamps Max. apart | 95mm | 76mm | 70mm |
Moving Clamp Stroke | 35mm | 57mm | 57mm |
Clamps Min. apart | 60mm | 19mm | 13mm |
Control Method | Touch screen control | ||
Test Speed | 300±10 cpm | ||
Counter | Display 0-999999 | ||
Test Position | 6 pcs | ||
Power Supply | 1∮AC 220V 50/60HZ 3A | ||
Standards | HG/T2873 | ASTM D813, D430, GB/T13934,13935, JIS-K6301, ISO132,133, BS-903-A10 | ISO 7854-Method A, BS 3424:Part9, GB/T 12586 Method A, EN ISO 2023, Annex E |
Accessories
Standard Accessories
| 1set | Spanner |
1pc | Power Line | |
Optional Accessories
| 1pc | Chisel Cutter(2.03mm) |
