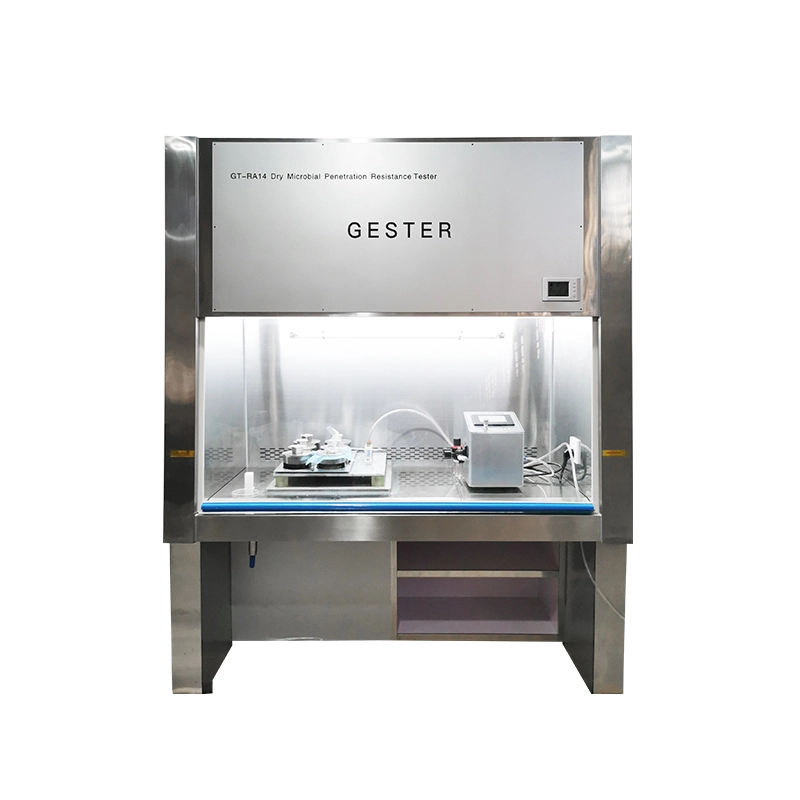

Dry microbial penetration resistance tester DMPRT GT-RA14
Application
The Experimental system of microbial penetration in dry state is composed of gas source generation system, detection main body, control system and so on. It is used to carry out the method of dry microbe penetration resistance test on the surgical drapes, gowns and clean air suits.
Principle
- 1.The test is carried out on test pieces each fixed in a container. In every container except one a portion of talc contaminated with Bacillus subtilis is poured on the test piece. One container is left uncontaminated as a control. A sedimentation plate is inserted at the base of each container at a short distance below the test piece.
- 2.The apparatus supporting the containers is then vibrated by a pneumatic ball vibrator. The talc that penetrates is captured on the sedimentation plate. The sedimentation plates are removed and incubated.
-
3.Dry microbial penetration resistance tester DMPRT: The numbers of colonies produced are counted.
Product Parameters
Key Specification
Model | GT-RA14 |
Mode of vibration | Pneumatic ball vibrator |
Vibration frequency | 20800 times / minute |
Vibration force | 650N |
Work table size | 1360mm×690mm×520mm (W×D×H) |
Worktable media | Marble slab |
Experimental container | Stainless steel experimental container |
Dimension | 1500mm×765mm×1610mm (W×D×H) |
Power Supply | 1∮ AC 220V 50Hz |
Standards | YY/T0506.2 Surgical drapes, gowns and clean air suits for patients, clinical staff and equipment - Part 2: Performance requirements and test methods; YY/T0506.5 Surgical drapes, gowns and clean air suits for patients, clinical staff and equipment - Part 5: Test methods for resistance to dry microbial penetration; ISO 22612 Clothing for protection against infectious agents - Test method for resistance to dry microbial penetration. |
