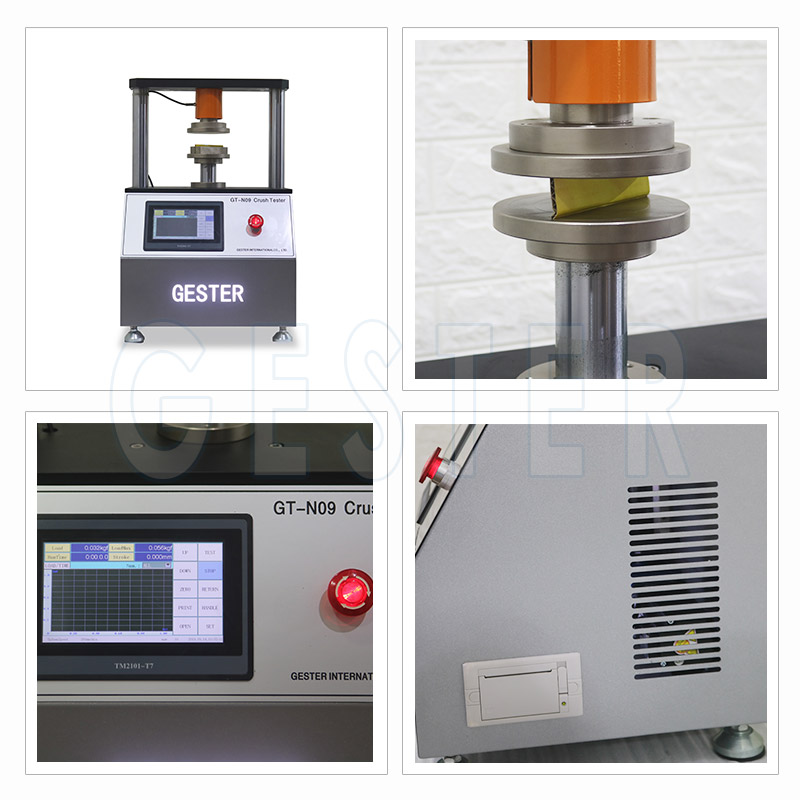

Ring Crush Tester GT-N09
Overview
The Edge Crush Test Machine GT-N09 is a state-of-the-art crush tester, meticulously designed using advanced mechanical design principles, ergonomic considerations, and micro-processing technology. It features a fixed upper pressure plate design, ensuring high precision.

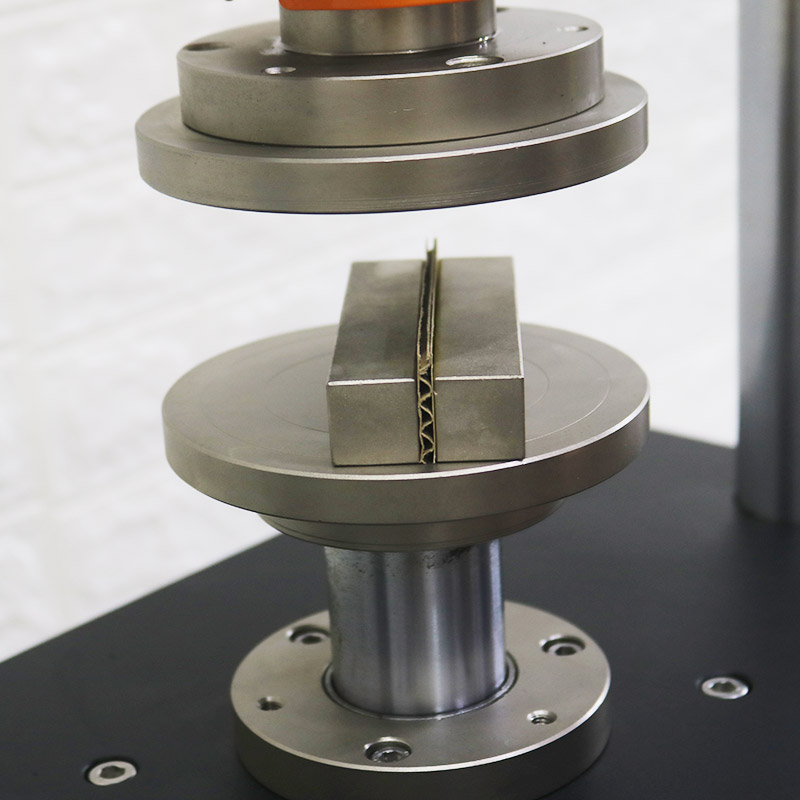

Our Crush tester is suitable for a variety of testing methods, including Ring Crush Test (RCT), Edge Crush Test (ECT), Flat Crush Test (FCT), Pin Adhesion Test (PAT), and Concora Medium Test (CMT) as an optional method.
Applications
Paper, paperboard, corrugated cardboard, and corrugated packaging.
Auxiliary Equipment
RCT, ECT & PAT, FCT
Key Features
1. Rapid return speed after test completion.
2. Equipped with an imported step motor and servo control system.
Automated measurement, statistical analysis, and printing of test results, with data storage capabilities.

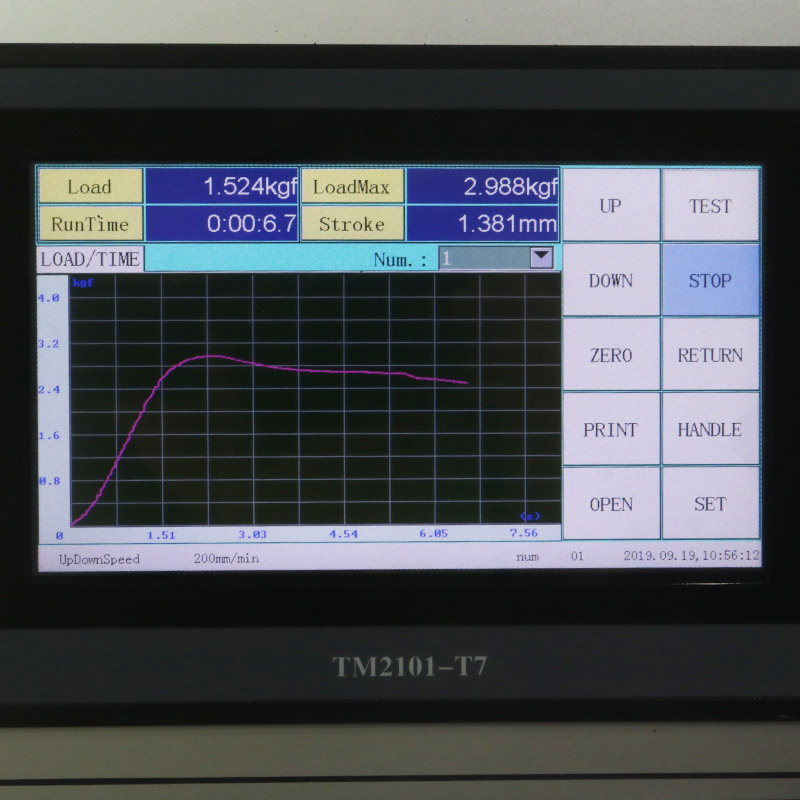

3. Blue LCD display for real-time monitoring of crush time and loading force. The Ring Crush Tester GT-N09 model also supports real-time crush graph display.
4. High-speed thermal printer, ensuring quiet operation.
5. Designed with a modern mechanical-electrical integration concept, offering a compact structure, aesthetically pleasing appearance, and easy maintenance.
Standards
ISO 3035, ISO 3037, ISO 7263, TAPPI-T472, TAPPI T811, TAPPI T822, TAPPI T838, JIS-P8126, GB/T 2679.8,
GB/T 6546, GB/T 6548 ,GB/T 2679.6
Key Specification
Model | GT-N09 |
Measuring Range | 0-200kg |
Compression Speed | 12.7mm/min |
Resolution | 1/10,000 |
Accuracy | ±1% |
Dimensions | 810×400×860mm |
Weight | 60kg |
