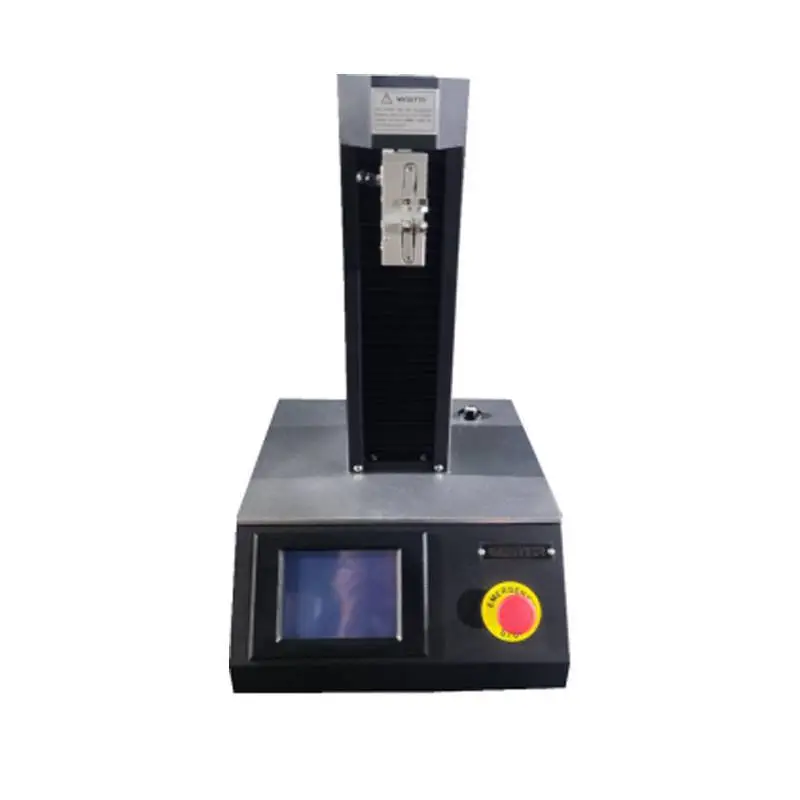

Electronic Tensile Strength Testing Machine For Fiber GT-B02-2
Application
Electronic Fiber Tensile Strength Testing Machine (Single Column) can be applied to test lots of materials in breaking tenacity, elongation at break, load at specified elongation, elongation at specified load and creep test, such as natural fiber, chemical fiber, metal wire, hair, carbon fiber and other materials.
Feature
- 1. LCD display, can operate Chinese & English menu display, more convenient and clear, avoid faulty operation.
2. Using 32-bit cortex-m3 microprocessor, strong anti-jamming performance, fast data transmission.
3. Using high-speed AD converter, high sampling rate and test accuracy.
4. Tester can display, analysis, and store the testing data automatically. Tester configurates thermal printer, can print report directly.
5. Pneumatic clamping, evenly and can be calibrate pressure for avoiding sample slide or destroy.
6. Transmission is the ball screw group, timing belt and synchronous wheel. More stable, high accurate and lower noise.
Support online working with professional computer software.
Product Parameters
Key Specification
Model | GT-B02-2 |
Gripping Style | Pneumatic |
Measuring Range | 800cN |
Resolution | 0.01cN |
Measuring Accuracy | ≤±0.2%F·S |
Testing Speed | 2~200mm/min(Setting freely) |
Stroke Space | ≤140mm |
Elongation Resolution | 0.01mm |
Clamping Distance | 5mm |
Location Mode of Clamping Distance | Digital setting, automatic positioning |
Unit-conversion | cN |
Dimensions | 500×400×600mm |
Weight | 25kg |
Power Supply | AC220V/50Hz , 120W |
Product Details
