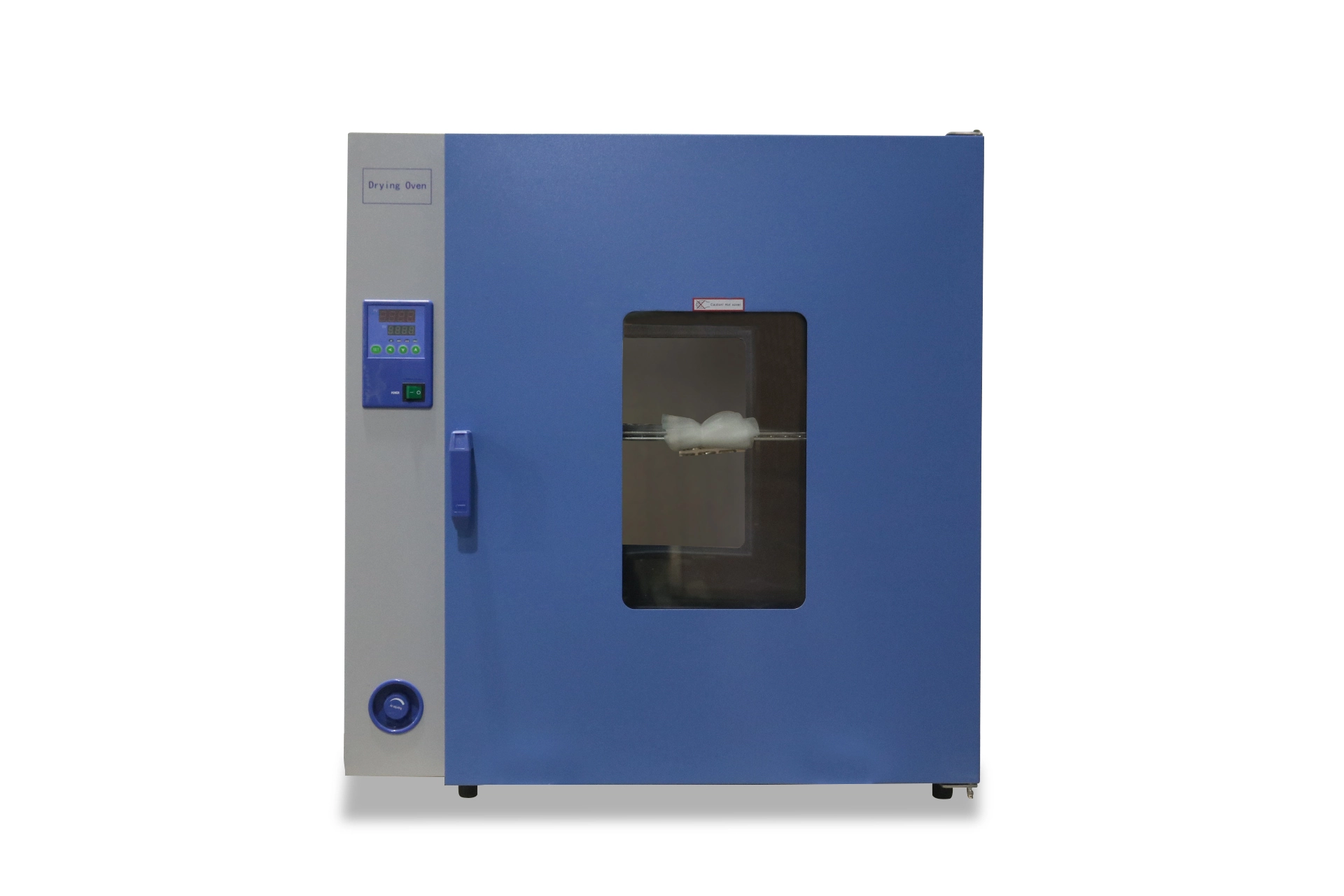

Electronic Testing Oven Laboratory Drying Oven GT-D10
Electronic Testing Oven Laboratory Drying Oven GT-D10
Application:
This Drying Oven is design for all kinds of textile’s perspiration resistance color fastness drying test, matching GT-D09 Perspiration Tester using. It also apply for high temperature heating & drying test for other products.
Standards:
Perspiration: GB/ T 3922, AATCC 15, ISO105-E04, JIS L 0848
Sea Water: GB/ T5714, ISO105-E02, AATCC107
Water: GB/ T5713, ISO105 E01, AATCC106
Saliva: GB/ T 18886
Features:
1. Polished stainless-steel chamber.
2. Latest PID controller.
3. Uniform distribution of air temperature.
4. Forced-air convection.
5. Double Layer glass door, larger viewing window.
Key Specification
Model | GT-D10-30L | GT-D10-80L | GT-D10-136L | GT-D10-220L |
Interior dimensions | 340*320*320mm | 450*400*450mm | 550*450*550mm | 600*500*750mm |
Chamber volume | 30L | 80L | 136L | 220L |
Temperature range | RT+10℃~250℃ | |||
Display resolution | 0.1℃ | |||
Temperature stability | ±1℃ | |||
Ambient temperature | +5~40℃ | |||
Power consumption | 850W | 1100W | 1550W | 2050W |
Timing range | 1~9999min | |||
Exterior dimension(L×W×H) | 620*530*490mm | 740*618*630mm | 840*670*730mm | 840*670*730mm |
Power supply | 220V 50/60HZ | |||
| Standard accessories | 2pcs | Shelves | ||
1pc | Power line | |||
