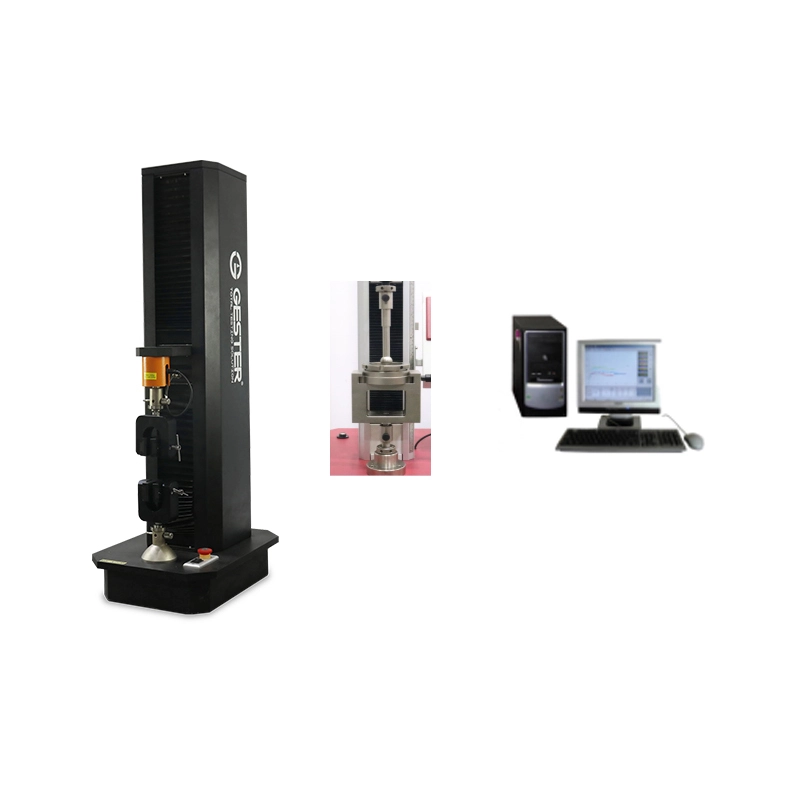

Fabric Ball Burst Strength Tester GT-C02-2
Application
Used for testing ball burst and extension of cotton fabric, elastic fabric and socks and gloves products.
Feature
- 1.It’s available to connect with computer, with straightforward result of report forms, curve, graph.
- 2.DC servo drive, can setting speed of wide range.
- 3.Import sensor, precision of force measurement over 0.2% F.S.
- 4. Fabric Ball-Bursting Strength Tester can customized special busting function according to customer’s requires.
-
5.Elegant aluminium alloy shell.
Product Parameters
Key Specification
Model | GT-C02-2 | ||
Force Range | 2500N(1%～100% of Full Range) | ||
Force Accuracy | ±0.2%F.S | ||
Speed Range | 0.01-1000mm/min | ||
Max. Drop Stroke Of Ball | 120mm | ||
Standards | GB/T 19976, ASTM D 3787 ASTM D 6797 | EN 12332-1 | FZ/T 01030, FZ/T 60019 |
Related Grips | GT-CA05A | GT-CA05B | GT-CA05C |
Dia. Of Clamp | Φ44.45mm | Φ45mm | Φ25mm |
Dia. Of Burst Ball | Φ25.4mm | Φ38mm | Φ20mm |
Operate Control | Can Use Operation Screen, Connecting With Computer, Pad And Cellphone | ||
Power Supply | AC 220V 50/60HZ | ||
Machine Drive | Servo motor drive, Synchronous wheel and precision ball screw drive | ||
Power | 200W | ||
Power Supply | AC 220V 50/60HZ | ||
Dimensions (W x D x H) | 47x38x186 cm | ||
Weight | 85kgs | ||
Accessories
Standard accessories | 1pc | Manual Grips |
1pc | English Operation Software | |
1pc | Cable Connect with PC | |
1pc | Load cell | |
Optional accessories | 1set | Desk Top Computer |
1pc | Other Grips and Load Cell |
