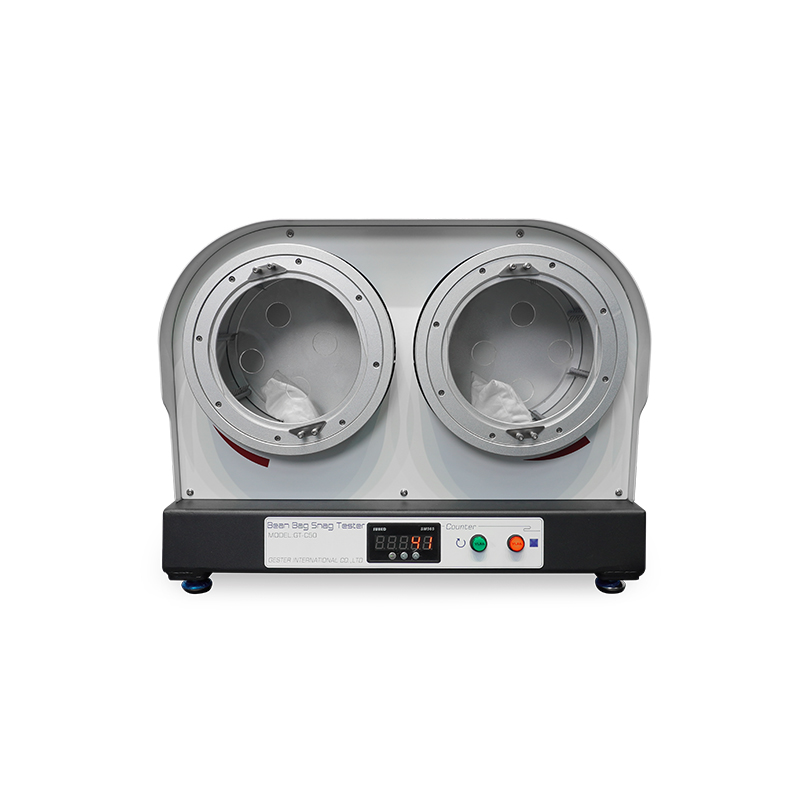

Fabric Bean Bag Snagging Tester GT-C50
Appliaction

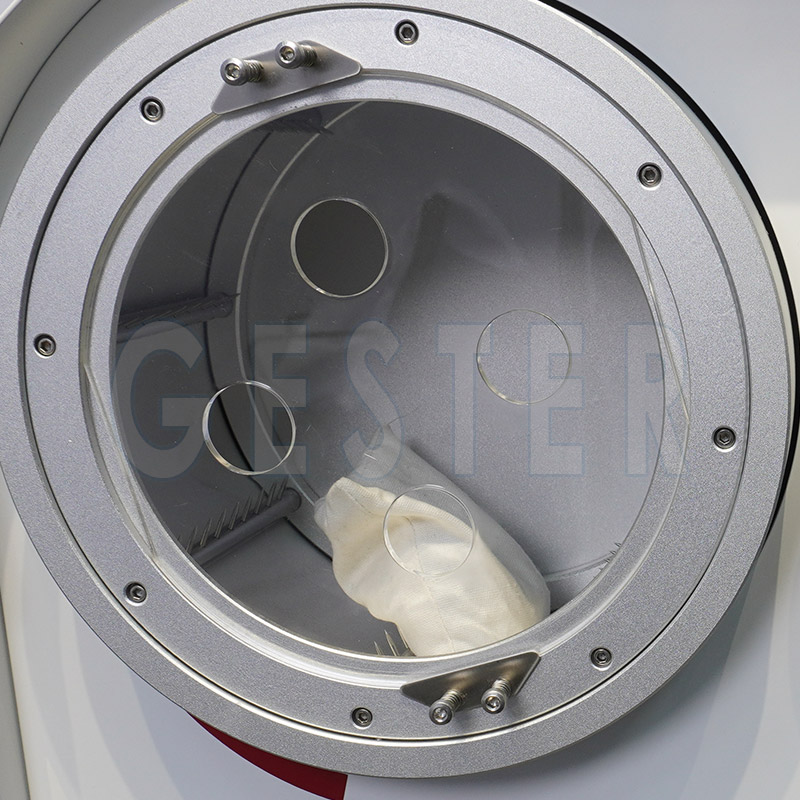

This Fabric Bean Bag Snagging Tester is designed to assess the snagging resistance of knitted fabrics. The test involves placing a fabric sample (with a bean bag inside) into a roller equipped with rows of needles. The roller then rotates for a specified number of cycles, after which the sample is graded to evaluate its resistance to snagging.
Features
1. The roller is made of aluminum, giving it a sleek and polished appearance.
2. A glass cover board allows for easy observation of the sample during testing.

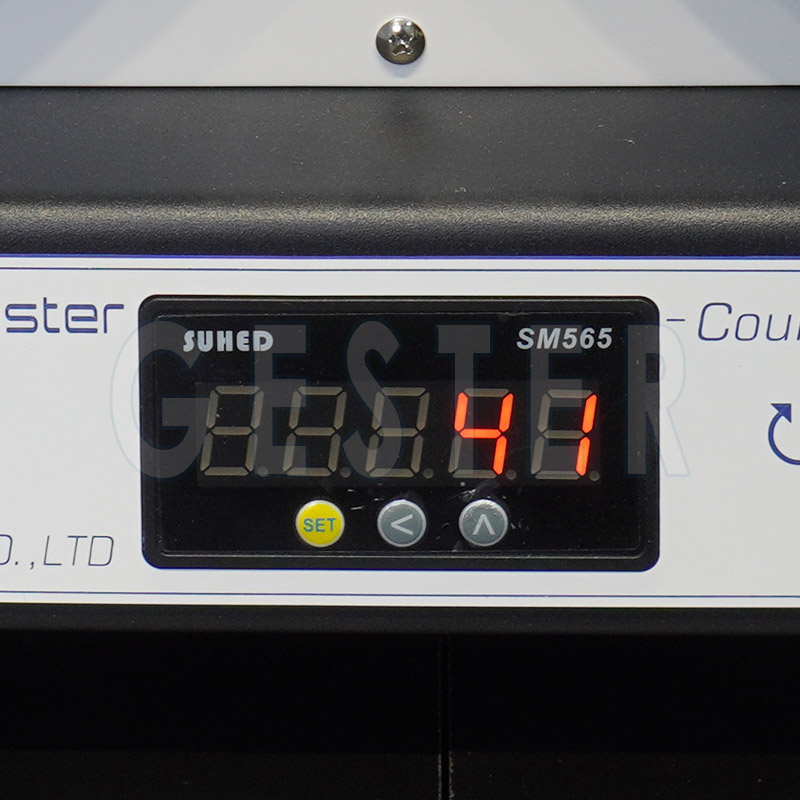

3. The device includes an automatic counting system, enabling the test to stop automatically once the set number of cycles is completed.
Key Specification
Model | GT-C50 |
Counter Control | 1-99999 can be adjustment |
Test Speed | 20 ± 3 r/min |
Test Cylinder | Diameter: 200mm, Depth: 145mm |
Bean Bag | 450 ± 10 g |
Pin Angle | 30 ±5o |
Sample | 215 x 115mm |
Power Supply | 1∮ AC 220V 50/60Hz |
Dimensions | 800 x 450 x 550mm(L x W x H) |
Weight | 40Kg |
