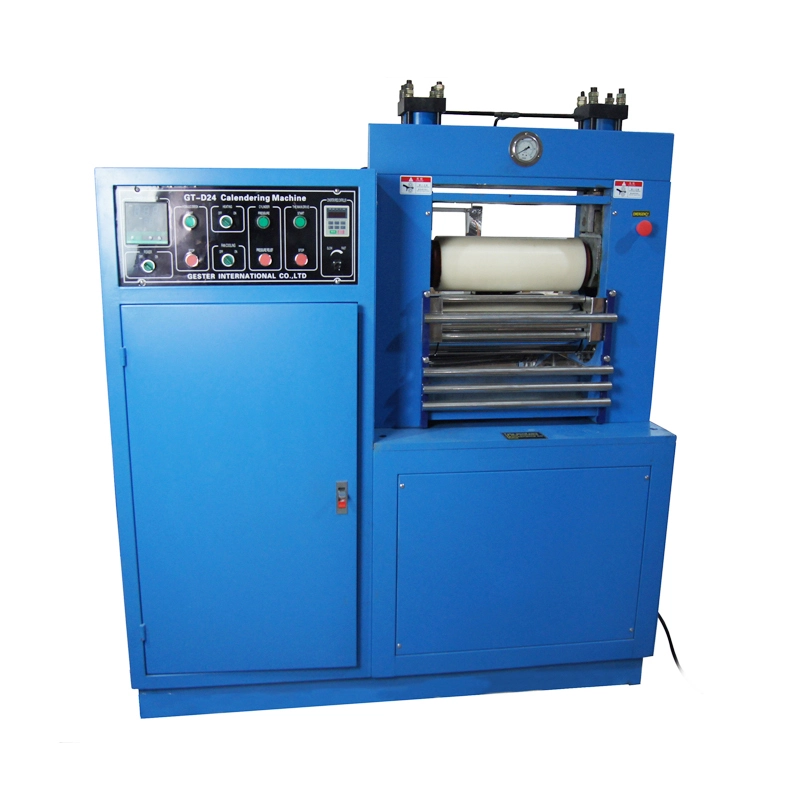

Fabric Calendering Machine GT-D24
Application
This Calendering Machine is used in dyeing and finishing process in laboratory. The machine is mainly used help to adjust the formula of fabric and auxiliaries. It can be applied to the calendering process of pure cotton, polyester cotton, silk fabrics, chemical fiber, fiber, wool spinning and other combination fabric, as well as roll compacting process of building materials, plastic packaging materials and paper products.
Feature
- 1.Calendering Machine equipped with a pair of roller, the upper one is nylon roller which can resist temperature up to 180℃, and the lower one is chromeplate heating roller which can let the fabric have different luster by heat, friction and press.
- 2.Hydraulic pressure model can make the lineal pressure up to 5T.
3.Equipped with emergency stop to protect the machine and operators.
Product Parameters
Key Specification
Model | GT-D24 |
The upper roller | ￠150×400mm |
Nylon Roller, maximum temperature 180℃ | |
The lower roller | ￠130×400mm |
Chromeplate Roller, made of polished mirror | |
Rollers Position | Vertical |
Rotate speed | 0-6m/min |
Compression method | Hydraulic type, the largest line pressure 100T |
Heating mode | Electrical heating , 4.5KW |
Safety device | Equipped with manual and emergency stop switches |
Power supply | 380VACX3PH, X1.5KW |
Dimensions | 1430×600×1650mm |
Weight | 700kg |
