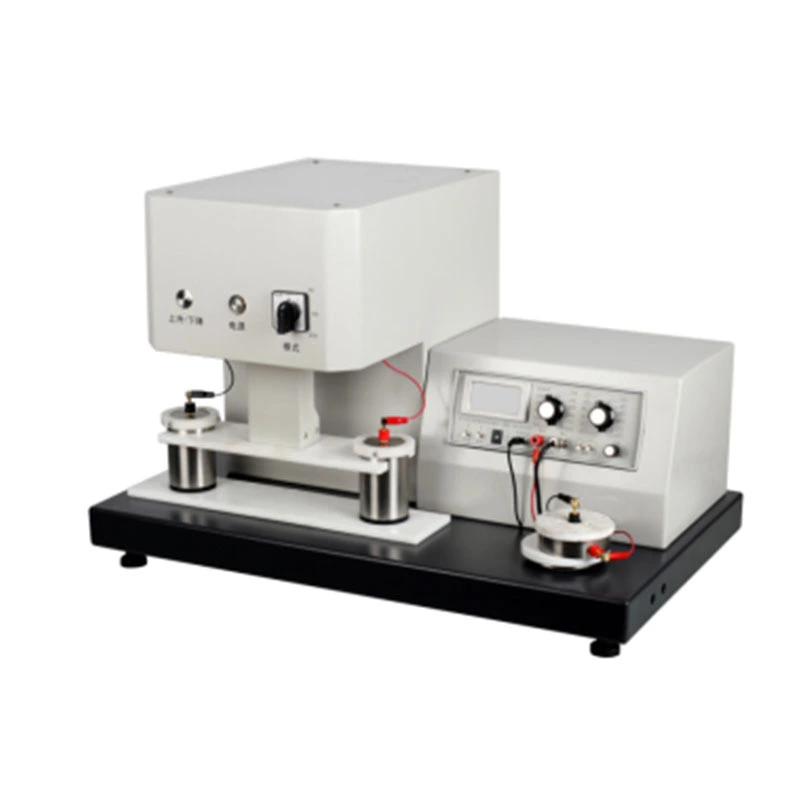

Fabric Material Resistivity Tester GT-C103
Application
The Material Resistivity Tester can be used to measure the surface resistivity and volume resistivity of variety of fabrics, clothing, and other insulating material.Then reflecting the electrostatic properties of the test material.
Feature

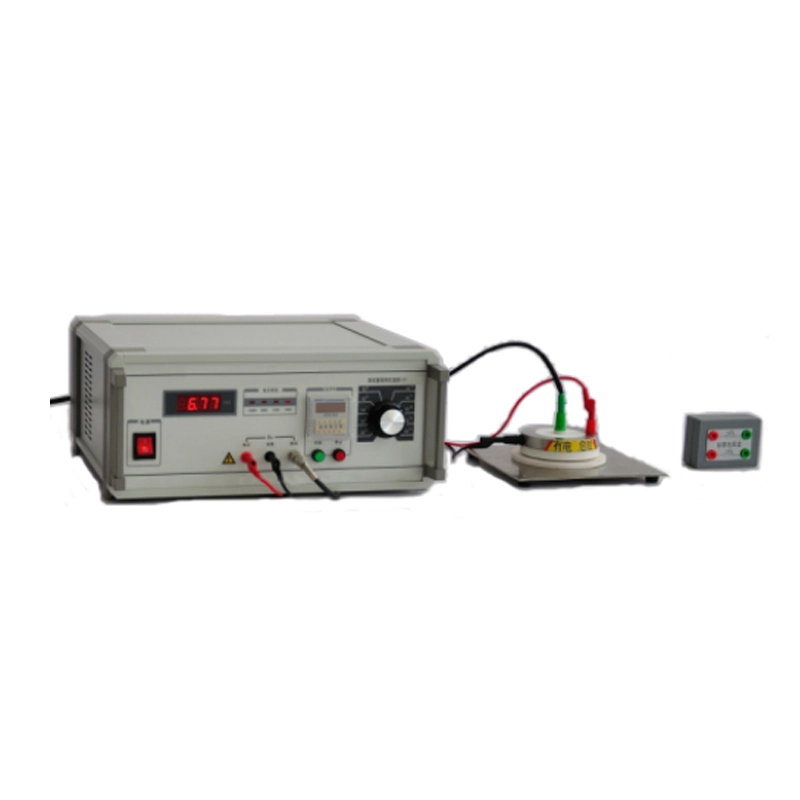

This Surface and Volume Resistivity Meter uses the three-electrode method to test the sample, the test apparatus: flat electrode device and the impedance meter two parts.
The Surface and volume resistance tester basic principle is applying different gear DC voltage to the samples. The weak current flows through the sample and magnified by standard resistance and read from the megger. The figure direct display the resistance value, high precision, fast display, good stability, easy reading.
Standard
GB/T 12703.4, GB/T 1410, GB/T 22042, IEC 60093, EN 1149-1, DIN 54345-1, AATCC 76
Product Parameters
Fabric Material Resistivity Tester Key Specification
Model | GT-C103 |
Measuring range | 1×105Ω ～1.999×1014Ω |
Testing voltage | 100V, 250V, 500V, 1000V |
Laboratories environment | Temperature: 20℃±2℃, Humidity: 35%±10%RH |
Zero drift | ＜±5% |
Basic error of resistance measurement | ≤±10% |
Power Supply | 1∮ AC 220V 50/60Hz |
Weight | 40kg |
Dimensions | 400x400x500mm |
Accessories
Standard accessories | 1pc | Test electrode |
1pc | Standard resistance box | |
1pc | Power line |
