Fabric Pneumatic Bursting Strength Testing Machine GT-C12B

这里可以自定义设置

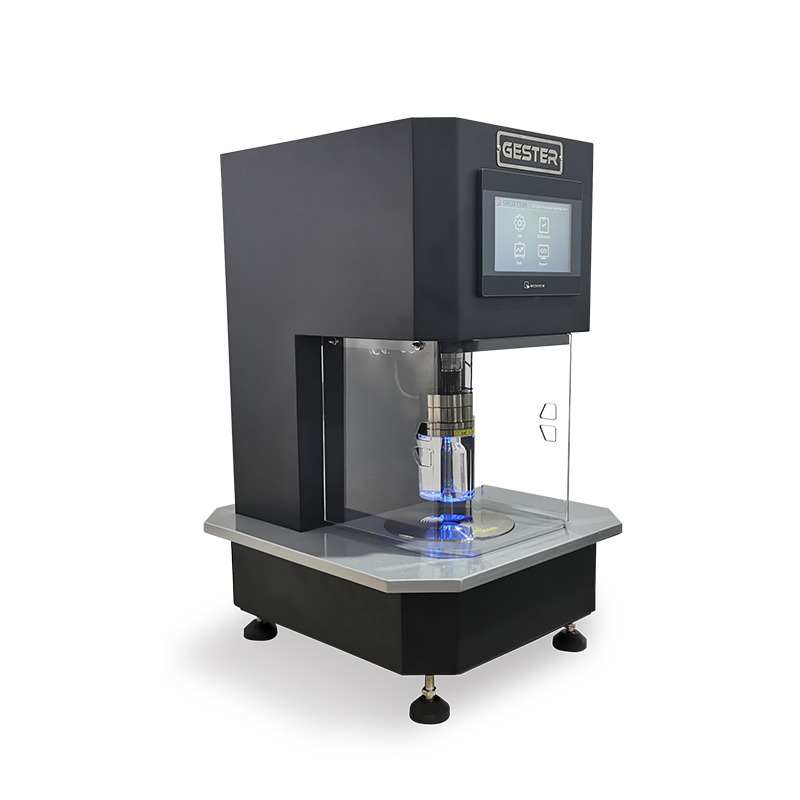

Fabric Pneumatic Bursting Strength Testing Machine GT-C12B
B站不支持收货地址
B站不支持库存规格
Model:
GT-C12B
MOQ:
1 Piece
Place of Origin:
Quanzhou,China(Mainland)
Brand
GESTER
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容
这里可以自定义设置

Application



This Textile Testing Equipment For determining the bursting strength of woven or knitted fabrics, non-woven, paper, leather and board by application of a pneumatic load under a rubber diaphragm of a specific area. Provide with a digital readout of pressure with peak value hold facility, renewable rubber diaphragms, and manual clamping device with acrylic bell, forward reverse and neutral drive system. Provide accurate elongation information of fabrics, up to 0.1mm.



Feature:

  1. 1.This bursting strength tester use pneumatic method, meet multinational standards and equipped with several changeable test clamp.

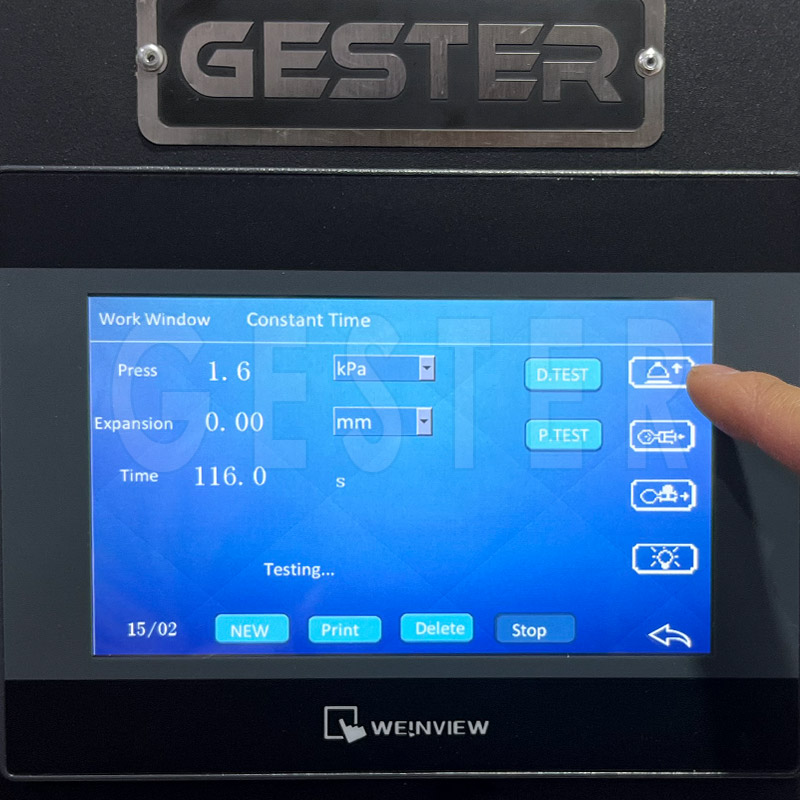

  2. 2.The simple interface touching screen controller is easy and simple to handle.
  3. 3.The specimen was clamped firmly by the pneumatic force which can also save effort.

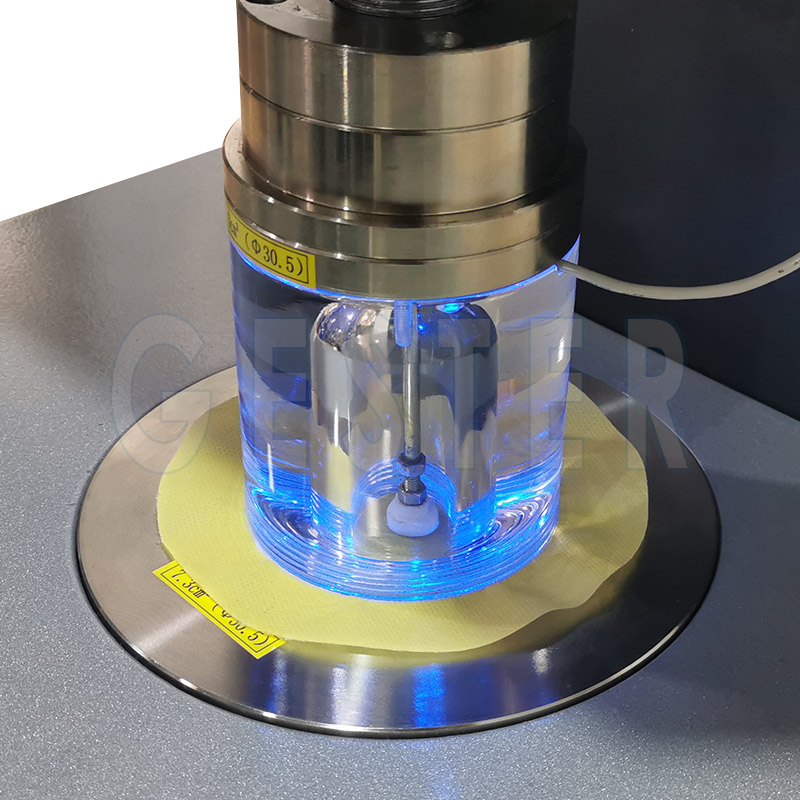

  4. 4.The test cover was made up of high-transparent glass with LED light inside which can observe the specimen easily
  5. 5.The Bursting Strength Testing Machine can induct the burst automatically which is much more sensitive and reliable.
  6. 6.The bursting distension can go up to 75mm.
  7. 7.The AC servo drive system with low noise and wide range of applications.
  8. 8.Pneumatic Bursting Strength Tester Test Methods: Constant Time Bursting.
  9. 9.The tester bring saving and printing functions and support on-line operation.

10.Provide on-line interfaces, professional detection software which can be used to analysis testing result.



Product Parameters

Key Specification

Model

GT-C12B

Range



1.50Mpa

The min. division value



0.002Mpa

Test area

7.3 cm2(Φ30.5mm), 10 cm2 (Φ35.7mm),

1250px2 (Φ79.8mm),  100 cm2( Φ112.8mm) can be option

Thickness of rubber diaphragm

≤2mm

Pressure speed

10ml/min - 500ml/min

Maximun expansion height

75 ± 0.02mm

Testing units

Kpa, kgf/ cm2, atm, mmHg, lb/in2  free shift

Test method

Constant Time Bursting

Output

Printer, display output, and can be connected to the computer

Power supply

AC 220V 50/60HZ  200W

Dimensions

600×400×530mm

Weight

200 kg

Standards

FZ / T60019ISO2960ASTM D3786MS P27JIS L-1096ISO 13938-2



Accessories

Standards accessories

1set

Test set of 182.5px²(φ30.5mm)

1set

Test set of 1250px²(φ79.8mm)

1pc

Wrench

1pc

Stainless steel calibration plate

1pc

Rubber diaphragm

1pc

English operation software

1pc

Cable connect with PC

Optional accessories

Optional

Other test set

Optional

Rubber diaphragm



Optional

Air compressor
