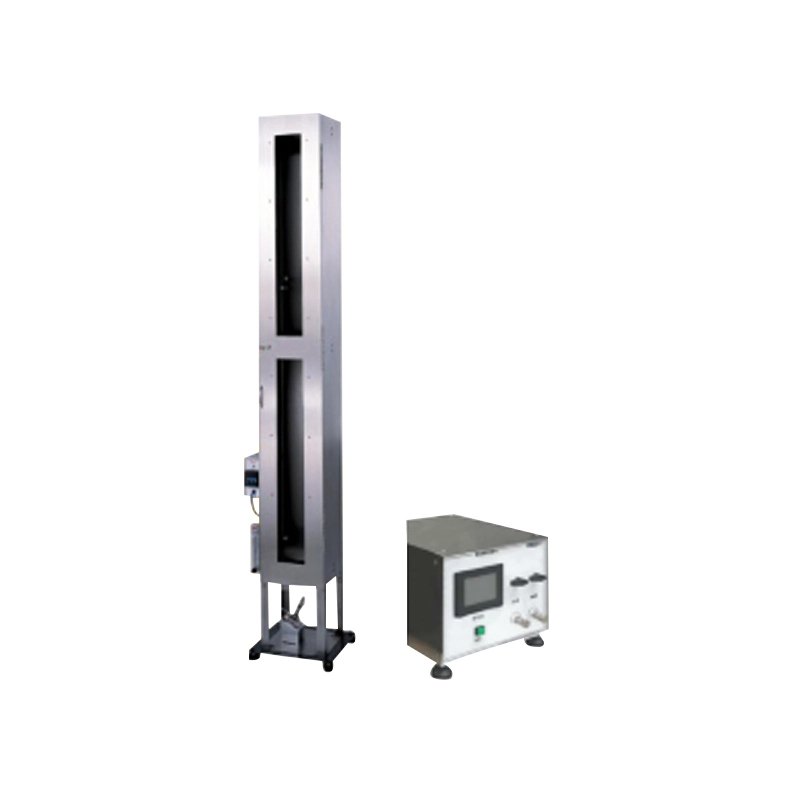

Flame Propagation Tester GT-C73
5.0
Model:
GT-C73
MOQ:
1 Piece
Place of Origin:
Quanzhou,China(Mainland)
Brand:
GESTER
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Application
This machine is designed as per NFPA 701 method 2, which is used to assess the propagation of flame beyond the area exposed to the ignition source.
Features
- 1.External material: SUS#303 stainless steel of 1.5mm
- 2.Burner control: Push forward and backward guide rail, automatic timing in place
-
3.Grips material: stainless steel
-
Control System - 1. Controller: Seven-inch color touch screen controller, program automatic control
- 2. Ignition method: Panel type button for automatic ignition
-
3. Timing: Burner in place automatic timing, hand-held button recording combustion time, designed for fume hood test
-
Product Parameters
Key Specifications
Model | GT-C73 |
Interior dimension | 305*305*2130mm (W*L*H) |
Exterior dimension | 655*315*2550mm (W*L*H) |
Fire height | 10-400mm |
Fire angle | 25° |
Range of burning time | 0-99.99S |
Afterburner timing range | 0.01s~99.99s |
Burning timer resolution | 0.01s |
After-flame and after-burn time resolution | 0.01s |
Burner | Comply to ASTM5027 |
Inner diameter of burner | 9.5mm Length: 100mm |
Standards | NFPA 701 Method 2 |
