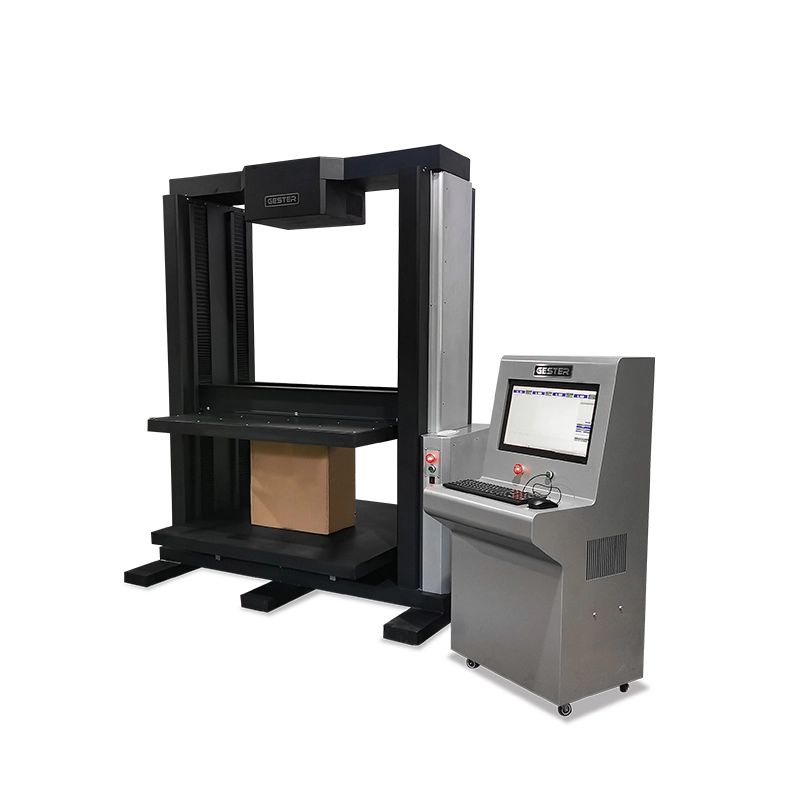

Four-column Box Compression Testing Machine Computer Control GT-N02D
Application
This Box Compression Testing Machine uses high-precision force sensor to test the resistance value of pressure and display it directly. The most direct equipment for testing the pressure resistance of containers made of cardboard or other materials. It is used to determine the cargo capacity and stacking height of the carton. It is suitable for the compression and holding test of various packages and cartons. The Box Compression test results can be used as an important reference for the stacking height of the finished packaging box or an important basis for packaging box designing.
Feature
- 1.Power system: servo motor + servo drive + worm gear reducer + ball screw.
- 2.Corrugated Box Testing Equipment Speed range: 0.001-500mm/min (adjustable).
- 3.After the test, it will automatically store and return to the origin.
- 4.Data transmission: RS232 transmission.
- 5.Bct Box Compression Test space: 2300×1500×2200mm (L×W×H).
- 6.Displacement: Encoder 1000 P/R, 4 times better accuracy.
- 7.Box Compression Testing Machine With LINE DRIVE encoder with anti-interference ability and strong displacement analysis 0.001mm.
- 8.Safety device: overload emergency stop device, upper and lower stroke limit device, leakage automatic power off system, automatic interrupt stop function.
-
9.Carton Compression Tester Manual control mode: increase the manual operation box.
Product Parameters
Key Specifications
Model | GT-N02D-1 | GT-N02D-2 | GT-N02D-N |
Platen Size (mm) | 1200×1200 | 1600×1600 | Customized |
Max. Stroke | 1200 | 1600 | Customized |
Capacity | 30KN, 50KN, 70KN, 100KN (optional) | ||
Accuracy | ±0.5% | ||
Unit | International units(switch freely) | ||
Control System | Motor + servo system | ||
Induction Mode | High precision load cell | ||
Display | Computer screen display | ||
Test Speed | 0.001-500mm/min adjustable (standard speed 12.7mm/min) | ||
Return Speed | 0.001-500(adjustable) | ||
Holding Function | With Holing Function(holding time / weight can be set) | ||
Accessories
High precision ball screw | 1set | Taiwan HIWIN high precision ball screw |
Load sensor | 4pcs | GESTER bridge type sensor with high linearity and 0.5% accuracy |
Motor and Servo System | 1set | A set of Taiwan Delta servo motor to control displacement accuracy achieve 0.001mm |
Chinese version Professional Test Software Based on Windows System | 1set | GESTER's self-developed system,equipped with a set of driver CDs, which can be installed on any computer. |
