is carefully engineered at a materials level. Factors such as reflectivity, diffusion, texture, and elasticity are taken into serious consideration.
The product is characterized by its corrosion resistance. It has been treated with chemical or acid-base liquid to enhance its chemical properties.
By removing the particles and stains out, the product works well in supplying pool owners with a clean, hygienic, and clear swimming condition.

Product Advantage

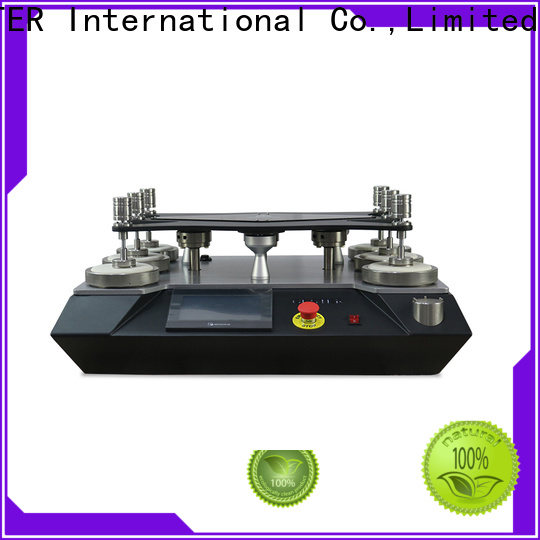

To determine the abrasion and pilling resistance of all kinds of textile structures. Samples are rubbed against known abradents at low pressures and in continuously changing directions and the amount of abrasion or pilling is compared against standard parameters.

Key Specification

Model		GT-C13B-4	GT-C13B-6		GT-C13B-8			GT-C13B-9
Working Positions		4	6		8			9
Control Mode		PLC control and touch screen display
Counter Range		0~999999 times
Test Pressure	Abrasion Test	A）Specimen holder: (198 ±2)g B) Larger loading piece: (597±5)g C) The sum mass:（795± 7)g , for workwear , upholstery, bed linen and fabrics for technical use ( nominal pressure of 12kpa)
		A）Specimen holder: (198 ±2)g B) Smaller loading piece:(397±5)g C) The sum mass: (595± 7)g , for apparel and household textiles , excluding upholstery and bed linen (nominal pressure of 9kpa)
	Pilling Test	A）Stainless steel loading piece: (155 ± 1) g B) Specimen holder: (260 ± 1)g C) The sum mass:（415± 2)g
Holder Effective Diameter		A) Abrasion Holder : Φ(28.65 ± 0.05)mm
		B) Pilling Holder : Φ(90 ± 0.10)mm
Rotational Speed		50± 2r/min
Pressing Weight		Mass : (2.5 ± 0.5) kg
		Diameter: Φ(120 ± 10) mm
Power Supply		AC220V 50/60Hz
Dimensions(L x W x H)		60×55×41cm		88×61×41cm		90×62×41cm	90×62×41cm
Weight		75kg		130kg		145kg	150kg

s******q

GESTER Instruments is elaborately manufactured using the latest advanced technology and production method.

z******f

GESTER Instruments is designed by designers with innovative ideas. It is of attractive appearance attracting many customers' eyes and thus has a promising market prospect with its fashionable design.

a******j

The raw materials of GESTER Instruments are paid 100% attention during selecting. The defective raw materials are all eliminated before entering the factory and thus they are of high performance.

r******u

GESTER Instruments is endowed with exceptional appearance. Its beautiful design comes from our exclusive designers with strong innovation and design capabilities.

r******j

GESTER Instruments is of various modern and stylish designs.

n******q

With scientific structure and multiple functions, our is unique.
