is carefully engineered at a materials level. Factors such as reflectivity, diffusion, texture, and elasticity are taken into serious consideration.
The product is characterized by its corrosion resistance. It has been treated with chemical or acid-base liquid to enhance its chemical properties.
By removing the particles and stains out, the product works well in supplying pool owners with a clean, hygienic, and clear swimming condition.

Product Advantage

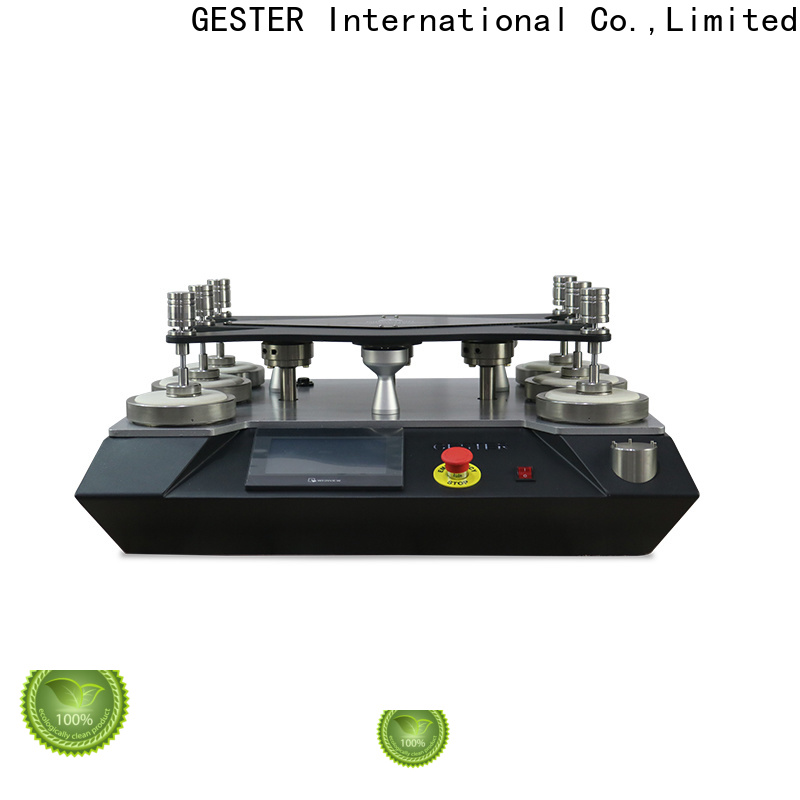

To determine the abrasion and pilling resistance of all kinds of textile structures. Samples are rubbed against known abradents at low pressures and in continuously changing directions and the amount of abrasion or pilling is compared against standard parameters.

Key Specification

Model		GT-C13B-4	GT-C13B-6		GT-C13B-8			GT-C13B-9
Working Positions		4	6		8			9
Control Mode		PLC control and touch screen display
Counter Range		0~999999 times
Test Pressure	Abrasion Test	A）Specimen holder: (198 ±2)g B) Larger loading piece: (597±5)g C) The sum mass:（795± 7)g , for workwear , upholstery, bed linen and fabrics for technical use ( nominal pressure of 12kpa)
		A）Specimen holder: (198 ±2)g B) Smaller loading piece:(397±5)g C) The sum mass: (595± 7)g , for apparel and household textiles , excluding upholstery and bed linen (nominal pressure of 9kpa)
	Pilling Test	A）Stainless steel loading piece: (155 ± 1) g B) Specimen holder: (260 ± 1)g C) The sum mass:（415± 2)g
Holder Effective Diameter		A) Abrasion Holder : Φ(28.65 ± 0.05)mm
		B) Pilling Holder : Φ(90 ± 0.10)mm
Rotational Speed		50± 2r/min
Pressing Weight		Mass : (2.5 ± 0.5) kg
		Diameter: Φ(120 ± 10) mm
Power Supply		AC220V 50/60Hz
Dimensions(L x W x H)		60×55×41cm		88×61×41cm		90×62×41cm	90×62×41cm
Weight		75kg		130kg		145kg	150kg

h******q

Loaded with all the features, the Textile Testing Machine is known in the markets. The product is energy-saving, consuming little energy

j******z

Textile Testing Machine is a result of Chinese workmanship – from design engineering through to fabrication. Its production only relies on highly qualified staff and on state-of-the-art facilities. The product is hygiene with no bacteria or mold built up

m******n

Confirmed design: the design of GESTER Instruments Textile Testing Machine has been confirmed by users, which combines both functionality and aesthetics and is carried out by a team of talents. The product is widely used for commercial applications

c******c

The source of raw materials: before GESTER Instruments Textile Testing Machine comes out, it is processed from high quality raw materials. These materials are sourced from several different places within and out of the region. The product is energy-saving, consuming little energy

k******n

Strong designer team: GESTER Instruments Textile Testing Machine is designed by our design team who are powerful with professional design knowledge. They are also well-trained to put forward design concept and complete the design in a short time. The product has the advantage of low failure rate

r******j

The product features user-friendliness. It has the desired functions that are developed based on the actual needs to support different kinds of operations. The product is carefully designed with all NSF approved components
