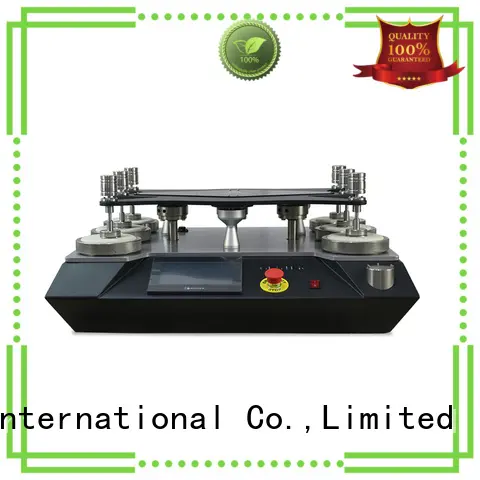

GESTER rotary abrasion tester supplier for test
-
is carefully engineered at a materials level. Factors such as reflectivity, diffusion, texture, and elasticity are taken into serious consideration.
-
The product is characterized by its corrosion resistance. It has been treated with chemical or acid-base liquid to enhance its chemical properties.
-
By removing the particles and stains out, the product works well in supplying pool owners with a clean, hygienic, and clear swimming condition.
1. When designing GESTER linear abrasion tester, the design team invests plenty of time in market research on packing and printing industry. Meanwhile, they are trying best to bring innovative ideas into this product as many as possible.
2. The product has the advantage of softness and smoothness. Some chemical softeners have been added to its fabric to soften the hard substances.
3. The product features the desired hardness. It is made from the agglomeration of stone-like substances bound together with resins before being pressed into sheets.
4. We are a leading and popular provider of rotary abrasion tester.
5. GESTER International Co.,Limited has a complete rotary abrasion tester product range, advanced production technology and strong technology R&D capabilities.
To determine the abrasion and pilling resistance of all kinds of textile structures. Samples are rubbed against known abradents at low pressures and in continuously changing directions and the amount of abrasion or pilling is compared against standard parameters.
Key Specification
Model | GT-C13B-4 | GT-C13B-6 | GT-C13B-8 | GT-C13B-9 | ||||
Working Positions | 4 | 6 | 8 | 9 | ||||
Control Mode | PLC control and touch screen display | |||||||
Counter Range | 0~999999 times | |||||||
Test Pressure
| Abrasion Test | A）Specimen holder: (198 ±2)g B) Larger loading piece: (597±5)g C) The sum mass:（795± 7)g , for workwear , upholstery, bed linen and fabrics for technical use ( nominal pressure of 12kpa) | ||||||
A）Specimen holder: (198 ±2)g B) Smaller loading piece:(397±5)g C) The sum mass: (595± 7)g , for apparel and household textiles , excluding upholstery and bed linen (nominal pressure of 9kpa) | ||||||||
Pilling Test | A）Stainless steel loading piece: (155 ± 1) g B) Specimen holder: (260 ± 1)g C) The sum mass:（415± 2)g | |||||||
Holder Effective Diameter | A) Abrasion Holder : Φ(28.65 ± 0.05)mm | |||||||
B) Pilling Holder : Φ(90 ± 0.10)mm | ||||||||
Rotational Speed | 50± 2r/min | |||||||
Pressing Weight | Mass : (2.5 ± 0.5) kg | |||||||
Diameter: Φ(120 ± 10) mm | ||||||||
Power Supply | AC220V 50/60Hz | |||||||
Dimensions(L x W x H) | 60×55×41cm | 88×61×41cm | 90×62×41cm | 90×62×41cm | ||||
Weight | 75kg | 130kg | 145kg | 150kg | ||||
Company Features
1. As a strong competitor in the market, GESTER International Co.,Limited has reached a peer leader level in virtue of strong manufacturing capability.
2. Our manufacturing plant adopts a production control system. The objective of this system is that the highest efficiency in production is obtained by producing the required in time and in the best and cheapest method possible.
3. We formulate plans on environmental protection, energy and resources conservation. We bring in infrastructure that mainly disposes of wastewater and waste gases. Besides, we will have strict control over resources use. We hope to be satisfied with the long-term customer satisfaction of our products. We know that only when you can see a good job, the brand's image and name can get real value. Call now! We will continue to provide customers with quality and perfect customer service. Call now!
