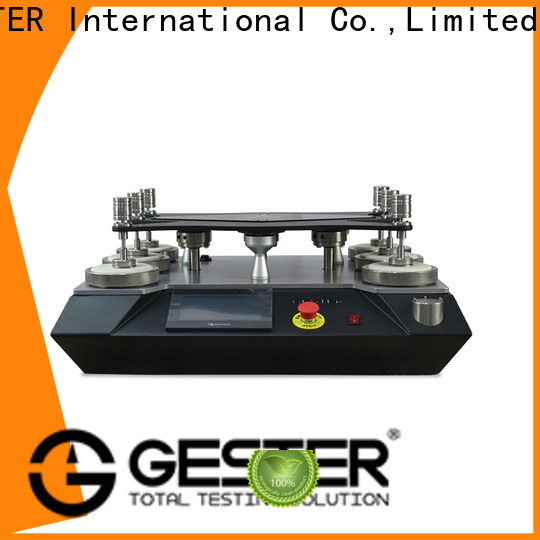

universal martindale pilling tester standard for lab

Latest products

AATCC TM16 Suntest & Xenon Arc Tester GT-D01

Paper Tube Crush Tester GT-N14

Pneumatic Sample Cutting Press GT-C48-2

Double-Roller Tumble Test Machine GT-N03-2

Product Information
Feedback

is carefully engineered at a materials level. Factors such as reflectivity, diffusion, texture, and elasticity are taken into serious consideration.
The product is characterized by its corrosion resistance. It has been treated with chemical or acid-base liquid to enhance its chemical properties.
By removing the particles and stains out, the product works well in supplying pool owners with a clean, hygienic, and clear swimming condition.

Product Advantage

Company Advantages
1. Every detail of GESTER pilling test machine reflects the exquisite craftsmanship. Its coating has been treated by high temperature, enabling users to maintain it more easily
2. The offered product is widely appreciated among our clients for these features. Adopting stainless steel as the key materials, it is not easy to crack
3. The martindale pilling tester we manufacture is of easy maintaince. The product is widely accepted for its abrasion resistance
4. Because martindale pilling tester have a lot of merit, such as pilling test machine, and etc. , it is for sure that martindale pilling tester will have a bright future. Aluminum alloy is applied to the product to prevent distortion

To determine the abrasion and pilling resistance of all kinds of textile structures. Samples are rubbed against known abradents at low pressures and in continuously changing directions and the amount of abrasion or pilling is compared against standard parameters.

Key Specification

Model		GT-C13B-4	GT-C13B-6		GT-C13B-8			GT-C13B-9
Working Positions		4	6		8			9
Control Mode		PLC control and touch screen display
Counter Range		0~999999 times
Test Pressure	Abrasion Test	A）Specimen holder: (198 ±2)g B) Larger loading piece: (597±5)g C) The sum mass:（795± 7)g , for workwear , upholstery, bed linen and fabrics for technical use ( nominal pressure of 12kpa)
		A）Specimen holder: (198 ±2)g B) Smaller loading piece:(397±5)g C) The sum mass: (595± 7)g , for apparel and household textiles , excluding upholstery and bed linen (nominal pressure of 9kpa)
	Pilling Test	A）Stainless steel loading piece: (155 ± 1) g B) Specimen holder: (260 ± 1)g C) The sum mass:（415± 2)g
Holder Effective Diameter		A) Abrasion Holder : Φ(28.65 ± 0.05)mm
		B) Pilling Holder : Φ(90 ± 0.10)mm
Rotational Speed		50± 2r/min
Pressing Weight		Mass : (2.5 ± 0.5) kg
		Diameter: Φ(120 ± 10) mm
Power Supply		AC220V 50/60Hz
Dimensions(L x W x H)		60×55×41cm		88×61×41cm		90×62×41cm	90×62×41cm
Weight		75kg		130kg		145kg	150kg

Company Features
1. GESTER International Co.,Limited supply and manufacture in a large scale.
2. GESTER International Co.,Limited has exceptional research and development potency.
3. GESTER International Co.,Limited will constantly blaze new trails to provide the best quality products to global markets. Ask!

u******t

Our pilling test machine is rich in modern design and delicate production. This product has improved safety, which is resistant to overcharge

y******m

martindale pilling tester has scientific conception and reasonable structure. This product features relatively low self-discharge

j******x

Materials used for pilling test machine is periodically renovate to make it own best properties. This product has no memory effect

e******n

The material, production, design of martindale pilling tester comply with international regulations.

h******a

It is a great addition for martindale pilling tester to design pilling test machine. The energy depletion barely affects its power delivery

k******h

pilling test machine Made of high-quality raw materials, it has good corrosion resistance, impact resistance and oxidation resistance, and it is not easy to deform and rust even after long-term use.
