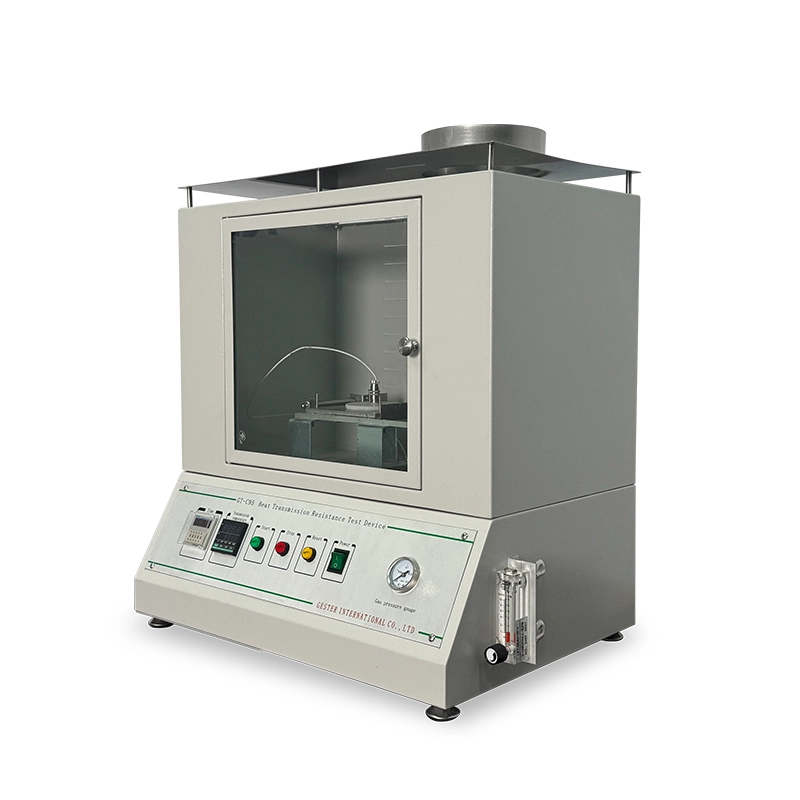

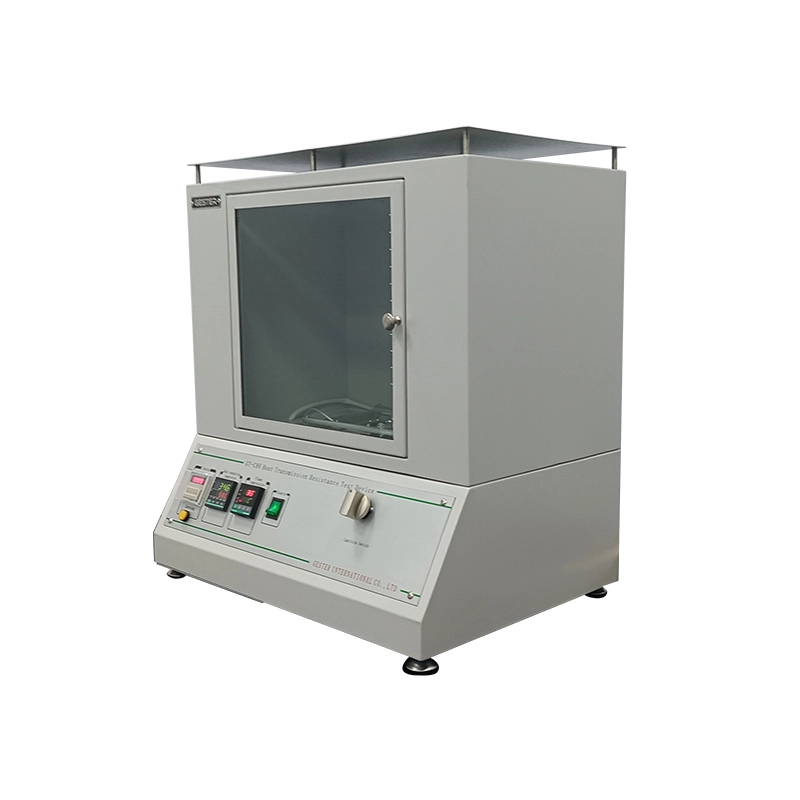

Heat Transfer Index Tester Fire Testing Equipment GT-C95
Heat Transfer Index Tester Fire Testing Equipment GT-C95
To determine the heat transmission performance of textiles, fire-fighting supplies and other materials.
Put sample on the a certain amount of heat flux fire source, test the time of temperature increasing specified value (△t=24℃) by calorimeter sample’s back. And refer it as index of judging heat conduction property.
Feature
1. Can be digital display flame temperature, measurement temperature, time.
2. The burner is suitable for combustion of oil gas in the flame nozzle, air holes in Inner-Ring-and-Outer-Ring, calorimeter located inside holes on upper sample holder, which directly touch with sample.
Our team
Heat Source | Liquefied Petroleum Gas |
Density of Heat Flow Rate | ≧40KW/ |
Counting Range | 0～100s |
Temperature Measure Range | 20℃～200℃ |
Sample Dimension | 145×145mm |
Calorimeter Diameter | Φ40 |
Power Supply | 1∮ AC 220V 50/60Hz 1.5KW |
Standards | EN367, ISO 9151 |
Accessories
Standards accessories | 1pc | Clamp |
| 1pc | Power Line |
Optional accessories | Optional | GT-C48 Pneumatic Sample Cutter |
| Optional | Cutting Die |
