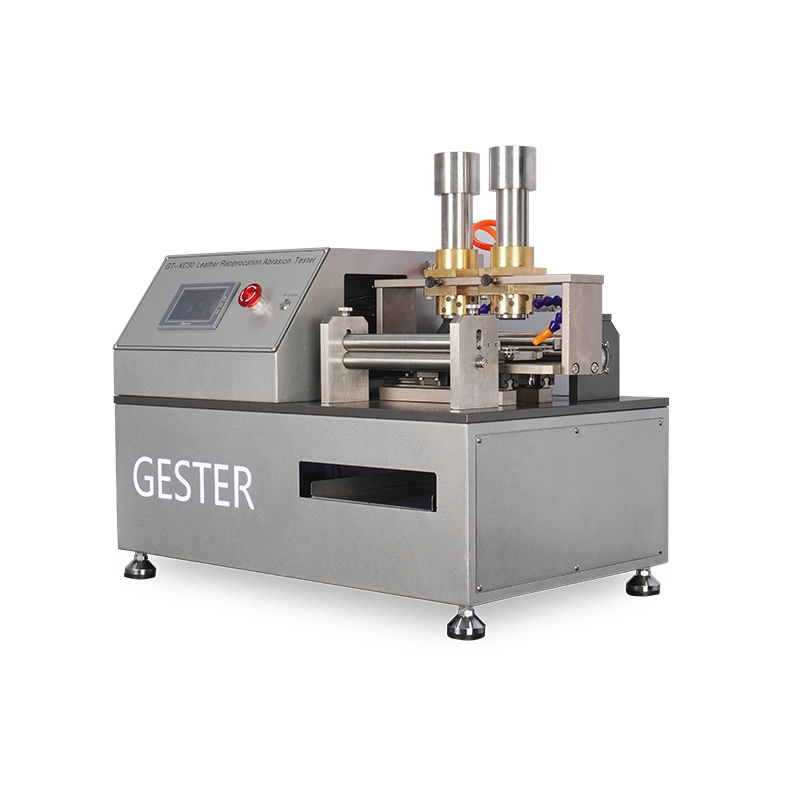

IS 6721 Leather Reciprocation Abrasion Tester GT-KC30
IS 6721 Leather Reciprocation Abrasion Tester GT-KC30
Overview
The IS 6721 Leather Reciprocation Abrasion Tester GT-KC30 is an advanced testing instrument designed to evaluate the abrasion resistance of sole leather. It is an essential tool for footwear manufacturers, research laboratories, and quality control departments, ensuring the durability and reliability of leather soles under rigorous usage conditions.
Key Features
Precise Testing Mechanism: Incorporates reciprocating movement to simulate real-world abrasion conditions on sole leather.
Dual Specimen Capability: Accommodates two square test specimens simultaneously for efficient comparative analysis.
Dust Removal System: Equipped with a built-in suction system to clear dust during testing, maintaining consistent abrasive action.
Continuous Abradent Feeding: Ensures a uniform abrasive effect for accurate and repeatable results.
Robust Construction: Designed for long-term durability and consistent performance in high-volume testing environments.
Application
This tester is specifically developed to measure the abrasion resistance of sole leather used in footwear manufacturing. By replicating the wear patterns experienced in actual use, it provides critical insights into the material's longevity and performance.
Testing Principle
The abrasion resistance is determined through a controlled process:
Specimen Setup: Two square test specimens are placed in contact with a standard abradent.
Abrasion Simulation: The specimens are subjected to a backward and forward movement over the abradent under a fixed force.
Dust Management: A suction system removes dust generated during testing to maintain consistency in the abrasive action.
Data Collection: The abradent is continuously fed under the specimen, and the average rate of thickness reduction per thousand cycles is calculated, excluding the final 1.0 mm of the material.
Key Specification
Model | GT-KC30 |
Position | 2 |
Area of testing head | 25.5 mm × 25 mm |
Movement speed | 30 ± 5 times / min. |
Rubbing stroke | 216 mm |
Rubbing finger mass | 35.0 N ± 0.5 N |
Sample size | 25 mm ± 0.5 mm square |
Abrasive paper | Coated with silicone carbide of grit size 80 X |
Power supply | 1∮AC 220V 50/60HZ |
Dimensions (L x W x H) | 770x450x550mm |
Weight | About 100kg |
Standards | IS 6721-2023 ANNEX B |
Accessories
Standards accessories | 2pcs | Steel plates |
1pc | Power line |
