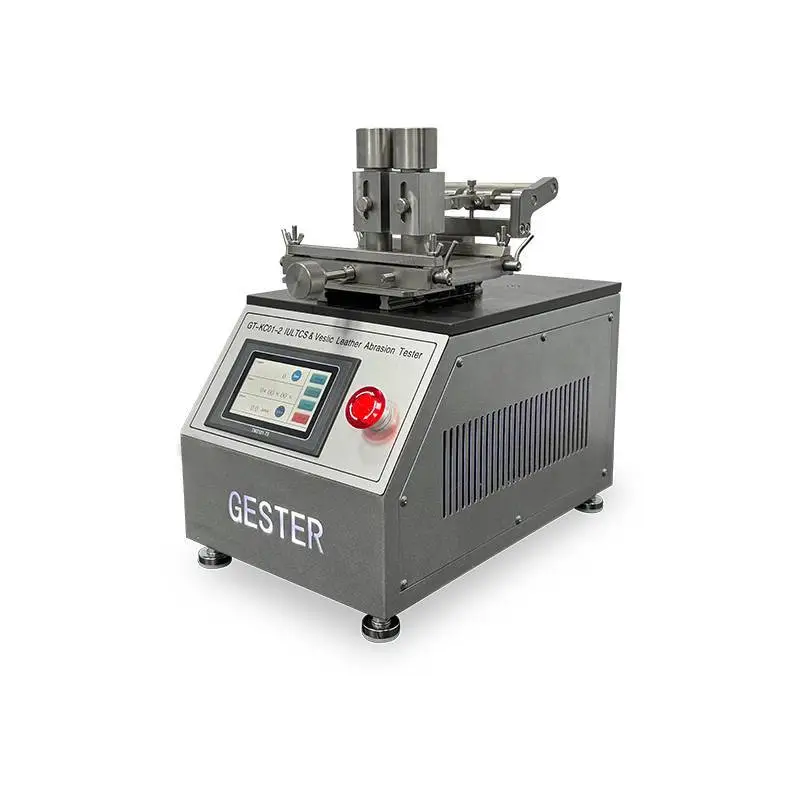

IULTCS & Veslic Leather Abrasion Tester 2 Position GT-KC01-2
Brief Introduction of the product
Application
This IULTCS & Veslic Leather Abrasion Tester is used for color fastness testing of leather, plastic and textile. Under the specified pressure, let white wool felt to do reciprocating abrasion to the surface of dye sample. After a specified count, to assess the color fastness of sample by checking the color change and fading of sample and the discoloration of white wool felt. It can be used for dry abrasion testing and wet abrasion test.
Standards
DIN 4843, ISO 11640, SATRA PM 173, AS/NZS 2210.2 section7.3
QB/T 2537, GB/T 20991 section 7.3, ISO 20868, GB/T 40920
EN ISO20344 section 7.3, ISO 17700 Method A, GE-29
Model | GT-KC01-2 |
Position | 2 |
Area of testing head | 15mm x 15mm |
Movement speed | 40 ± 2 times / min. |
Rubbing stroke | 35~40 mm |
Rubbing finger mass | 500g |
Additional weight mass | 500g |
Fixtures distance | 80mm |
Sample size | 120x20mm |
Tension extension range of sample | 0 ~ 20% |
Power supply | 1∮AC 220V 50/60HZ |
Dimensions (L x W x H) | 490x420x550mm |
Weight | 40kg |
Accessories
Standards accessories | 2pcs | 500g Weights |
1pc | Power line | |
Optional accessories | Optional | Standard wool pads |
Optional | GT-KD20 Pneumatic sample cutting machine (Cutter: 120x20mm) | |
Optional | Gray Scale for color change | |
Optional | Gray Scale for staining |
