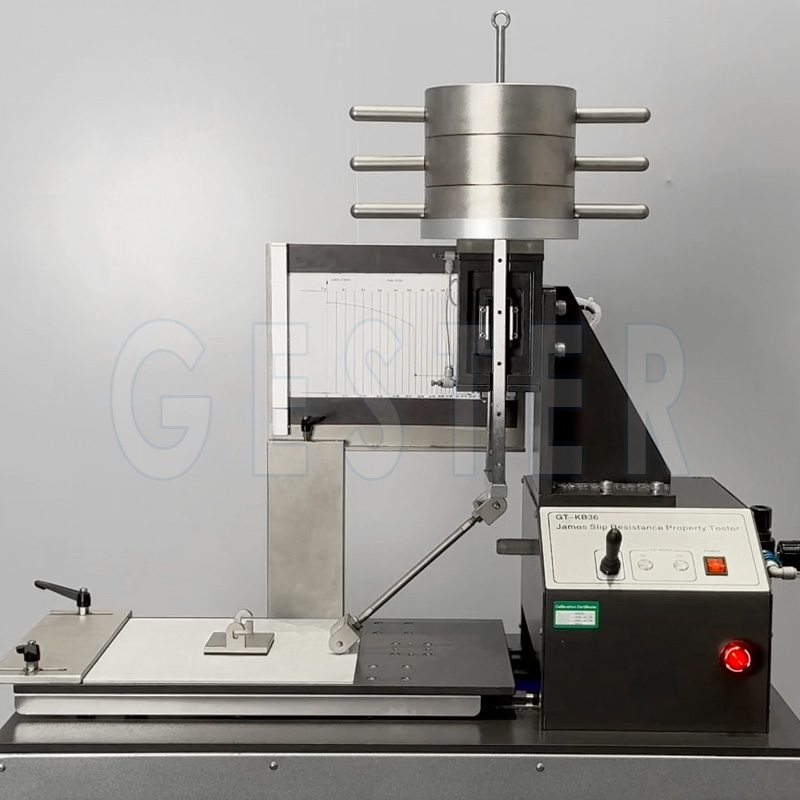

JAMES Slip Resistance Testing Machine GT-KB36
Application
This JAMES Slip Resistance Testing Machine is designed to measure the dry static coefficient of friction of shoe sole and heel materials. By applying a specified load on a controlled walking surface, it calculates the tangent and perpendicular forces to determine the static coefficient of friction.
Key Specification
Weight | 25 lb x 3 pieces |
Weight supporter | 5 lb |
Speed of test table | 1``/ sec(25.4mm/sec) |

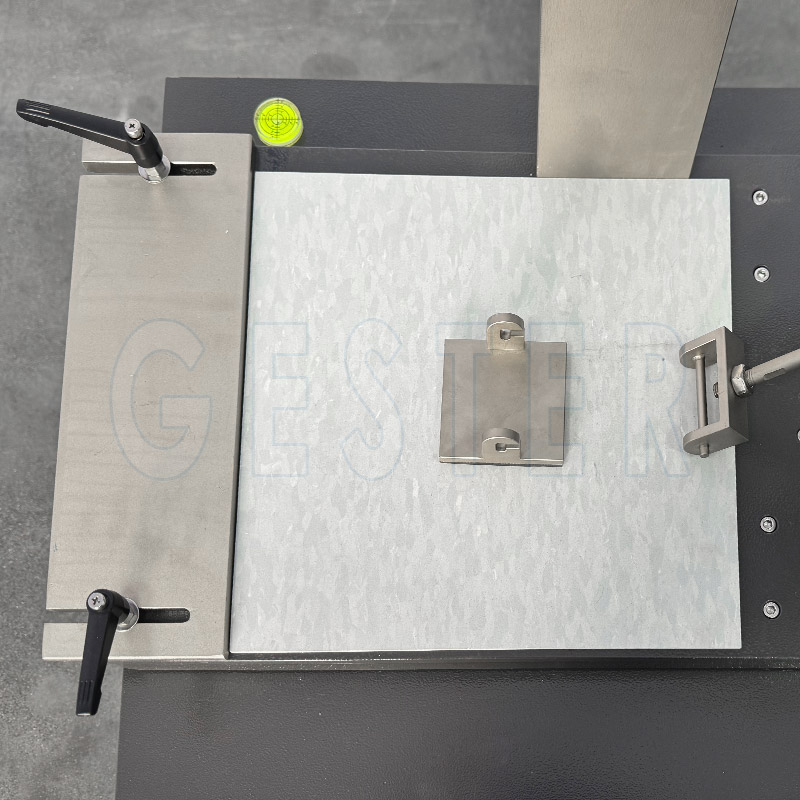

Area of test table | 12`` x 12`` (305 x 305 mm) |
Specimen (L x W x T) | 3``x 3``x 0.25` ( 76 x 76 x 6.4 mm) |
Power supply | 1∮AC 220V 50/60HZ |
Dimensions (W x D x H) | 102 x 52 x 180 cm |
Weight | 150 kg |
Standards | ASTM F489, ASTM D2047, UL 410 |
Accessories
Standards accessories
| 3pcs | Sample clamp plate |
10pcs | Recording paper | |
3pcs | 25Lb weights | |
1pcs | Power line | |
Optional accessories | Optional | Air compressor |
