Lab Padder Horizontal & Vertical GT-D19
5.0
Model:
GT-D19
MOQ:
1 Piece
Place of Origin:
Quanzhou,China(Mainland)
Brand:
GESTER
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Application
Laboratory Padder is suitable as dyeing and finishing padding mangle. The pressure transmission can be applied by means of pneumatic cylinder. It’s apply to pure cotton, T/C and other chemical fiber fabric.
Feature
- 1.Lab Padder Cloth speed controlled by inverter from 0-10m/min.
- 2.NBR rubber is applied for coating of roller, excellent erode-resistance, long life-time.
- 3.Two separate disc-shaped pneumatic cylinders control each end of roller to keep uniform pressure for whole rollers.
- 4.Padding mangle dyeing machine: brushed stainless steel surface, easy to clean and good appearance.
- 5.Removable liquor trough and spray head wash-down facility, free standing.
- 6.Laboratory standard compressed air supply required.
Product Parameters
Key Specification
Model | GT-D19-1 | GT-D19-2 |
Rollers position | Vertical | Horizontal |
Rollers width | 420mm | |
Rollers diameter | 130mm | |
Rubbers hardness | 70degree shore | |
Cloth speed | 0-10m/min | |
Standard pressure required | 0.6MPa | |
Retained dyestuff ratio | 40-80% | |
Power supply | 1∮AC 220V 50/60HZ | |
Dimensions ( L x W x H ) | 840 x 680 x 1450mm | 840 x 740 x 1100mm |
Weight | 140kg | |
Control mode | Pneumatic control | |
Accessories
Standard accessories | 1pc | Spray head |
1pc | Air blow gun | |
Optional accessories | Optional | Air compressor |

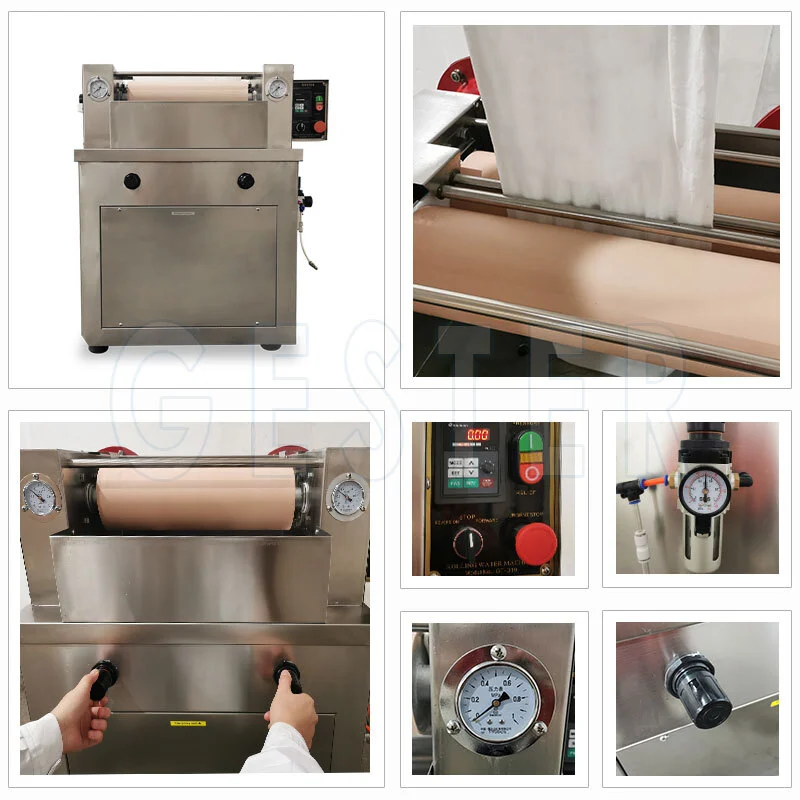

Product Details
Rubber Roller
Rubber Roller of Horizontal Type.
Rubber Roller
Rubber Roller of Vertical Type.
Control Panel
Start/stop key
E-stop key
Roller rotate direction
adjustment
Rotation speed counter
Put Sample
It is for machine internal ventilation
Front View
Front view of whole machine.
Side View
Side view of whole machine.
