LCD Control Shoes Bending Stiffness Tester GT-KA16

这里可以自定义设置
LCD Control Shoes Bending Stiffness Tester GT-KA16
B站不支持收货地址
B站不支持库存规格
Model:
GT-KA16
MOQ:
1 Piece
Place of Origin:
Quanzhou,China(Mainland)
Brand
GESTER
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容
这里可以自定义设置

Application

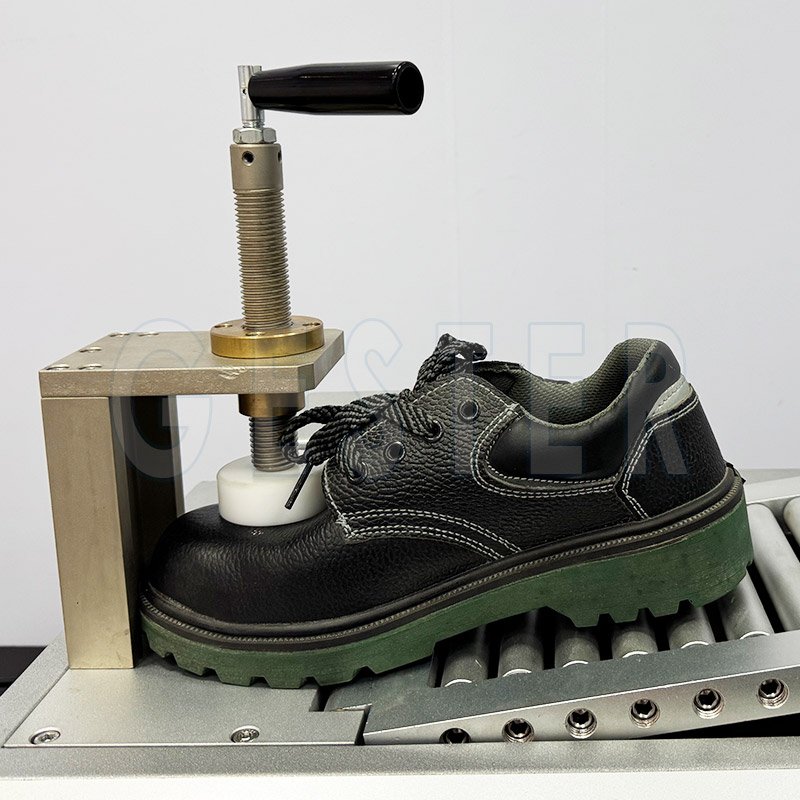

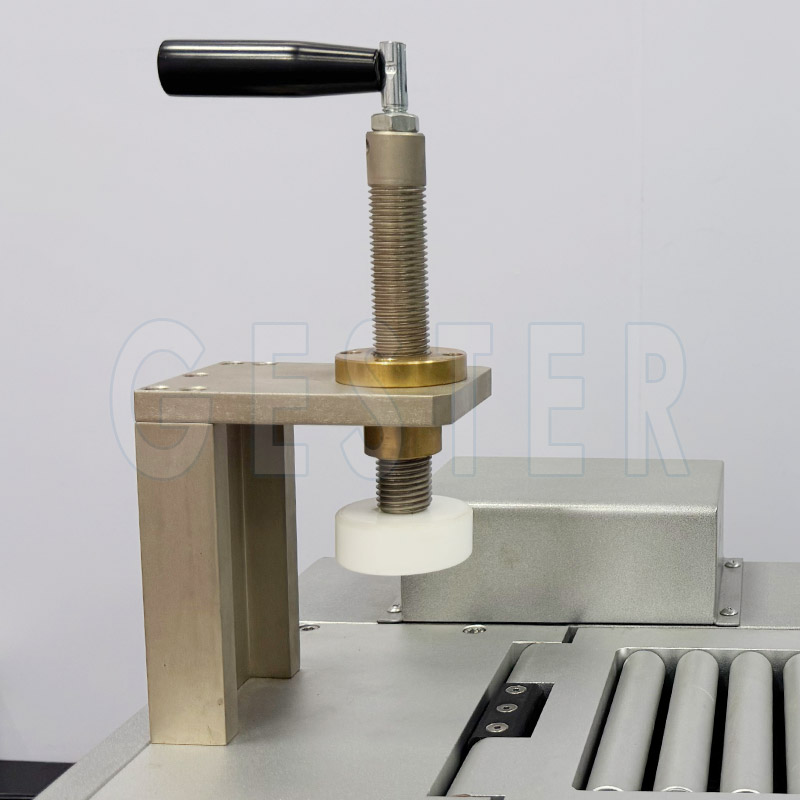

To measure bending resistance of whole shoes (France shoe Size 39, 42,and British shoe Size 6,Size 8). Clamp the forepart of footwear (confirming to 1/3 of palm shoes, located on shaft location), after motor launching, driving to pulley, to make shaft drive the turning board at 100mm/min to impose the strength of 30N to shoes in order to do test.





Feature

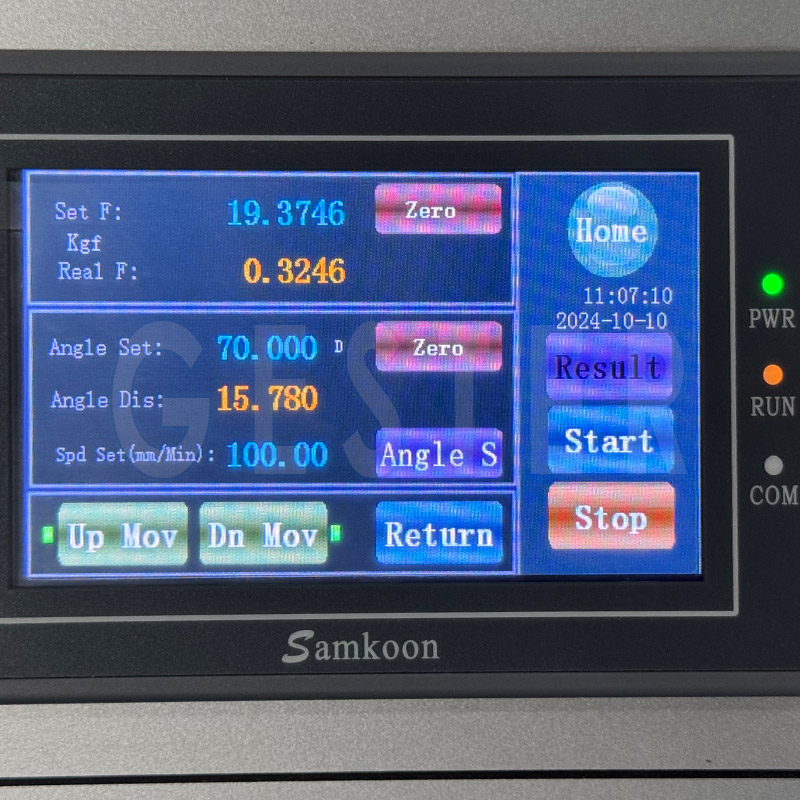

  1. 1.LCD control, easy operate, and display results digitally.

2.Shoes Bending Stiffness Tester Equip with a decoder on shaft, and inducting angle speed of turning board, showing the value through the display with accuracy of 0.1°

Product Parameters


Key Specification

Model

GT-KA16

Capacity

200 N

Bending speed

100mm/min (adjustable)

Sample size

French standard: Size 39, 42 ; British standard : Size 6, 8

Test load

30 N

Bending position

1/3 of shoes

Angle resolution

0.1°

Force resolution

1/50000

Measurement method

Fixed fore to display angle

Fixed angle to display force

Power

1∮AC 220V  50/60HZ  3A

Dimension (W×D×H)

50×45×53 cm

Weights

40kg



Standards

GB/T 20991 section 8.4.1

ISO 20344-2020 section 8.4.1

AS/NZS 2210.2 section 8.4.1

ISO 17707 section 4.2/T 20991 section 8.4.1

Standards accessories

1PC Power Line
