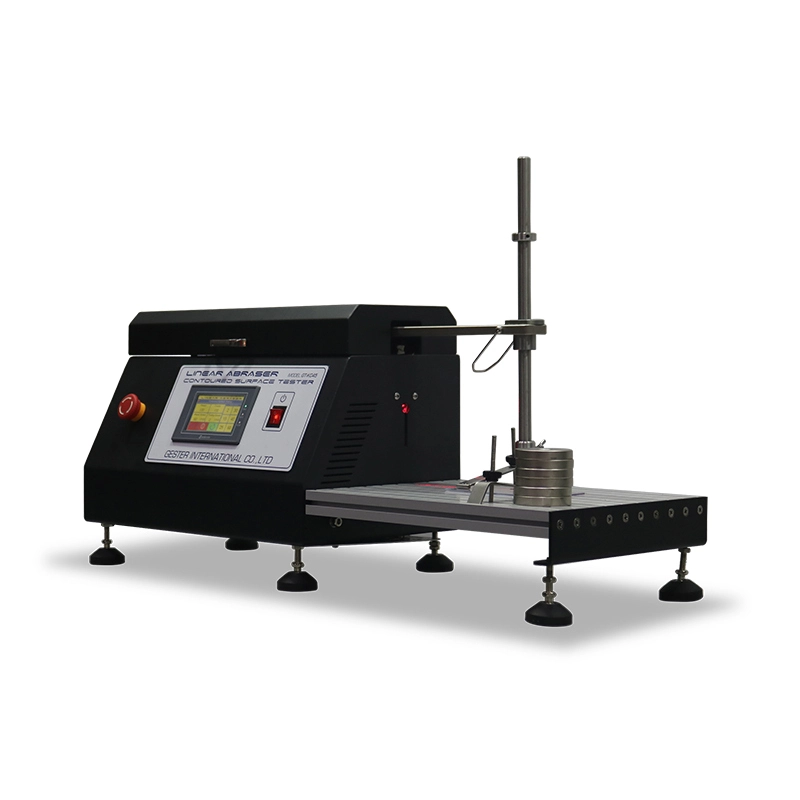

Linear Type Abrasion Tester GT-KC45
Application
The Linear Type Abrasion Tester is suitable for testing the abrasion resistance of plastic, auto parts, rubber, leather, textile, electroplating, paint and printing pattern and so on. Not only can be used for evaluate abrasion resistance of the product, but also can be used for evaluate the scratch resistance, single or multiple scratches and transitivity of color. Dry or wet abrasion test also can be carried out.
Product Parameters
Key Specification
Model | GT-KC45 |
Test station | 1 |
Test trip | 0~101.6mm(0~4in) ,can be adjusted |
Test speed | 2~72r/min ,can be adjusted |
Weights | 250g , 6pcs |
Friction head weight | 750g |
Load | 750g~2250g |
Control mode | PLC+touch screen |
Friction station aiming mode | Laser line aiming |
Dimensions(L*W*H) | 87x32x1300px |
Weight(KG) | ≈45Kg |
Power supply | 1∮AC 220V 50/60HZ |
Accessories
Standards accessories | 1pc | Abrasion platform |
1pc | Abrasion head | |
6pcs | 250g weights | |
1pc | Power line |
