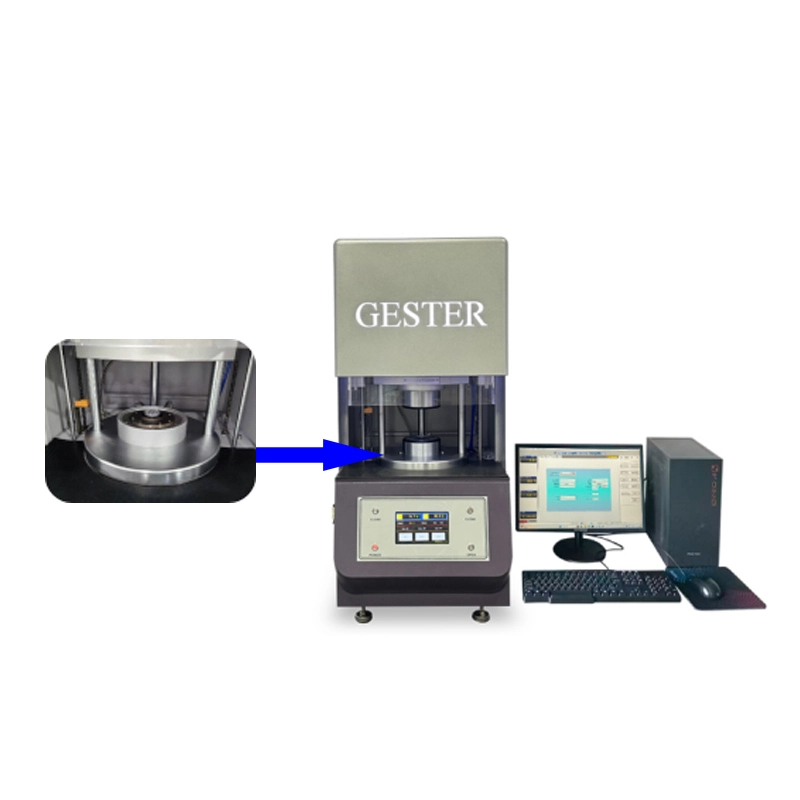

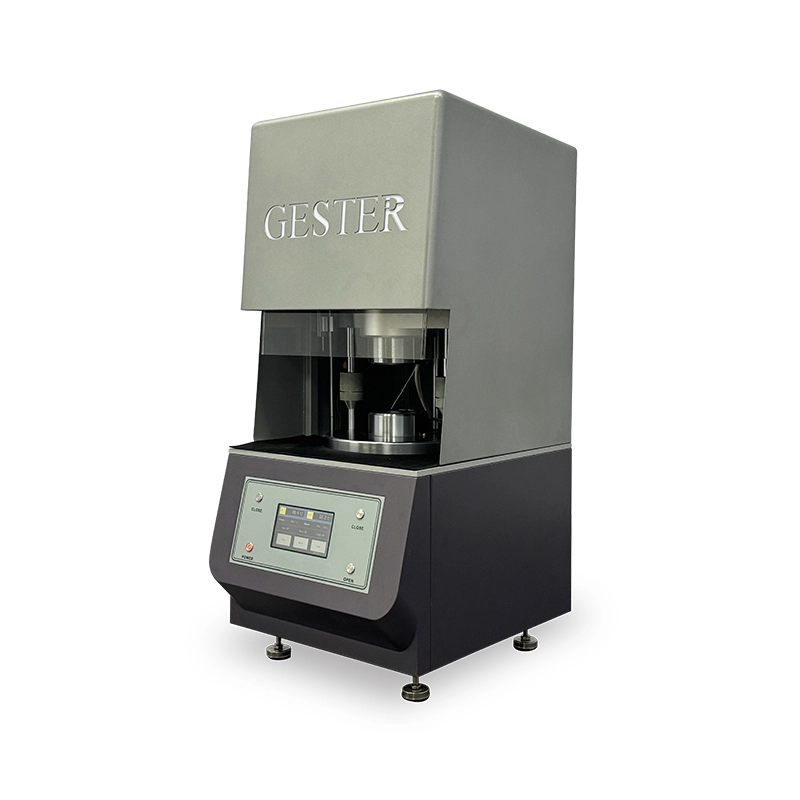

Mdr Moving Die Rheometer GT-KR01
Brief Introduction of the product
Application
It is specifically designed to determine the rheological properties of rubber compounds during the curing process.
Moving Die Rheometer For Rubber Compound Testing With Adjustable Oscillation Amplitude is used for determinating rubber's viscosity and vulcanization index.Samplein a certain temperatureand pressure, the rotor to a certain degree of rotation torque on the sample to a certain degree of shear stress, measure out the rubber anti-shear torque. It's a indispensable instrument of reclaimed rubber, rubber, wire and cable industry.
Feature
Equipped with advanced rheometer software, the moving die rheometer is specifically designed to analyze the curing characteristics of rubber compounds, including scorch time, cure time, cure rate, viscoelasticity, and cure plateau. This essential instrument serves as a significant tool for R&D and quality assurance.
Standards
ISO 6502-3-2018, ASTM D5289-2017, GB/T 16584-1996
Model | GT-KR01 |
Die configuration | Unsealed |
Temp. control | Computer operation, PID.SSR control |
Temp. range | RT+10℃~200℃ |
Temp. display resolution | 0.1℃ |
Temp. control stability | ±0.1℃ |
Temp. accuracy | ±0.3℃ |
Temp. recovery time | ≤45sec |
Heating time | Ambient temp. to 190℃ < 6 min |
Torque range | Elasticity S’: 1 to 200 lb-in |
Torque resolution | 0.01 |
Torque unit | dN-m, kgf-cm, lbf-in |
Oscillation amplitude | ±0.5°, ±1°, ±2°, ±3° [Select one, the default value is ±1°] |
Oscillation frequency | 100CPM (1.67Hz±0.01Hz) |
Motor | Servo Motor |
Communication interface | RS232 |
Compressed air | 4 kg/c㎡ (0.4 MPa) (prepared by customer） |
Power | 1∮ AC 220V 50/60Hz 800W |
