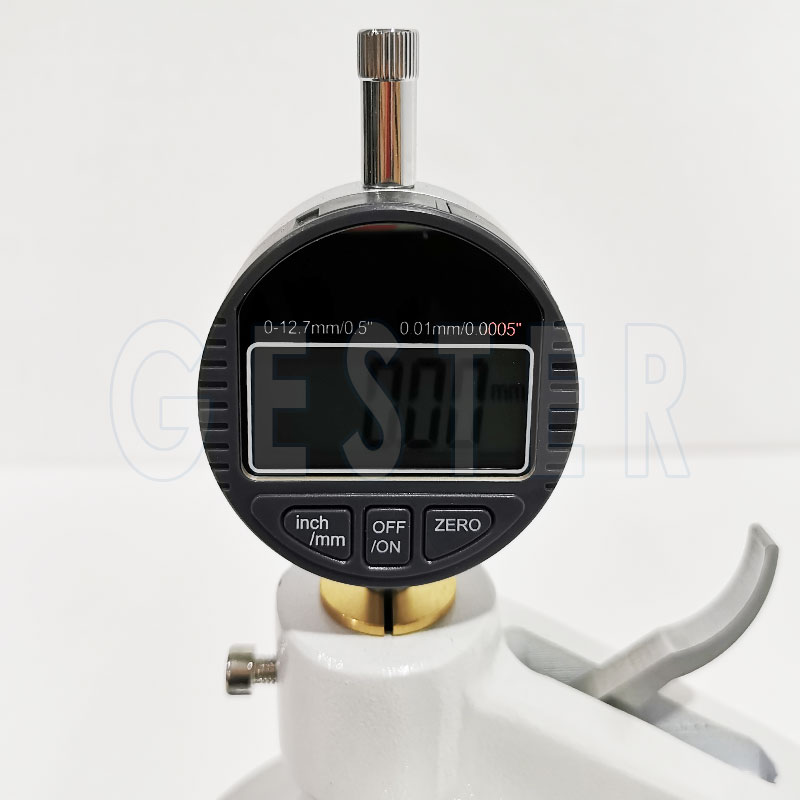

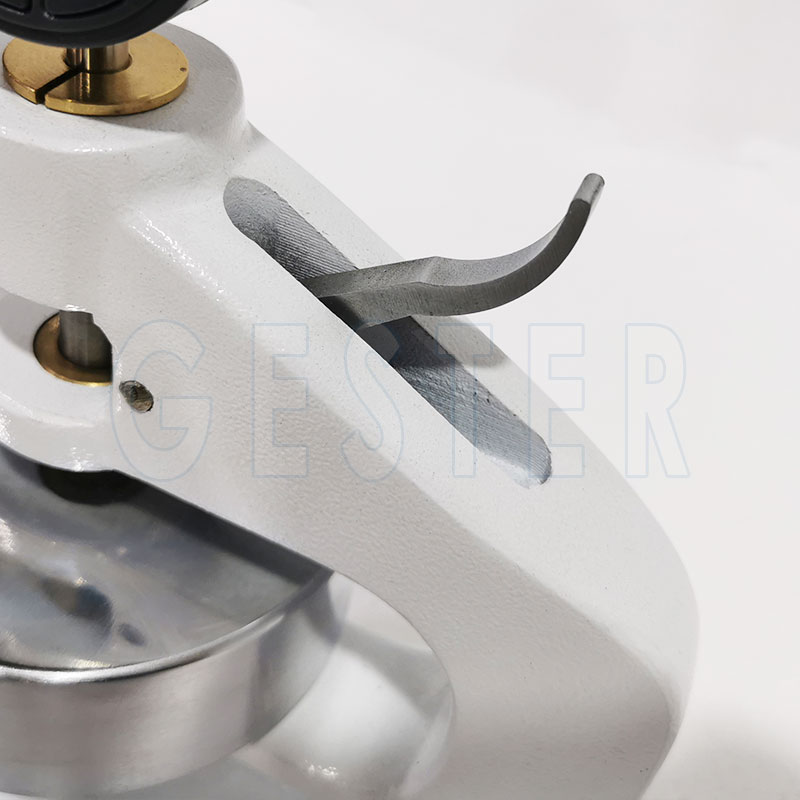

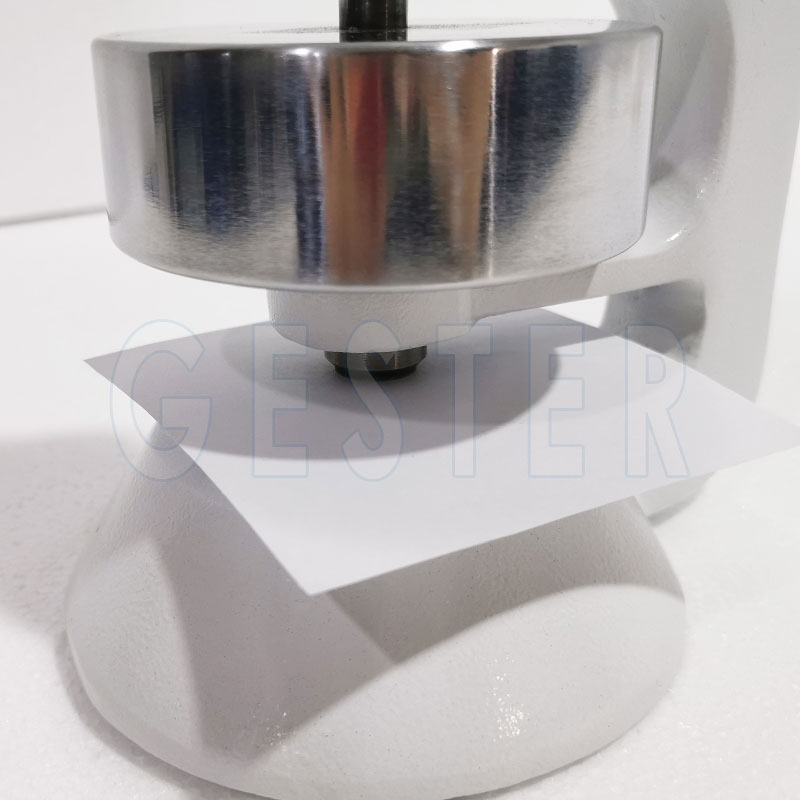

Measuring Paper Thickness Tester GT-N19A
Application
The Measuring Paper Thickness Tester GT-N19A is to measure the thickness of paper and cardboard. This Paper thickness gauge is widely used in paper, double tape paper, coated paper, card paper, coated paper, white board paper, special paper, kraft paper, ash board paper and other sheet materials.
Standards
GB/T 451.3, QB/T 1035, QB/T 1055 , ISO 438 ,ISO 534 , TAPPI T411
Key Specification
Model | GT-N19A-1 | GT-N19A-2 |
Measuring range | 0-4mm | |
Accuracy | 0.01mm | 0.001mm |
Indication error | 0.05% | |
Contact area | 200±5 mm² | |
Contact pressure | 100±5kpa | |
Dimension(L×W×H, mm) | 100×150×200 | |
Weight | About 4kg | |
