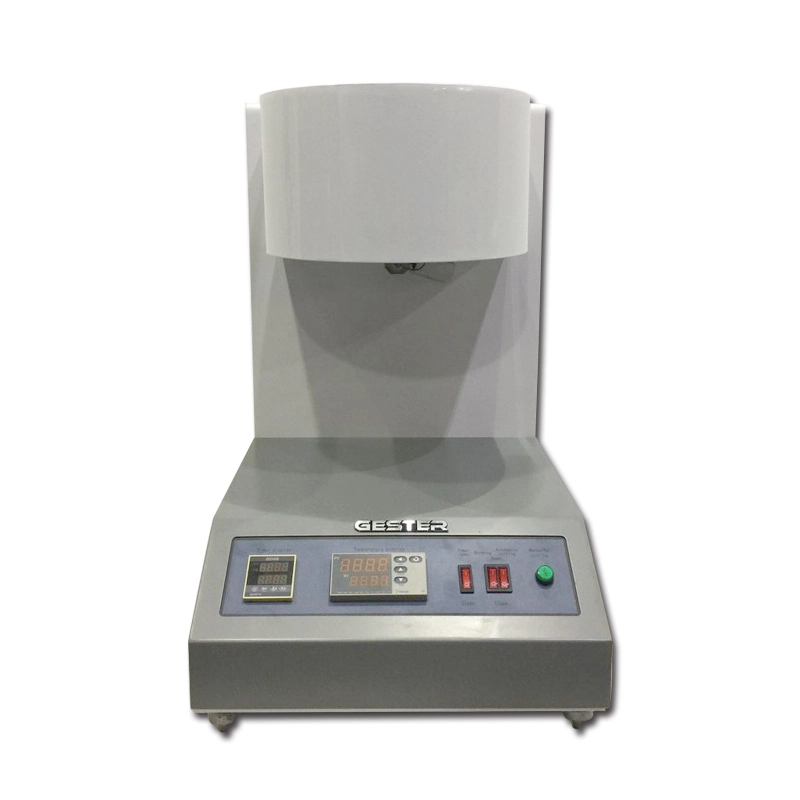

Melt Flow Index Tester GT-KC67
Melt Flow Index Tester GT-KC67
Application
Melt Flow Tester is used to determine the melt flow rate of various polymers in the viscous flow state, it is applicable to both higher melt temperature of polycarbonate, polyaromatic alum, fluorine plastics. It is also suitable for polyethylene, polystyrene, resin and other plastics with lower melting temperature.
This melt flow index machine adopts new generational manual smart instrument and on-off time relay output control, the period of constant temperature of instrument is short and overshoot is minimum. The part of temperature control adopts molding temperature control unit table to make the precision of temperature control and the stability of product get the effective guarantee. To make it be convenient for user, this instrument integrates the two cropping methods of time controlled and manual operation as one(cropping interval and the cropping time can be set randomly).
Melt Flow Index
This Melt Flow Tester is the Taiwan model, with high product intelligence and high degree automatic, broad applicable range, fast raising temperature speed, high product precision,reliable and stable performance, it is the ideal test and teaching instrument for the plastic raw materials and plastic products manufacturing enterprises, quality supervision, inspection and institutes, universities and colleges, etc.
Standard
GB/T 3682 ISO1133, ASTM D1238
Melt Flow Index Machine Key Specification
|
Model |
GT-KC67 |
|
Testing range |
0.1-400.00g/10min (MFR)
|
|
Temp. range |
Room temp. -450℃ |
|
Temp. Control precision |
±0.2℃ |
|
Timing precision |
1S or 0.01S, can be adjusted |
|
Timing range |
1-9999S or 0.01-99.99S, can be adjusted |
|
Load |
(GB/ISO)0.325,1.2,2.16,3.8,5,10,12.5,21.6 (KG) |
|
Cut material method |
Manual, time control |
|
The inner diameter of the barrel |
9.550mm±0.025mm |
|
Length of charging barrel |
160mm |
|
Die |
Tungsten carbide material length: 8.000mm±0.025mm inner diameter: 2.095mm±0.005mm |
|
Power Supply |
1∮AC 220V 50/60HZ |
|
Dimensions( L x W x H ) |
400mm×500mm×640mm |
|
Weight |
60Kg |
