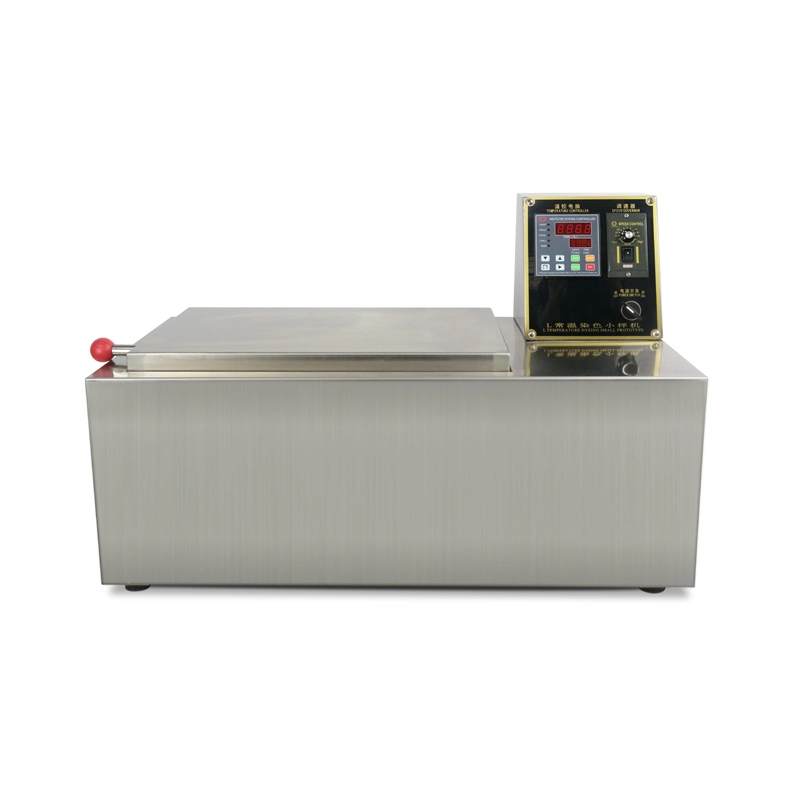

Normal Temperature Oscillating Dyeing Machine GT-D18
Application
This machine apply for all kinds of fabrics sample dyeing with normal temperature, washing, fastness test, etc. It can simulate actual produce condition exactly, meeting require effectively. The operation mode of this machine is oscillation style, can add salt, alkali and other aids while dyeing process.
Feature
- 1.Control circuit apparatus with excellent parts, stable performance, long service life.
- 2.Machine use SUS304 high-quality stainless steel, anti-staining and strong, beautiful and durable.
3.Equipped with PT100 temperature probe, temperature measurement, high precision, long service life.
Product Parameters
Key Specification
Model | GT-D18A | GT-D18B |
Beaker Numbers | 12 | 24 |
Beaker Volume | 250ml | |
Heating Mode | Electric heating | |
Heating Medium | Water | |
Heating Power | 3KW | 6KW |
Temperature Range | RT- 99℃ | |
Thermostat Timer | 0-99min | |
Liquor Ratio | 1:5-1:20 | |
Oscillating Speed | 50-200cpm | |
Oscillating Range | 40±3mm | |
Power Supply | 1∮AC 220V 50/60HZ | |
Dimensions(L×W×H) | 880×420×330mm | 1030×560×330mm |
Weight | 30 kg | 50kg |
Accessories
Standard accessories | 1set | Glass Beakers |
Optional accessories | 1set | Stainless Steel Beakers |
