Packaging Clamping Force Testing Machine GT-N55A
Packaging Clamping Force Testing Machine GT-N55
Application
It is used to simulate the impact of the clamping force of the two clamping plates on the packages and goods when loading and unloading the packages, and to evaluate the clamping strength of the packages; it is mainly used to test the deformation of the packages when they are subjected to the horizontal pressure in the process of transportation and storage as well as the protection ability of the packages to the inner packages, so as to improve the package design.
Standards
EN ISO 16047-2005 fasteners / clamping torque force test
QMZ - J81.003-2012 product packaging evaluation method
QMZ - J81.006-2013 experimental evaluation method and standard

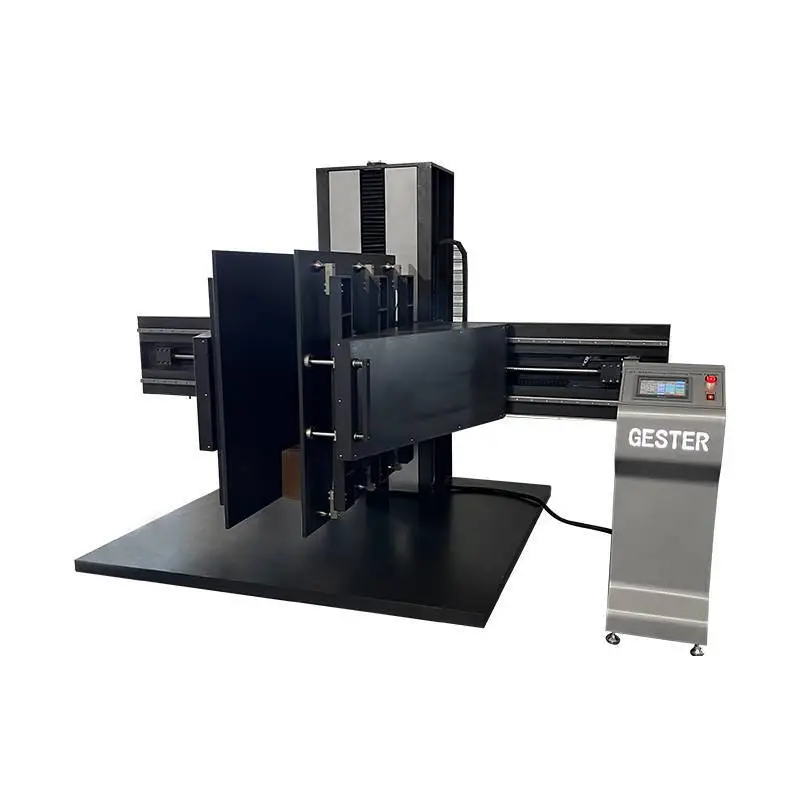

Major Part of Packaging Clamping Force Testing Machine
1.Column: Adopt 4 columns structure, high strength of structure, non-defrmation, ensure the stability during the testing.
2.Clamp fixation splint: Use high strength I-beam Steel, 3pcs for each side of the fixation splint, make sure the strength balance.
3.Triangle bracket: To fix the crossbeams on the clamp fixation splints.
4.Controlling Box: Equipped with 7 inch touch screen , easily to operate.
5.Right Clamping plate: Made of high strength aluminum, ensure two plates are parallel to each other and the uniform strength.
6.Ball screw: Positive and negative screw structure, make sure the left and right side working synchronously, no gap, ensure the displacement accuracy during the test.
7.Up and down crossbeam: Use #45 steel plate and linear slide rail, make sure no gap during the sliding and no shape changes.
8.Force sensor: 6 sets of force sensor, ensure the power deviation during test within 1%, and the force accuracy of 5 points test.
9.Baseplate: Welded by #45 steel, high strength without shape changes.
Packaging Clamping Force Testing Machine Specification
Model | GT-N55 |
Max. Capacity | 400~3000lb |
Max. Specimen weight | 600kg(can be customized) |
Power Controller | Window 7, RS-232port |
Sensor | 6 units |
Motor | Servo motor, DC variable speed drive system, high-precision mechanical ball screw rod |
Force Unit | Kgf/N/Lbf |
Sensor Accuracy | 1/250,000 |
Load precision | In±0.25% |
Smoothness | within±2.5mm |
Sensor resolution | 1/250,000 |
Clamping Plate Size | Height 48 inch, depth 48 inch |
Clamp Plate Adjustable height | 0-1,000mm |
Clamp Plate Adjustable width | 200-2000mm |
Base plate size | 2200×2100mm |
Test speed | 0.25~2.5mm/sec (according to ISTA 6 -SAMS CLUB) |
Software | Independent research and development system |
Data display | Load, displacement, speed, loading rate, elapsed time |
Function | The clamp can be up and down |
Clamping plate requirements | Make the two clamping boards flat and non-deform under work condition (2000 pounds) and make clamping board’ parallel and clamping board and land vertical. Clamping board is thicker than 25mm. |
Safety features | 1) E-Stop; 2)Over-load protection; 3)Upper and lower limit switches; 4) Load sensor with automatic retreat |
Improve displacement and velocity | The lifting speed and displacement computer adjustable 0-1200MM, Improve accuracy of displacement shall prevail the ruler |
The maximum allowable specimen height | 2.2m,adding displacement height 1.2m,equipment overall height about 2.8m |
Packing dimension | 11.2CBM |
Gross weight | 1000 kg |
Power supply | Three-phase, 380±10%, 50/60HZ (Can be appointed) |
product details
