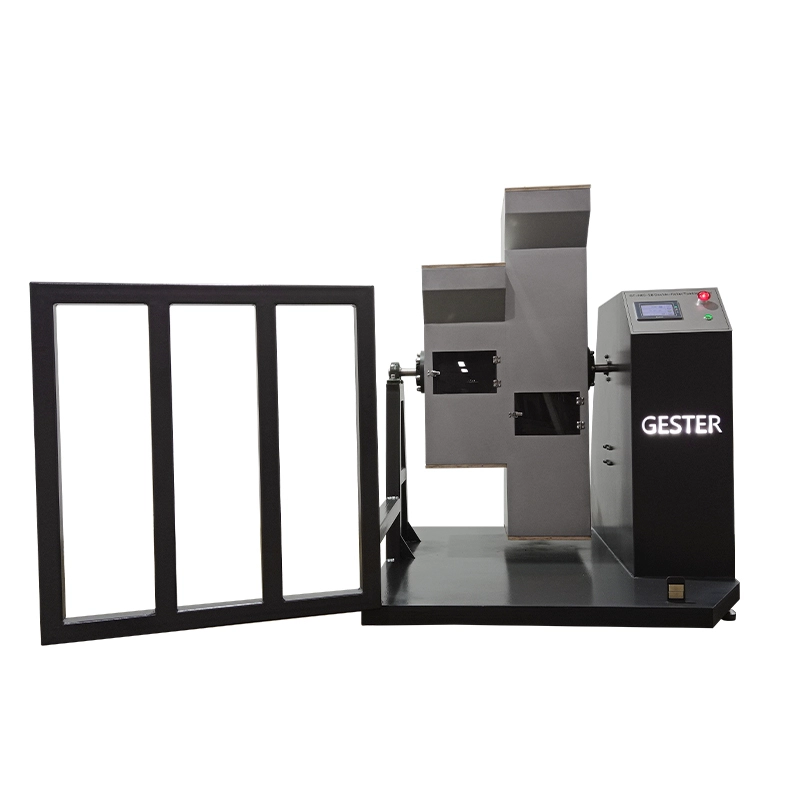

Double-Roller Tumble Test Machine GT-N03-2
Double-Roller Tumble Test Machine GT-N03-2
Application
This roller tumble test machine is employed to assess the drop resistance of plugs and sockets, non-detachable connectors, and plug ballasts.
Principle
A motor drives the rotation of a drum, causing the sample to repeatedly fall from a set height onto a designated surface.
Features
1. The electrical control cabinet incorporates a roller mechanism, allowing the test count to be preset.
2. The Double-Roller Tumble Tester automatically halts upon reaching the predetermined number of test cycles.
Key Specification
|
Model |
GT-N03-2B |
GT-N03-2C |
||
|
Control Mode |
Touch screen control |
|||
|
Drive Mode |
Servo motor drive |
|||
|
Roller Material |
The side is made of 1.5mm high-quality steel plate, the upper and lower side are made from 10-19mm wood plates and it have 3mm steel plates padded on. Inclined sliding surface is a plastic laminate with a triangular rubber pad. |
|||
|
Working Positions |
2 working positions (Double- Roller) |
|||
|
Drop Height |
500mm |
1000mm |
1000mm |
1000mm |
|
Rotational Speed |
5 rpm |
|||
|
Drop Rate |
10 Times/min |
|||
|
Test Times |
0~9999 times, can be set |
|||
|
Test Sample |
Plugs, sockets and other electrical accessories |
|||
|
Power Supply |
AC220V±10%/50-60Hz |
|||
|
Dimensions |
Approx. 1100×1200×1300(mm) |
|||
|
Weight |
180kg |
|||
