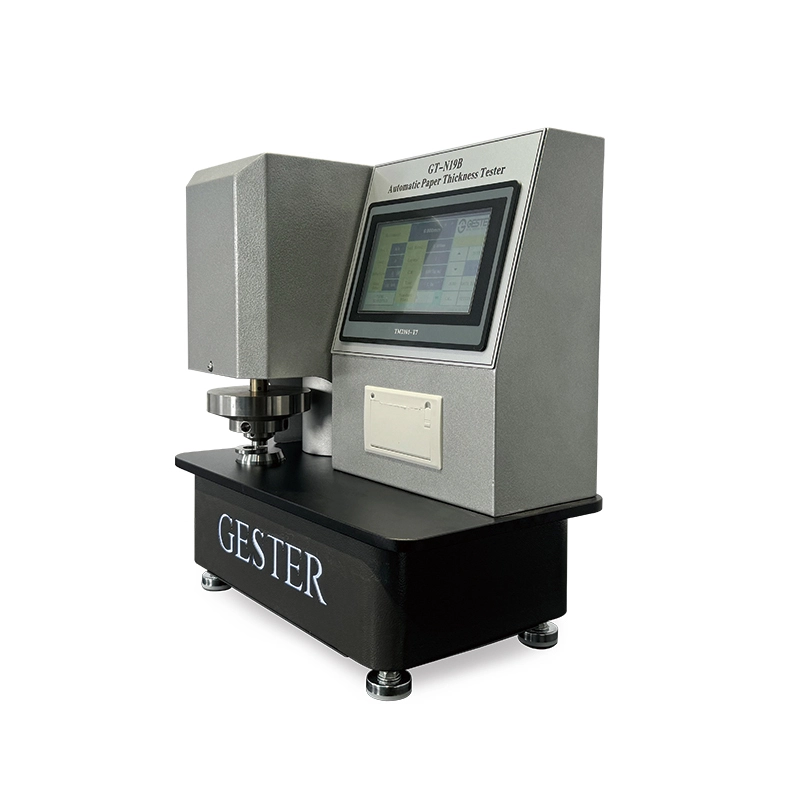

ISO 534 Paper Thickness Gauge GT-N19B
ISO 534 Paper Thickness Gauge GT-N19B
Product Overview
The GT-N19B Paper Thickness Gauge, compliant with ISO 534 standards, is designed to measure the thickness of paper and various sheet materials. It is suitable for all types of paper.
Features
1. Simple one-key operation for user-friendly testing.
2. Adjustable test head speed for both rising and descending movements.
3. Equipped with a power-off data storage function, ensuring data retention after power loss and allowing continuation of tests.
4. Offers automated measurement, statistical analysis, test result printing, and data storage capabilities.
Standards
GB/T 451.3, QB/T 1035, QB/T 1055, GB/T 24328.2, ISO 534, ISO 438, TAPPI T411
Key Specification
Model | GT-N19B |
Display | Touch screen display |
Measuring range | 0-5mm |
Resolution | 0.001mm |
Indication error | ±0.0025mm or±0.5% |
Indication volatility | ≤0.0025mmor≤0.5% |
Parallelism between measure surfaces | ≤0.002mm |
Contact Area | 200±5 mm² |
Contact Pressure | 100±5kpa |
Measuring Head Descending Speed | 0.5~10mm/s, can be adjustable |
Printer | Thermal printer |
Dimension | 410×225×450 (L×W×H, mm) |
Weight | About 25kg |
