Protective clothing Electrostatic Charge Attenuation Tester

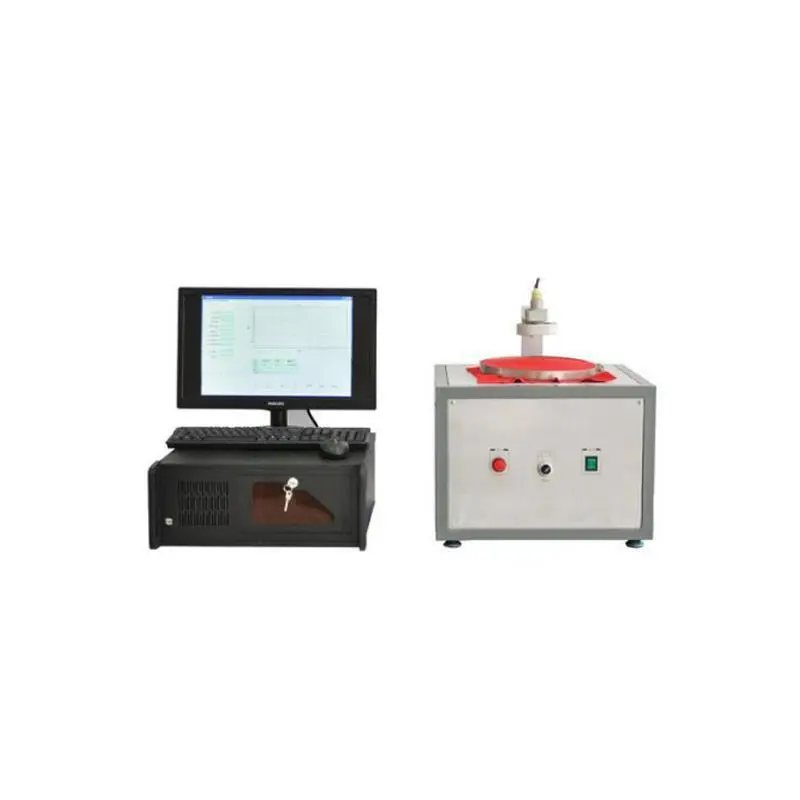

Electrostatic Charge Attenuation Tester
Product Description
The Electrostatic Charge Attenuation Tester uses the induction effect of step voltage to charge the test specimen, and measure the half-life and shielding coefficient of the specimen in a non-contact state.
Electrostatic Charge Attenuation Tester Standards:
T/CNTAC62-2020 Protective clothing - Electrostatic performance test - charge decay method
EN 1149-3 Protective clothing-Electrostatic properties-Part 3: Test methods for measurement of charge decay-test method 2
Product Specifications
Our specialists can help you find the perfect Electrostatic Attenuation Tester for you.
| Model | GT-RC10 |
| Step Voltage Generator | Outputs a step voltage of (1200±50) V |
| Decay Time | Adjustable range of 0–180 seconds, with an error of ±0.01 seconds. |
| Signal Acquisition Sensor | A metal disc with φ(30±1) mm, surrounded by a grounded protection ring; the probe is connected to an amplifier. The distance between the sensor surface and the top of the support ring is (50±1) mm |
| Electrode | A stainless steel disc with a diameter of φ(70±1) mm, fixed on an insulating bracket |
| Support Ring | A metal ring with an inner diameter of φ(100±1) mm; the distance between the top of the support ring and the electrode surface is (4.0±1) mm, coaxial with the electrode |
| Specimen Clamping Ring | Composed of an inner ring and an outer ring, with the specimen placed between them. The outer diameter of the inner ring is (250±1) mm, and the inner diameter is (220±1) mm, grounded and coaxial with the electrode and support ring. The outer ring is made of elastic (bendable) material for easy specimen clamping |
| Decay Ratio | Adjustable range of 0.1%–100%. |
| Seat Construction | 300 mm × 300 mm |
| Power Supply | AC220V; 50Hz |
Products Advantages
Voltage Application Device: Capable of generating a step voltage of (1200±50) V within 30 μs.
Signal Acquisition Sensor: Addresses zero drift and external interference in electrostatic potential, optimizes signal processing, and improves detection accuracy.
Computer Control: Real-time display of voltage-time curves, voltage half-life, and shielding coefficient of the specimen; data storage, historical data query, and curve printing functions.
