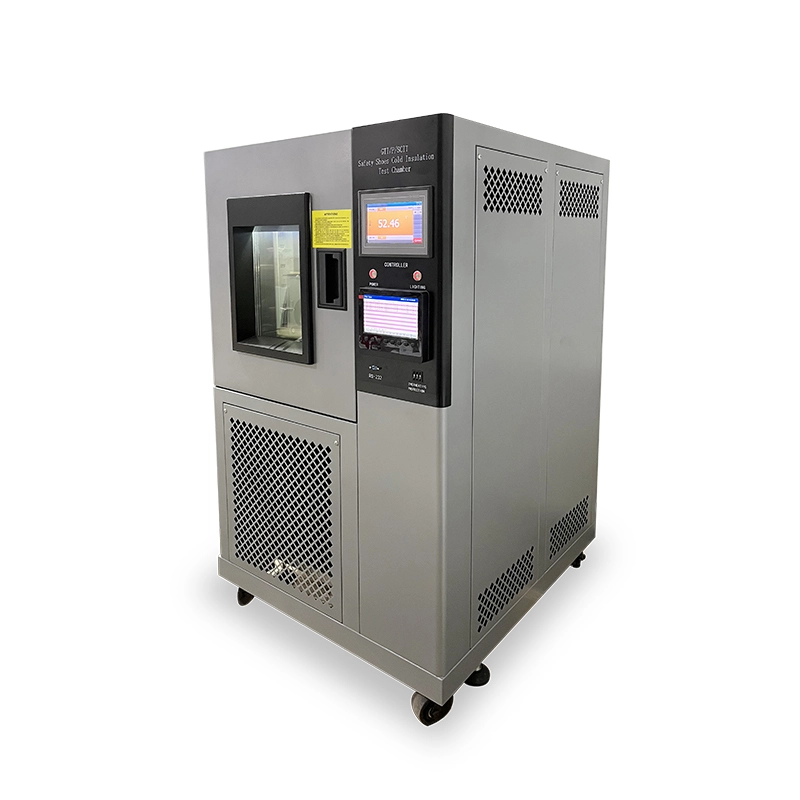

Safety Shoes Cold Insulation Test Chamber GT-KB25
Application
To determine the Cold insulation test for safety shoes under low-temperature.
Test Method
- 1.Adjust the temperature of the cold box to (–17 ± 2) ℃ and maintain this temperature during the test.
- 2.Place the test piece on the laboratory jack inside the cold box.
- 3.Use the temperature measuring device connected to the temperature probe to measure the temperature on the insole as a function of time, recording the temperature decrease graphically.
- 4.Calculate, to the nearest 0,5°C, the decrease in temperature 30 min after the test piece was placed in the cold box.
Product Parameters
Key Specification
Model | GT-KB25 | |
Low-temperature chamber | Temperature Range | -25 ℃~100℃ |
Temperature accuracy | 0.1 ℃ | |
| Temperature resolution | 0.1 ℃ | |
Temperature measuring device for inside shoes | Temperature probe | Soldered to a copper disc 2mm thick and 15mm diameter, accuracy ±0.5°C |
Heat transfer medium | ￠5 mm Steel balls, total mass(4 000±40) g | |
Copperplate size(L×W×T) | 350×150×5mm | |
Power supply | 1∮AC 220V 50/60HZ | |
Dimensions (W×D×H) | 550×790×1080mm | |
Weight | 100kg | |
Standards | ISO 20344-2021 section 5.16 GB/T 20991 section 5.13 AS/NZS 2210.2 section 5.13 | |
Standard Accessory | Temperature probe 1 set ￠5 mm Steel balls 4kg Power line 1pcs | |
