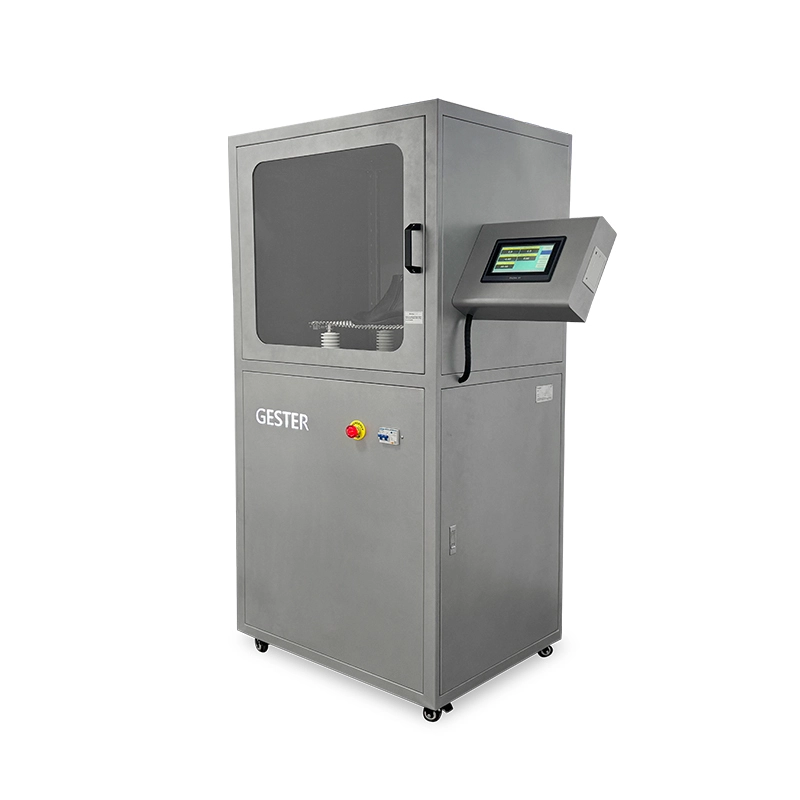

Shoe Dielectric Resistance Tester GT-KB42
Brief Introduction of the product
Application
Shoe Dielectric Resistance Tester is designed to determine dielectric of various insulation shoes. The current leakage and voltage withstand are measured by applying a voltage at a given frequency to the specimen.
Standards
ANS-Z41 section 4, CSA-Z195-14 section 6.5 ,
AS/NZS 2210.2 section 5.11
GB12011, GB/T20991 section 5.11,
ASTM F2412 section 9, ASTM F2413 section 5.5，
NOM-113-STPS-2009 Section 8.5
Product Parameter
Key Specification
Model | GT-KB42A | GT-KB42B |
Voltage increasing rate | Increasing 1kv/sec,when reaching 75% of set voltage, the speed will switch to 100 v/sec | |
Output voltage range | AC: 0~20KV | AC: 0~30KV |
Leakage current range | AC: 20mA | |
Transformer capacity | 500VA | 1000VA |
Test time | 0.0s～99s | |
Test space(L*D*H) | 58 x 38 x 1350px | |
Power supply | 1∮AC 220V 50/60HZ | |
Dimensions (W×D×H） | 82cm x 60cm x 76cm | |
Weight(Approx) | 160kg | |
Accessories
Standards Accessories | 1pack | ￠3.5mm stainless steel ball |
1set | 35KV insulated gloves | |
1㎡ | 35KV Insulated pad | |
1pc | Power line |
