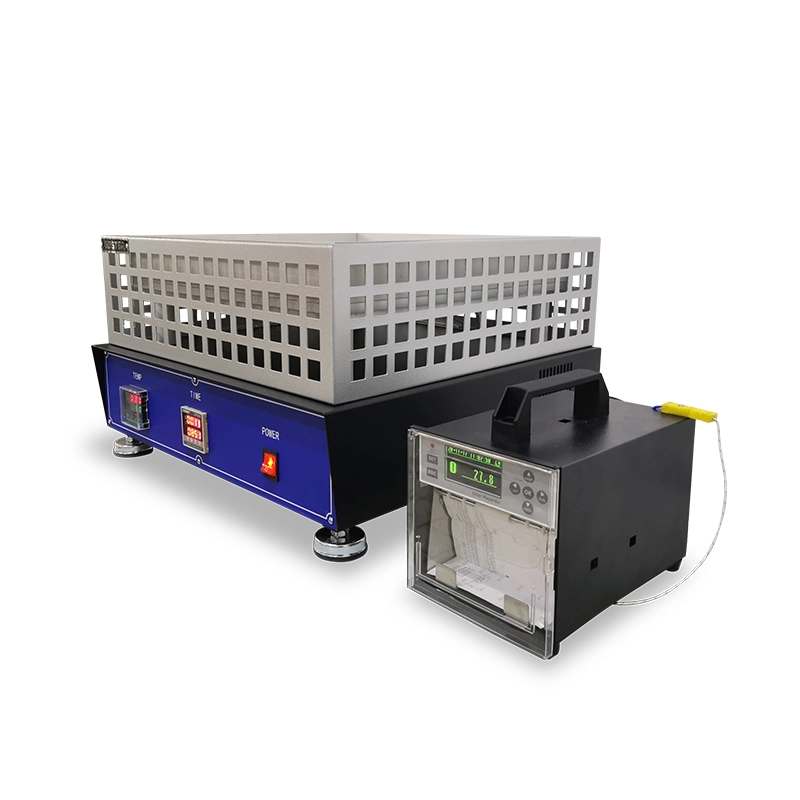

Shoe Material Heat Insulation Tester GT-KB47
Application
This Shoes Heat Insulation Tester is used to determine the heat insulation performance for the whole shoe. Place the specimen (a whole shoe) on the hotplate with a specified temperature for a certain period to examine the increase of temperature inside of the shoe.
Standards
-
ISO 20344 -2021 section 5.15
GB/T 20991 section 5.12
AS/NZS 2210.2 section 5.12
Product Parameters
Key Specification
Sand Bath Size | (40±2) ×(40±2)cm ,and the height at least 125px |
Sand Granular Size | 0.3~1.0mm |
Hotplate Temperature Range | RT~ 250° ± 5° |
Temperature probe | Soldered to a copper disc 2mm thick and 15mm dia., accuracy ±0.5°C |
Heat transfer medium | ￠5 mm Steel balls, total mass(4 000±40) g |
Heating Power | 2500 ± 250W and over |
Power supply | 1∮AC 220V 50/60HZ |
Dimensions (W×D×H) | 36×24×1175px |
Weight | 40kg |
Standard Accessories
Standards accessories | 1set | Temperature probe |
4kg | ￠5 mm Steel balls | |
1pc | Power line |
