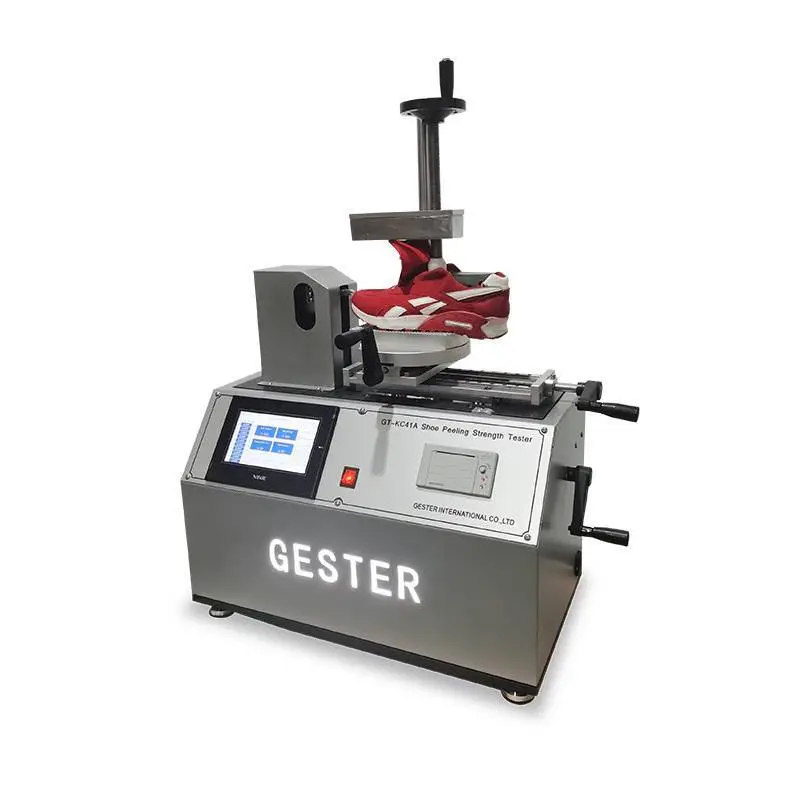

Shoe peeling strength testing machine GT-KC41A
5.0
Model:
GT-KC41A
MOQ:
1 Piece
Place of Origin:
Quanzhou,China(Mainland)
Brand:
GESTER
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Application
Shoe Peeling Strength Tester: it is determined for testing the peeling strength between sole and upper of a whole shoe or between outsole and medium bottom.
Principle
- Fitting the shoe last to a whole shoe and clamping it on the peeling strength tester, strip off the joint between the sole and upper by peeling knife. The peel force is the measured value when peeling. The peeling strength can be counted as the peeling force and width of cutter point.
Product Parameters
Key Specification
Model | GT-KC41A |
Load range | 100kg |
Peeling cutter`s width | 20±0.2 mm and 10±0.2 mm |
Peeling cutter`s moving down speed | 20±2 mm/min |
Elevating range | 40 mm |
Display method | Touch screen |
Power supply | 1∮AC 220V 50/60HZ |
Dimensions (W×D×H) | 60 x 40 x 85 cm |
Weight | 45 kg |
Standards | GB/T 3903.3 |
Accessories
Standard accessories
| 1pc | 20±0.2 mm Peeling cutter |
1pc | 10±0.2 mm Peeling cutter | |
1Pair | Shoe last(Size 44) | |
1pc | Power line | |
Optional accessories | Shoe last (Size 35, 36, 37, 38, 39, 40, 41, 42, 43, 44) | |
Angle block gauge | ||
