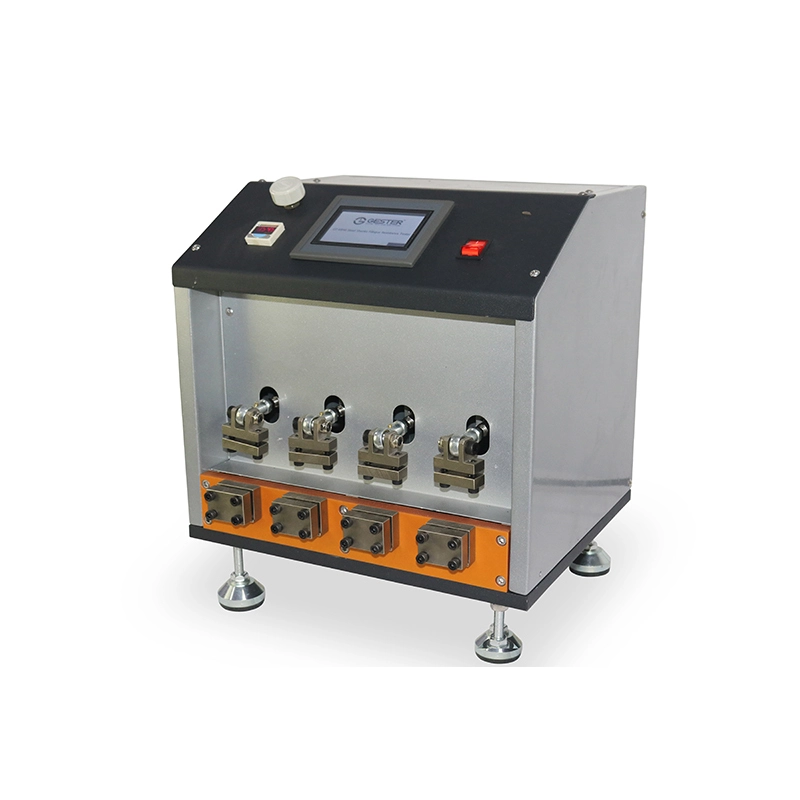

Shoe Steel Shank Fatigue Resistance Tester GT-KB46
Application
To determine fatigue resistance of shoes steel shank.Fix two ends of steel shank by respectively clamps, excert a certain force on upper fixture, flex the shank in frequency of 4 cycles per second and inspect the damage degree of sample after certain times.
Product Parameters
Key Specification
Model | GT-KB46 |
Test position | 4 |
Test speed | 4 r/s |
Hard steel plane height of lower fixture | 32mm±2mm |
Distance between connecting rod of upper fixture and lower fixture | 70mm±2mm |
Circular test load | 49N±2N |
Test clamp force | 4900N.mm±50 N.mm |
Control method | PLC touch screen |
Power supply | 1∮AC 220V 50/60HZ |
Dimensions（W×D×H） | 500 ´ 450 ´ 800 mm |
Weight | 75kg |
Standards | GB/T 3903.35, GB 28011, ISO18895, EN 12958 |
Accessories
Standards accessories | 1pc | Power line |
Optional accessories | Optional | Torque wrench |
Optional | Air compressor |
