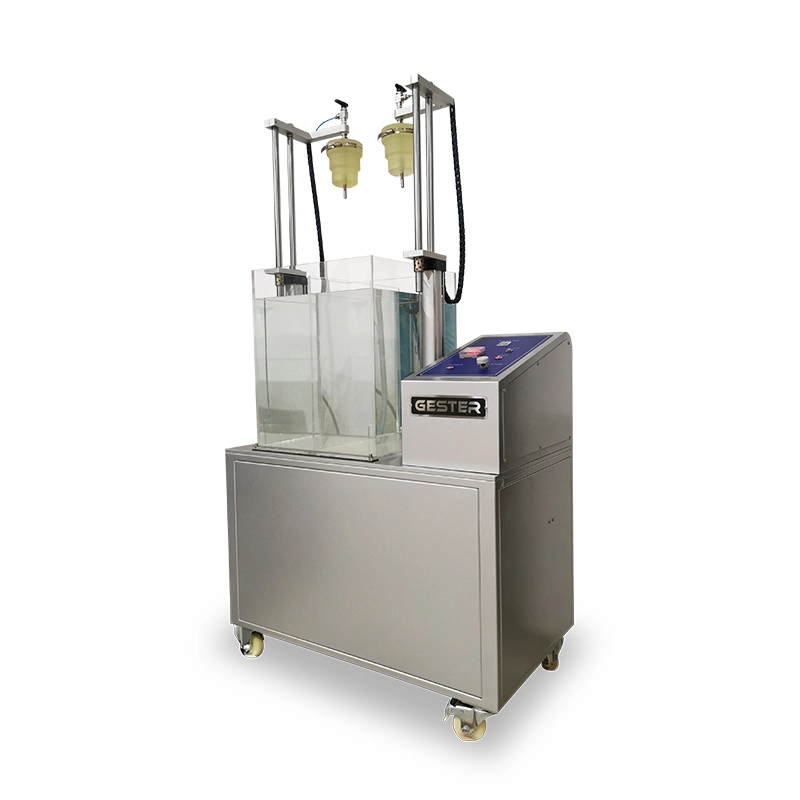

Shoes Lining Seepage Testing Equipment GT-KA15
Application
Shoes lining seepage testing equipment to fast determine the waterproof resistance of rubber shoes and shoe inner liner.
Principle
Using pneumatic fixture and sealing plating parts to put sample into deep water, and full it with constant air pressure. If any seepage, it will produce bubbles and fixture will rise to surface automatically with sample when it reaches set test times. It could be used for production line and detect production completely to control it waterproof.
Product Parameters
Key Specification
Model | GT-KA15 |
Test position | 2 pieces |
Clamp surface circumference | 345.4mm / 298.3mm / 251.2mm |
Clamp lifting range | 320mm |
Air pressure | 0-50KPa or specified |
Timer | LED , 0-99999999 |
Power | 1∮AC 220V 50/60HZ 3A |
Dimensions | 125x55x155 cm |
Weight | 140 kg |
Standards
GB/T 20991 section 5.7, ISO 20344 -2020 section 5.7 AS/NZS 2210.2 section 5.7, ISO 8782-1, HG/T3664 |
Accessories
Standards accessories | Sealing clamp | 1set |
Power line | 1pc | |
Optional accessories | GT-MA12A Air Compressor | |
