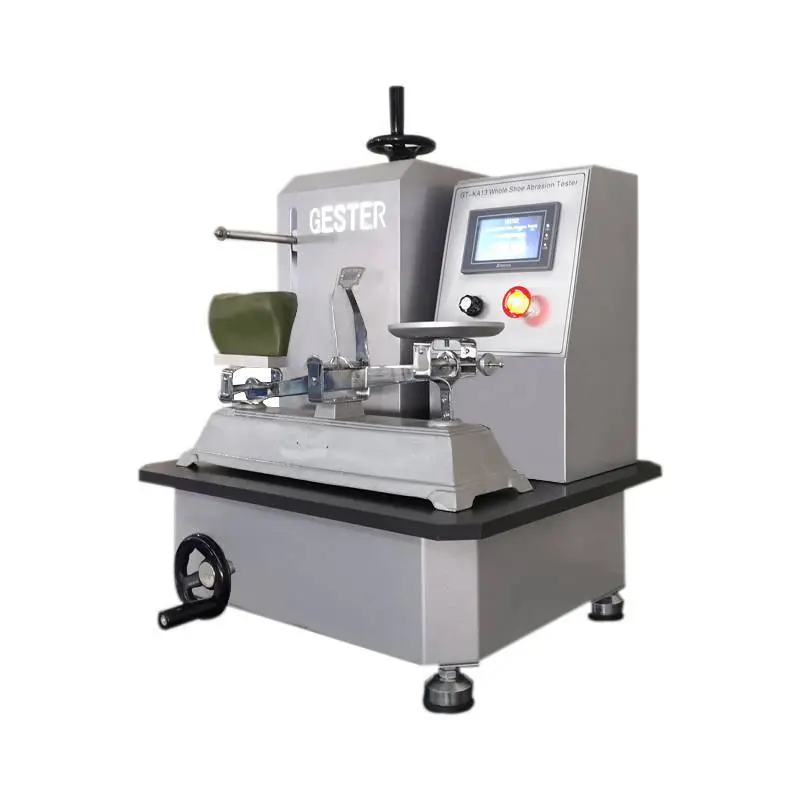

Sole Abrasion Resistance Tester GT-KA13
Application
This tester is used to measure the abrasion resistance of finished shoe sole or molded sole(piece).
Principle
It adopts rotating abrasion wheel vertically pressing on the specimen under a certain load by a certain speed and for a certain period of time in order to measure the length of abrasion track.
Feature
- 1.With a set of accurate weights, to meet different requirements of test load.
- 2.LCD controlled, automatically stop after test finished.
3.Sole Abrasion Resistance Tester Equip with vacuum cleaner and clear wear powder timely.
Product Parameters
Key Specification
Model | GT-KA13 |
Abrasive wheel | Diameter 20±0.1mm, thickness 4±0.1mm |
Rotating speed | 191±5 r/min(100-300r/min adjustable) |
Test time | 20 min adjustable |
Load between abrasive wheel and specimen | 4.9N ( it is adjustable within 19.6 N if special requires) |
Counter | LCD display,0～999,999 |
Power | 1∮AC 220V 50/60HZ 3A |
Dimension (W×D×H) | 500×600×800mm |
Weight | 65 KG |
Standards | GB/T3903.2 |
Accessories
Standards accessories | 1set | Weights |
1pc | Power line | |
Option accessories | Optional | Caliper(accuracy 0.02mm) |
Optional | Balance(2000g, accuracy 5g) |
