Application
Tensile testing machine is applied to the test of mechanical property like tension, compression, bending, shear , tear, peel of materials such as rubber, plastic, aluminum tube, composite materials, waterproof materials, prevention material, yarn, fiber, wire and cable, paper, spring, wood, packaging materials, adhesive tape, etc. And it can also fulfill the multi-closed loop test like constant stress, constant strain, creep, slack, etc. When it installs with special device, it can do other test items like reversion, cupping.
This Universal Testing Machine is suitable for determining the mechanical property and relevant physical parameter when material on the state of tension, compression, bending, shear, tear, peel, puncture, etc. It can do tests like tension, compression, stripping, three-point bending, four-point bending, shear, tearing, puncture of the finished shoes, carton holding pressure, foam cyclic compression, spring tension and compression, and various kinds of dynamic and static cycle test.
Standards | |||
SATRATM5, TM53, TM52, TM51, TM108, TM113, TM117, TM118, TM120, TM123, TM149,TM162, TM401,TM 411,TM 410, ASTM D751/ 2209 / 412 / 624 / D 882 / 5748, FIA 1206, BS5131- 3.7, 5.11, 5.13 , BS 5131-2.6 ISO22650, ISO 19958, ISO 3377-1, ISO 3377-2, ISO 11644, ISO 20866, ISO20867, ISO19957, ISO20874, ISO20344-5.2.4, ISO 20345-5.3.1.2, ISO17698, ISO20875, ISO22777, ISO22776, ISO22654, ISO20863, ISO20876, ISO17695, ISO17697, ISO34-1 ,ISO36, ISO37, ISO 17708, ISO 17696, ISO17706 AS/NZS 2210.2-5.2.4 DIN 53331, GB/T3903.8,GB/T3903.9, GB/T3903.14, GB/T3903.20, GB/T3903.21, GB/T3903.22, GB/T 3903.23, GB/T 3903.24, GB/T 3903.25, GB/T 3903.26, GB/T 3903.29, GB/T3903.32, GB/T 3903.39, GB/T 3903.40, GB/T 3903.43, GB/T 4689.20,GB/T20991-5.2.4, GB 21148-5.3.1.2, GB/T 17928, GB/T529, GB/T528, GB/T532, GB/T21396 QB/T11413 ,QB/T 2711 ,QB/T2675, QB/T2883, QB/T4118,QB/T4198 HG/T 2726, HG/T 2877, HG/T4805 | |||
Main Part | |||

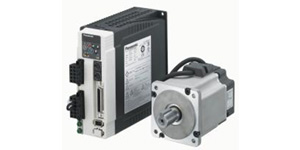

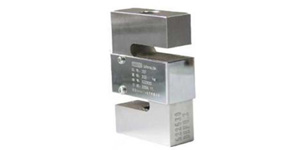

One TRANSCELL brand load cell | One TRANSCELL brand load cell | A set of servo motor and servo system respectively | A set of professional test sample software of Windows XP platform |
Tension Testing MachineKey Specification | |||
Model | GT-UA03A | GT-UA03B | |
Capacity | 50N, 100N, 200N, 500N, 1KN, 2KN, 2.5KN, 5KN | ||
Display | Computer display | ||
Force Resolution | 1/100,000 | ||
Force Accuracy | ≤+/-0.5% | ||
Stroke Range | 1000mm | ||
Stroke Resolution | 0.001mm | ||
Extensometer | No | Yes | |
Extensometer Resolution | No | 0.001mm | |
Test Speed | 0.001-1000mm/mincan set on display, with up & down fast adjustment button of grips | ||
Force Unit Switch | Kgf, N, Ibf, g, ton, Mpa | ||
Stop Mode | Overload stop, emergency stop button. specimen damage automatic stop | ||

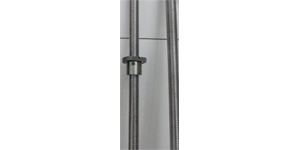

Machine Drive | Servo motor drive, synchronous wheel and precision ball screwdrive | ||
Power | 120W | ||
Power Supply | AC 220V 50-60HZ 10A | ||
Dimensions | 47x38x177cm | 47x38x186cm | |
Weight | 60kg | 70kg |
