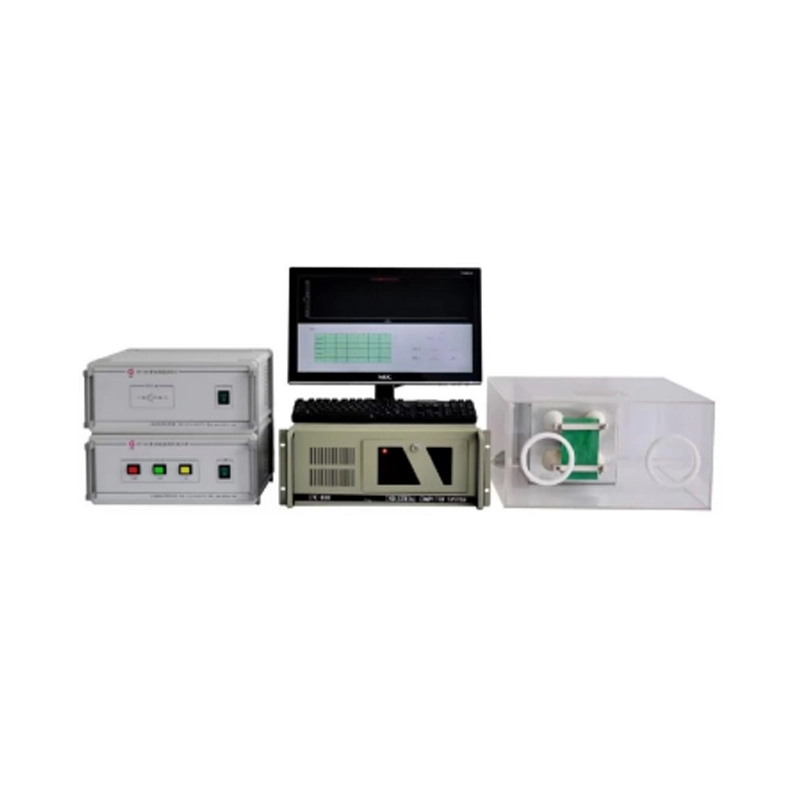

Textile Static Decay Tester GT-C56
Textile Static Decay Tester GT-C56
Electrostatic decay performance tester is used to test textile clothing, medical protective clothing materials, nonwovens, composite materials, film materials and other specimens in the application of ± 5000V voltage, the determination of the specimen from the peak voltage attenuation to 10% of the tatic decay time.
Standards
GB/T 33728-2017 , IST40.2(0), GJB 2605-1996, YY/T 0867-2011, YY/T 1642-2019, YY/T 1633-2019
Feature
This Static Decay Analyzer in the specified laboratory environment conditions, applicable to the determination of medical protective clothing and heat-sealable flexible anti-static barrier material static decay performance, given the test material of the high-voltage electric field, followed by the measurement of the charge decay time.
As the Static Decay Tester uses microelectronic high-speed test control technology combined with high-tech indicators of the program, accurate and reliable testing, easy and safe operation, equipped with a printer; screen intuitive display of the specimen given the voltage and attenuation time.
Microcomputer control, intelligent testing, a variety of indicators and parameters interface intuitive, at a glance, simple to use.
The shield effectively protects the specimen from the operator's influence on the temperature and humidity of the specimen, to protect the consistency of the test results.
Textile Static Decay Tester GT-C56
|
Model |
GT-C56 |
|
Voltage control module |
Electrostatic high voltage source: ±5500V; The vacuum high-voltage relay quickly switches the positive and negative voltages |
|
Attenuation voltage random test module |
Voltage measurement range: 0 ~±5000V, Error ≤±1% |
|
Electrostatic decay time test module |
Discharge time and attenuation time range: 0 ~ 99 .99 s/m/h Accuracy: ±0.01s, Error ≤±1% |
|
Electrostatic sensor |
Rotary blade electrostatic sensor |
